U3142X1 2-Port USB-C 3.2 Gen 2 PCIe Expansion Card

SKU: U3142CX1
  • 2-port USB Type-C

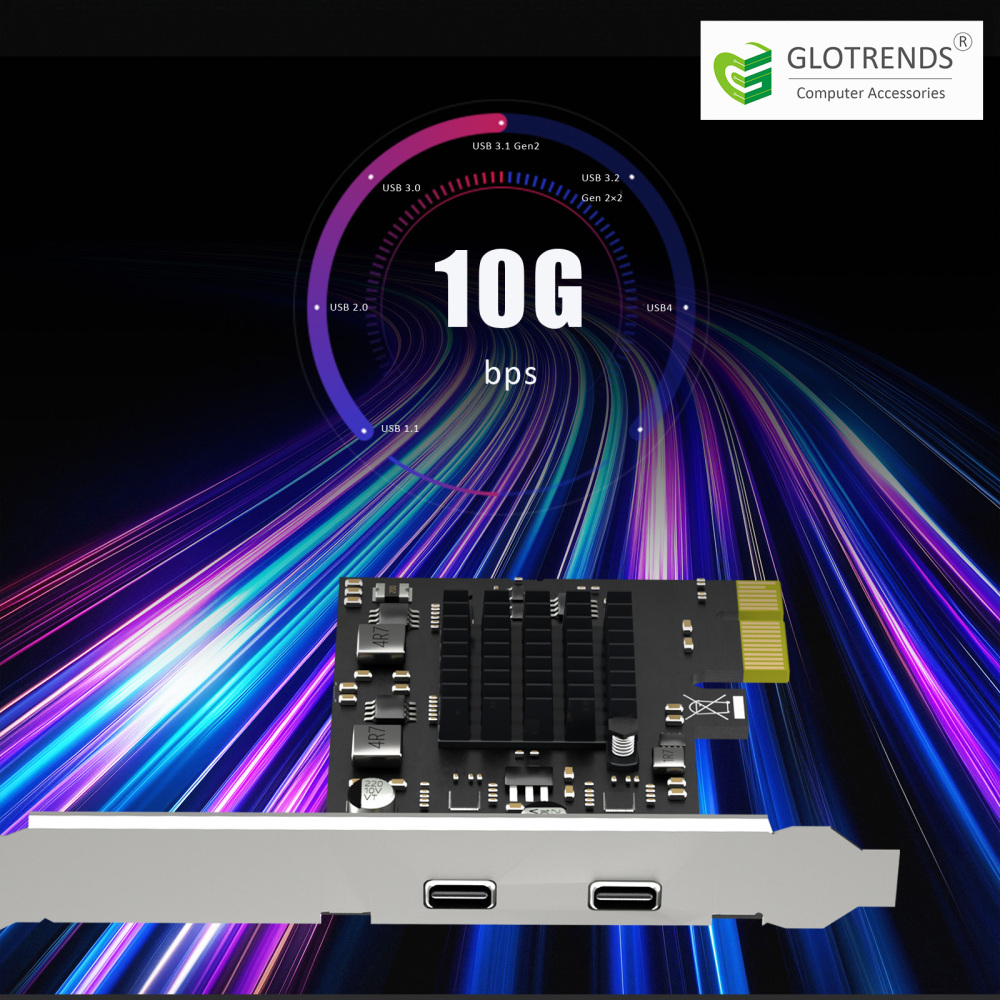

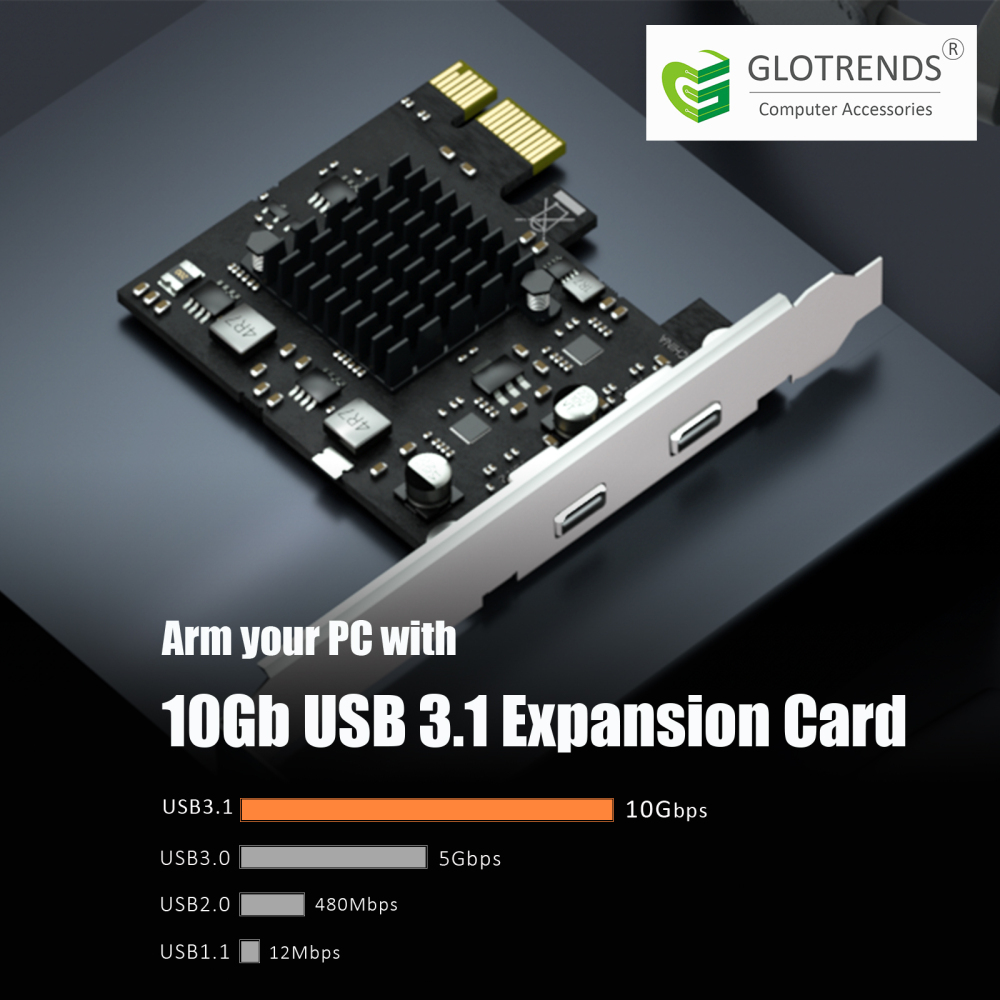

  • 10Gbps Speed (USB 3.1 Gen 2)
  •  5V/2A power output each port
  • ASM 3142 controller
0.0 (0 Reviews)
3 Sold
$32.99 $29.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
1/1
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142CX1 2-Port 10Gb USB 3.1 Gen2 Type-C to PCIE X1 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket

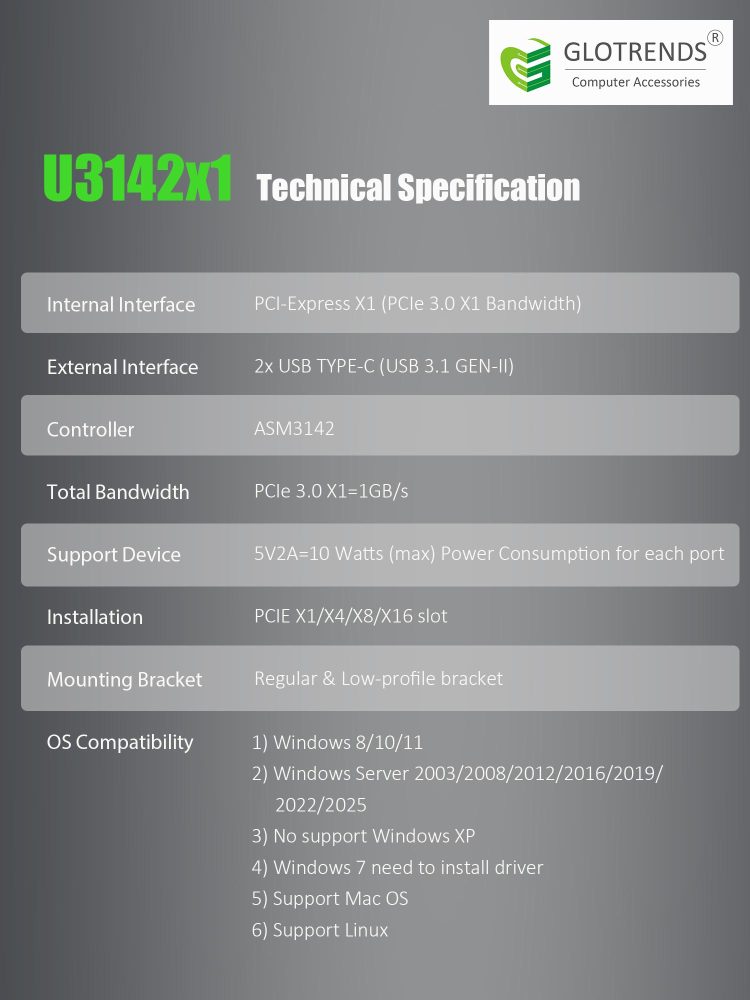

  • Description
Internal Interface PCI-Express X1 (PCIe 3.0 X1 Bandwidth)
External Interface 2x 10Gbps USB TYPE-C (USB 3.1 GEN-II)
Controller ASM 3142
Total Bandwidth PCIe 3.0 X1=1GB/s
Power Supply 5V2A=10 Watts (max) for each port

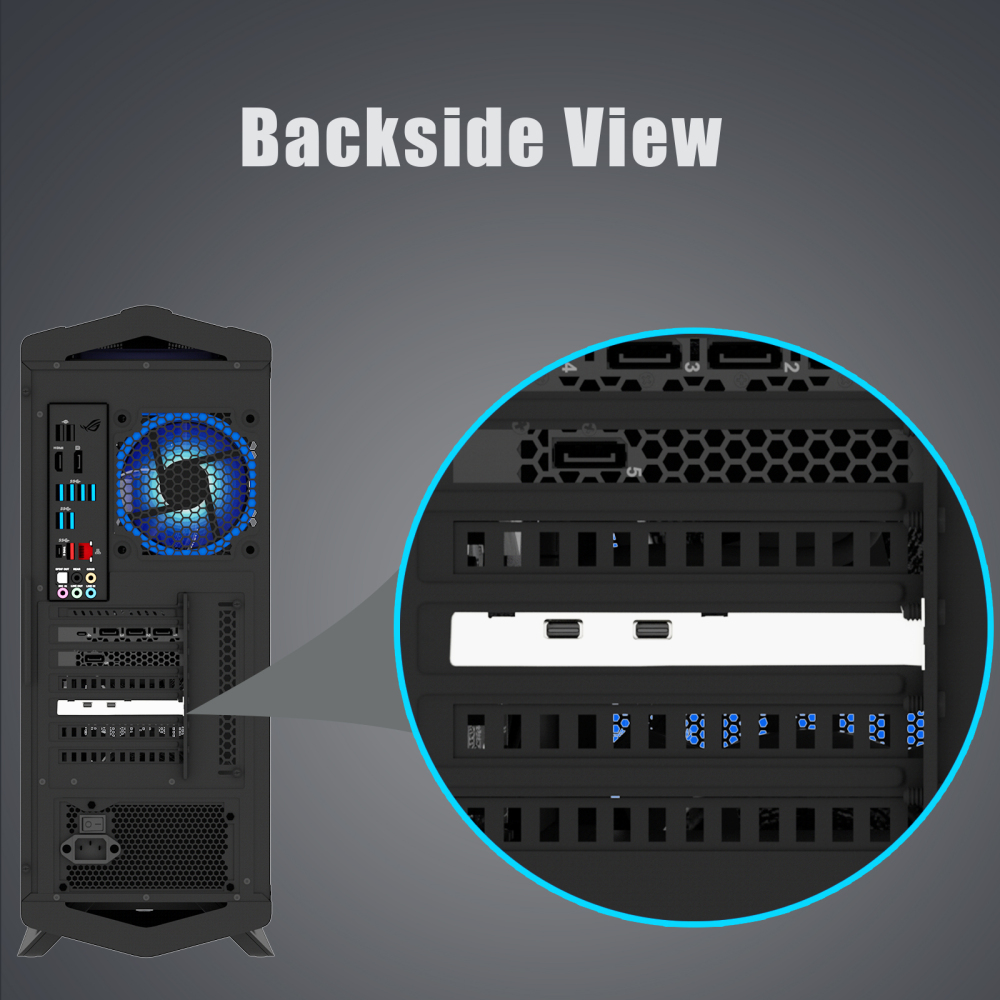

Installation PCIE X1/X4/X8/X16 slot
OS Compatibility Pluy and Play in Windows/Linux/Mac OS (Note: not support Windows XP, Window 7 need to install driver)

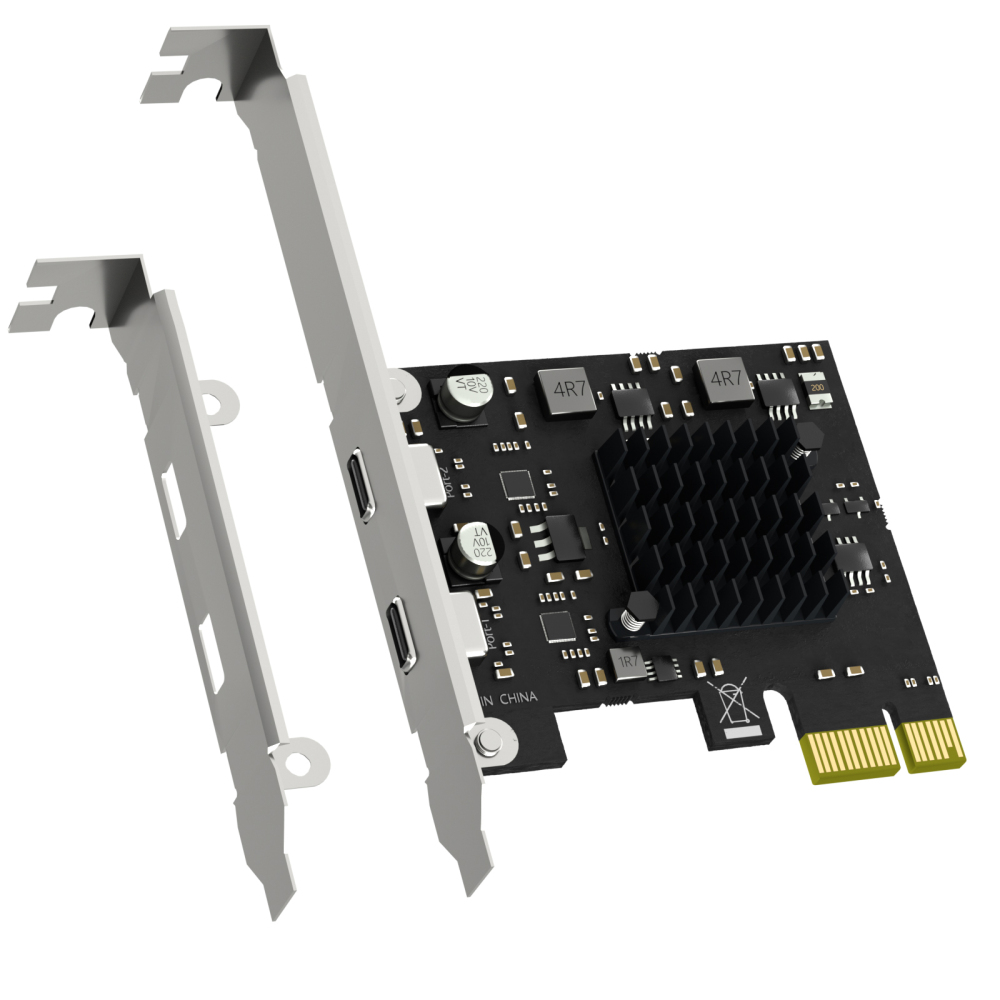

Mounting Bracket Regular & Low-profile bracket

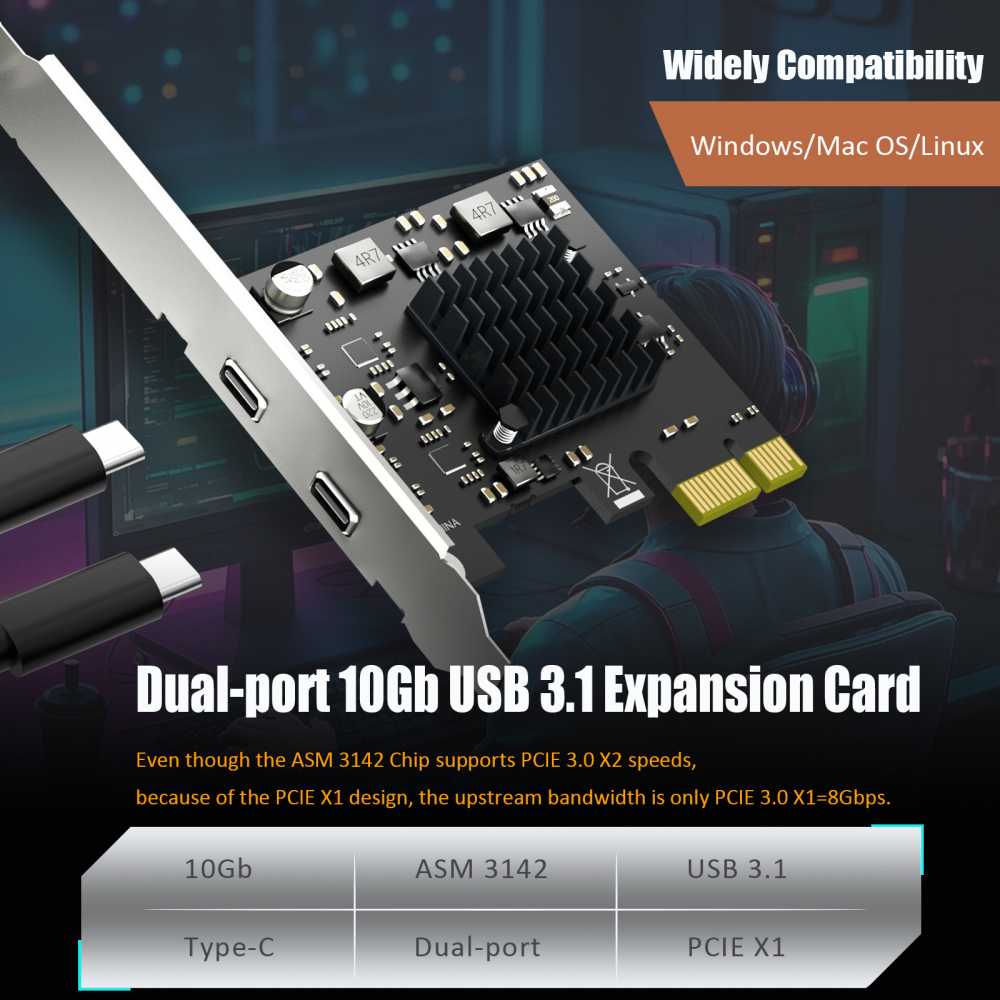

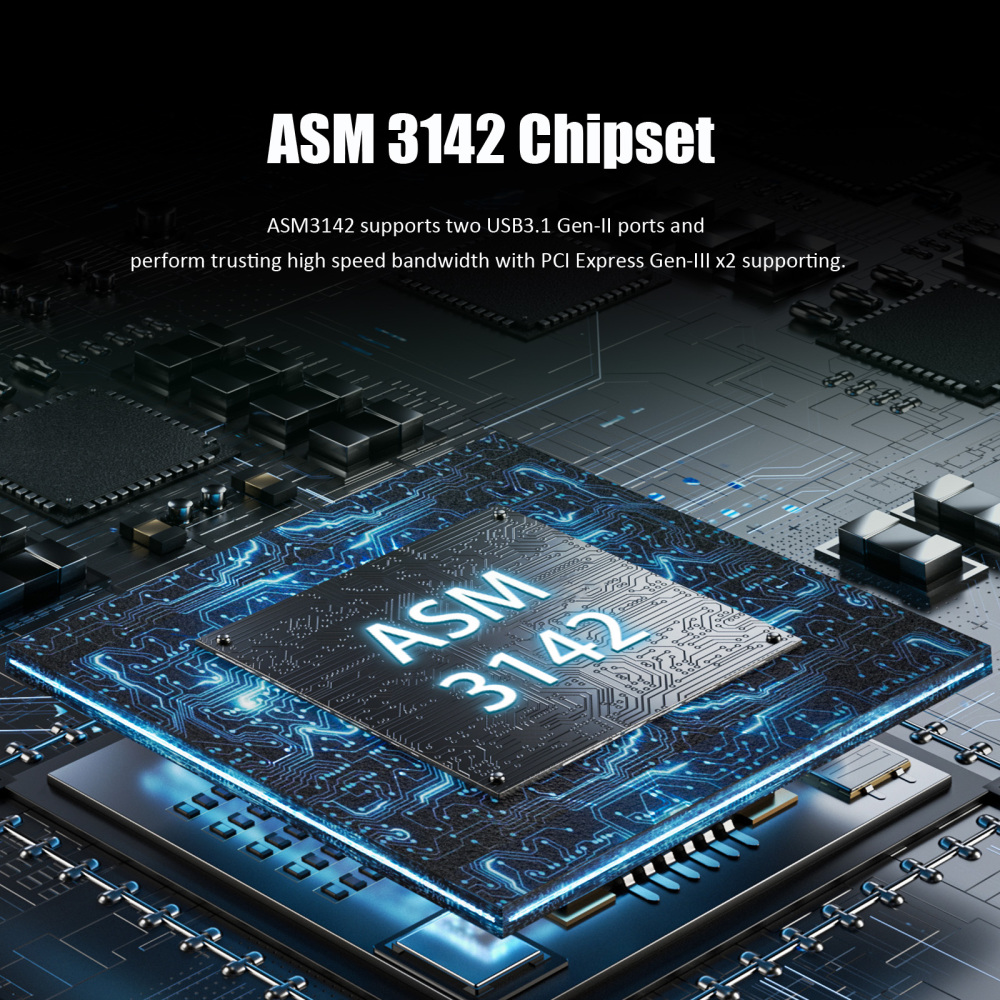

  • 2-port USB-C 10Gb PCIE X1 Expansion Card: Even though the ASM 3142 Chip supports PCIE 3.0 X2 speeds, because of the PCIE X1 design, the upstream bandwidth is only PCIE 3.0 X1=8Gbps.

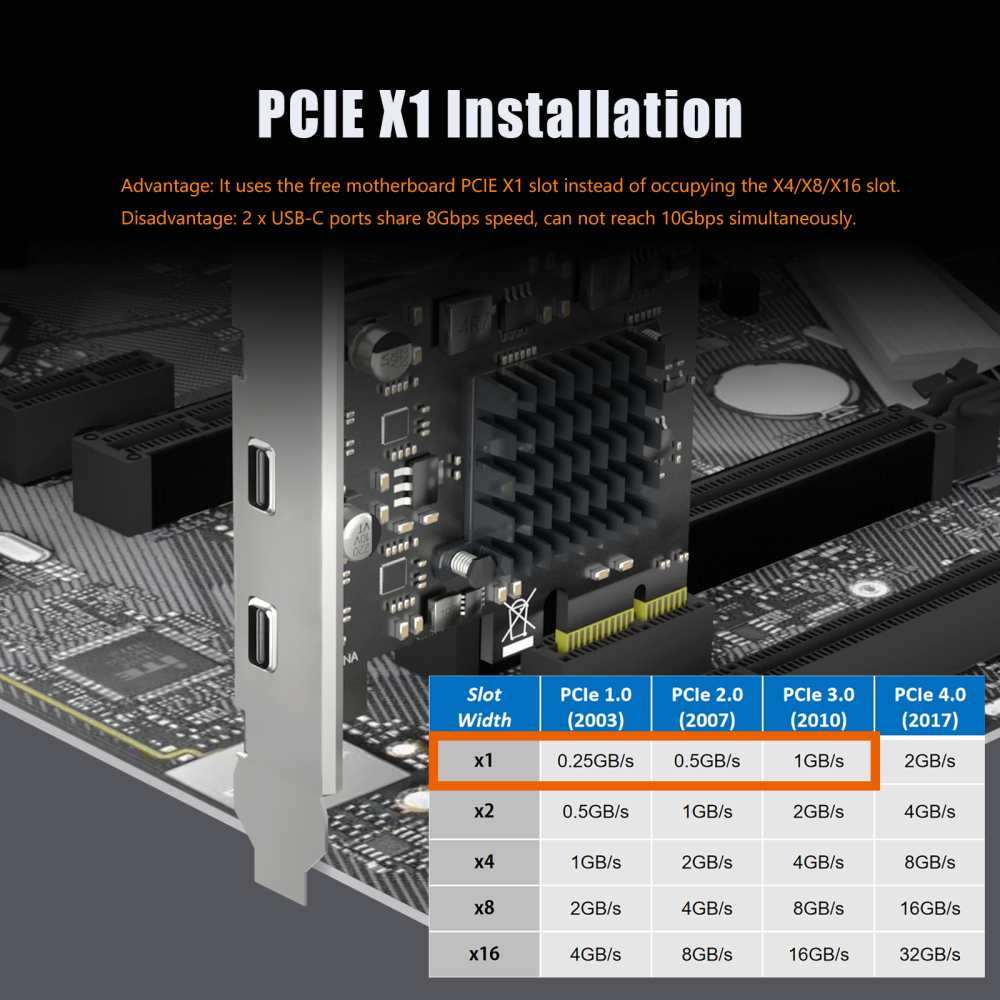

  • Advantage: It uses the free motherboard PCIE X1 slot instead of occupying the X4/X8/X16 slot. Disadvantage: 2 x USB-C ports share 8Gbps speed, can not reach 10Gbps simultaneously.
  • High-Power Support: Separate power management allows each port to handle high-power devices (up to 5V2A), ideal for industrial cameras, VR systems, and USB 3.2 NVME enclosures.
  • Wide Compatibility: Works with Windows 11/10/8, Mac OS, and Linux. Note: Requires driver for Windows 7, not compatible with Windows XP.

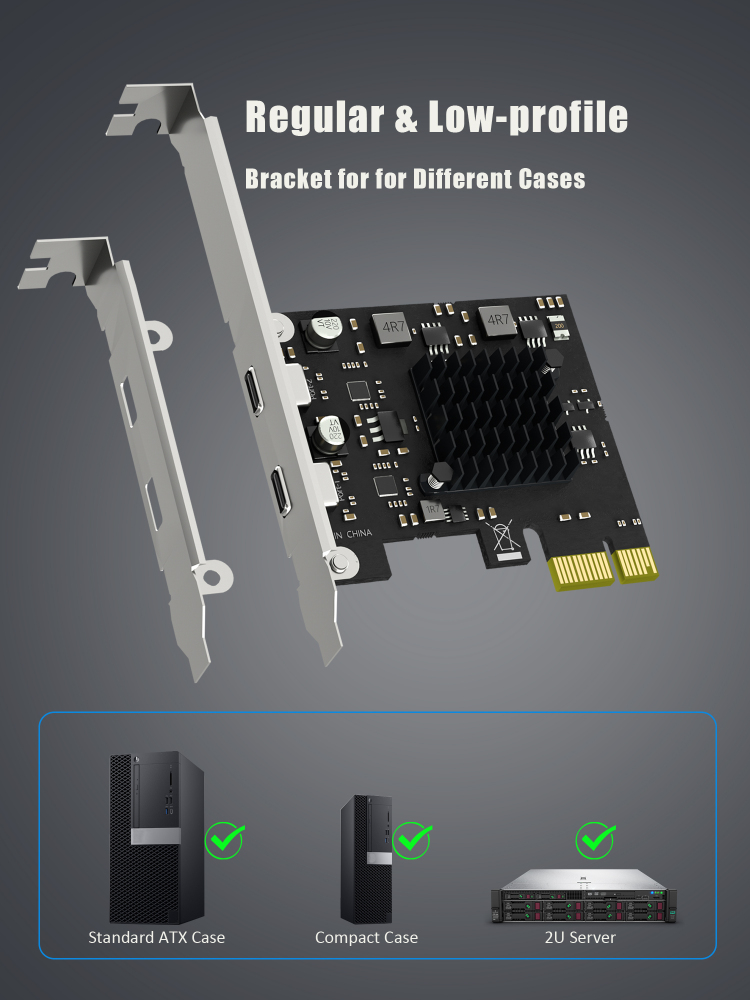

  • Flexible Installation: Includes regular & low-profile brackets for all computer cases. Enjoy lifetime technical support for any issues.
