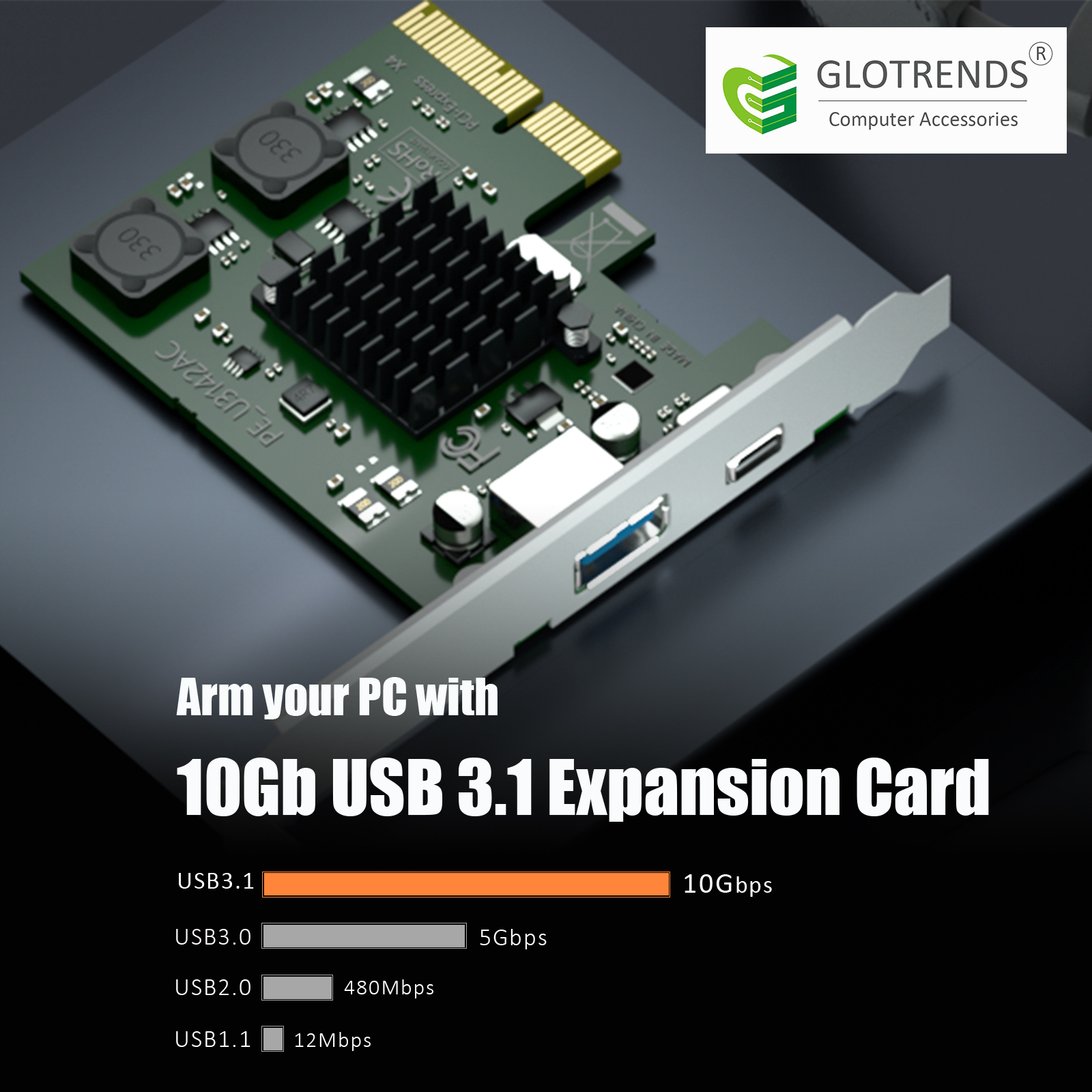

U3142AC 2-Port USB-A&C 3.2 Gen 2 PCIe Expansion Card

SKU: U3142AC
  • 2-ports (1xUSB-C + 1xUSB-A)

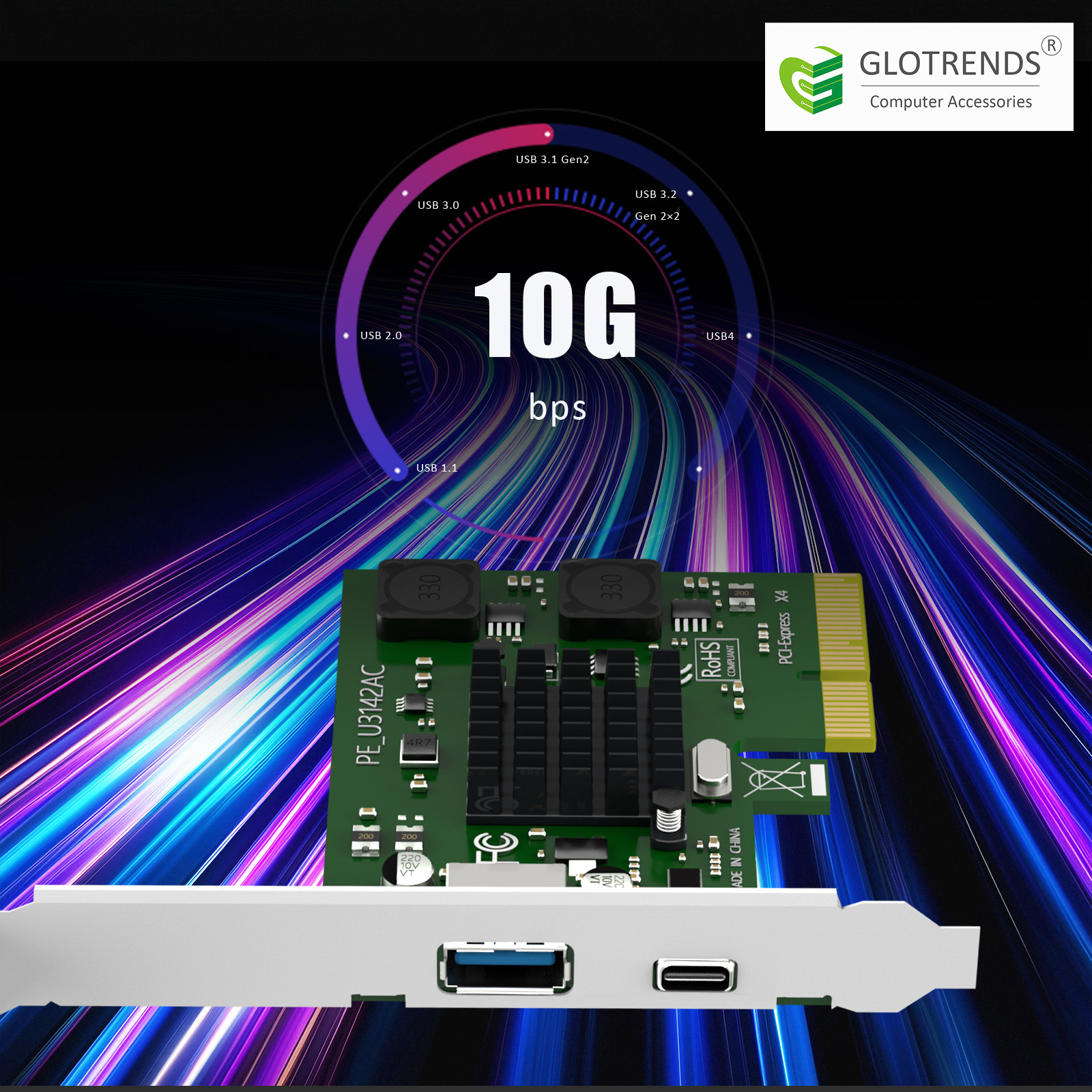

  • 10Gbps Speed (USB 3.1 Gen 2)
  • 5V/2A power output each port
  • ASM 3142 controller
0.0 (0 Reviews)
0 Sold
$29.99 $27.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
1/1
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket
  • U3142AC 2-Port 10Gb USB 3.1 Gen2 (Type-C and Type-A) to PCIE X4 Expansion Card with ASM 3142 Chip, Regular and Low-profible Bracket

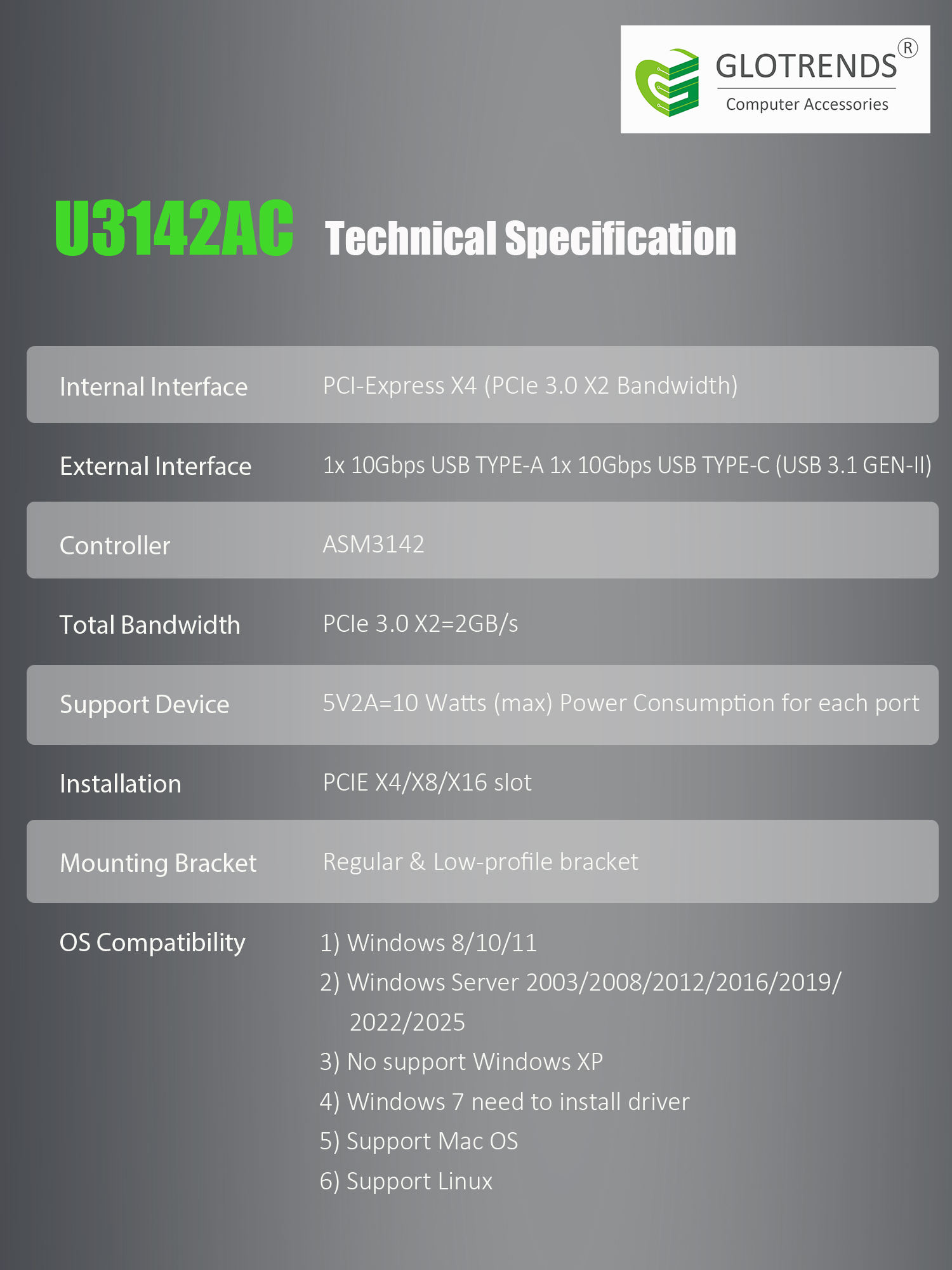

  • Description
Internal Interface PCI-Express X4 (PCIe 3.0 X2 Bandwidth)
External Interface 1 x USB TYPE-C + 1 x USB TYPE-A (USB 3.1 GEN-II=10Gbps)
Controller ASM 3142

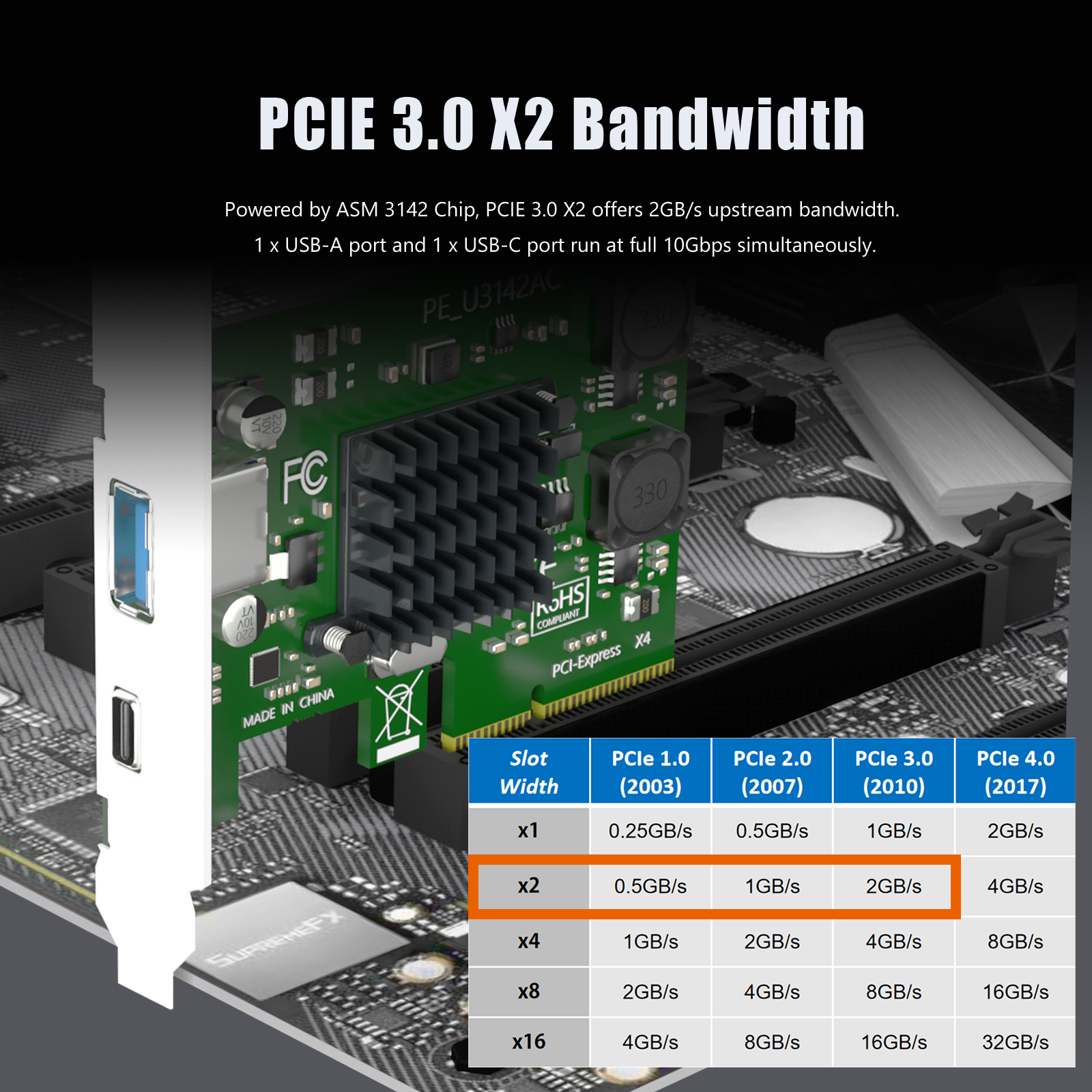

Total Bandwidth PCIe 3.0 X2=2GB/s
Power Supply 5V2A=10 Watts (max) for each port
Installation PCIE X4/X8/X16 slot
OS Compatibility Pluy and Play in Windows/Linux/Mac OS (Note: not support Windows XP, Window 7 need to install driver)

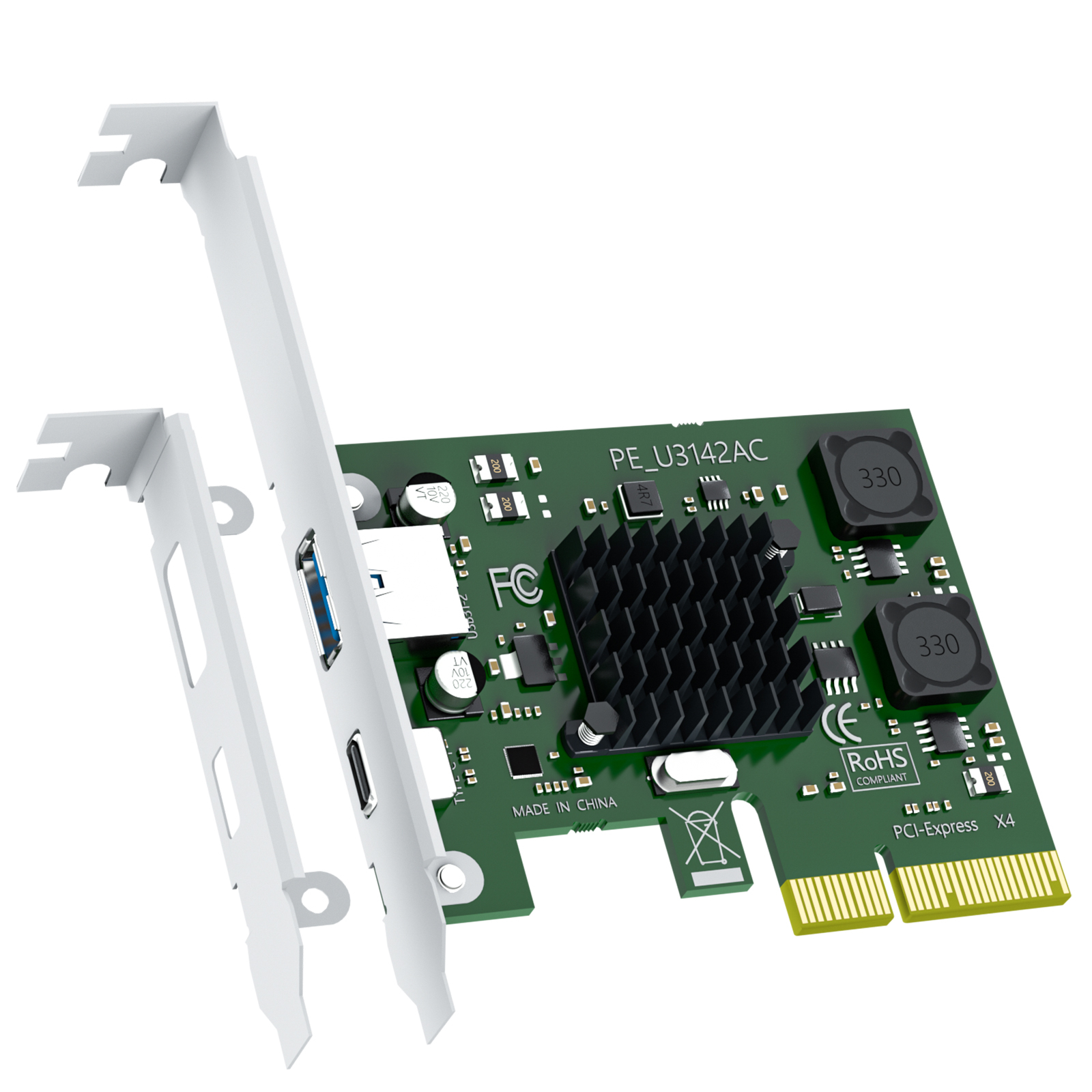

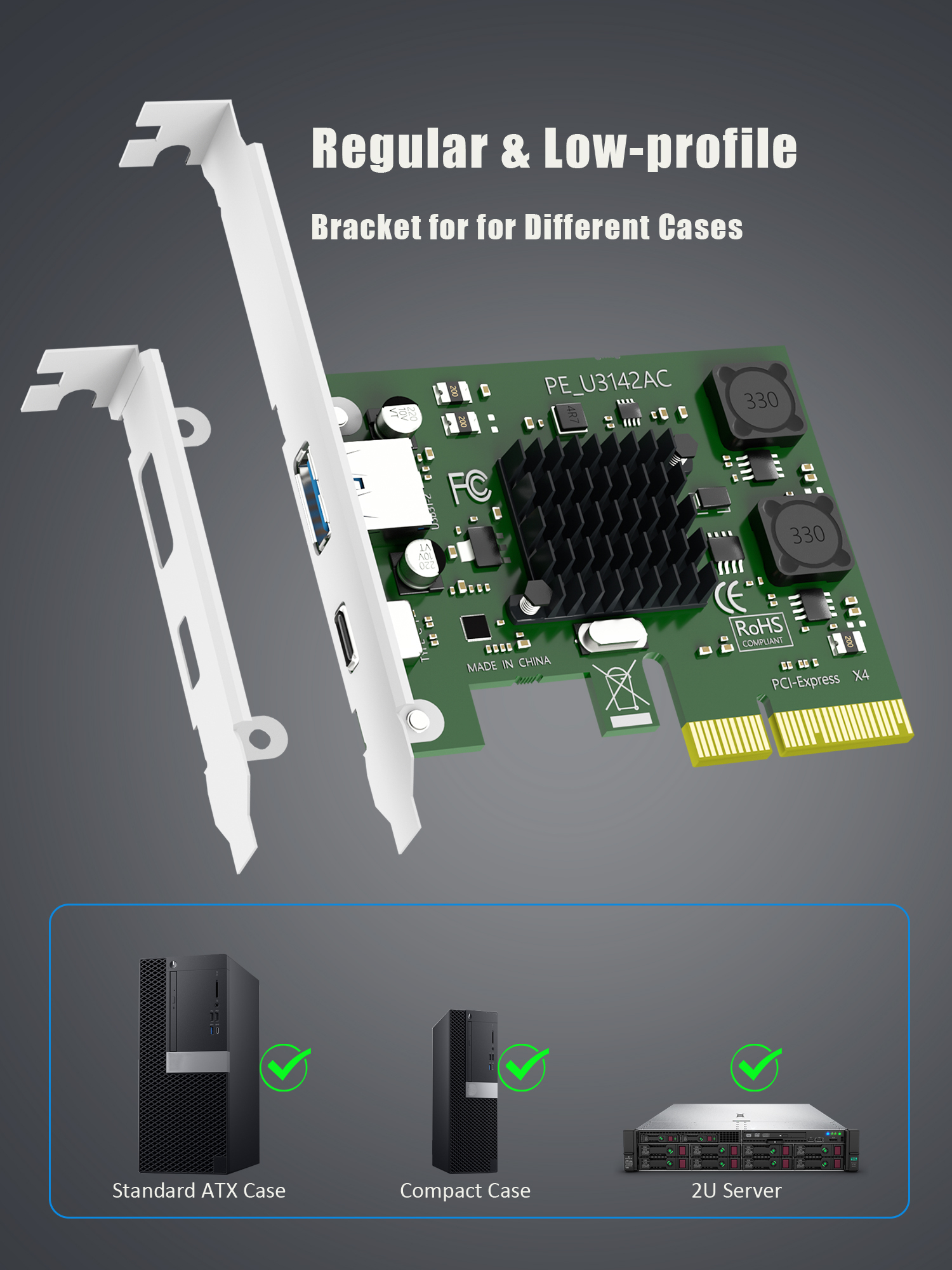

Mounting Bracket Regular & Low-profile bracket

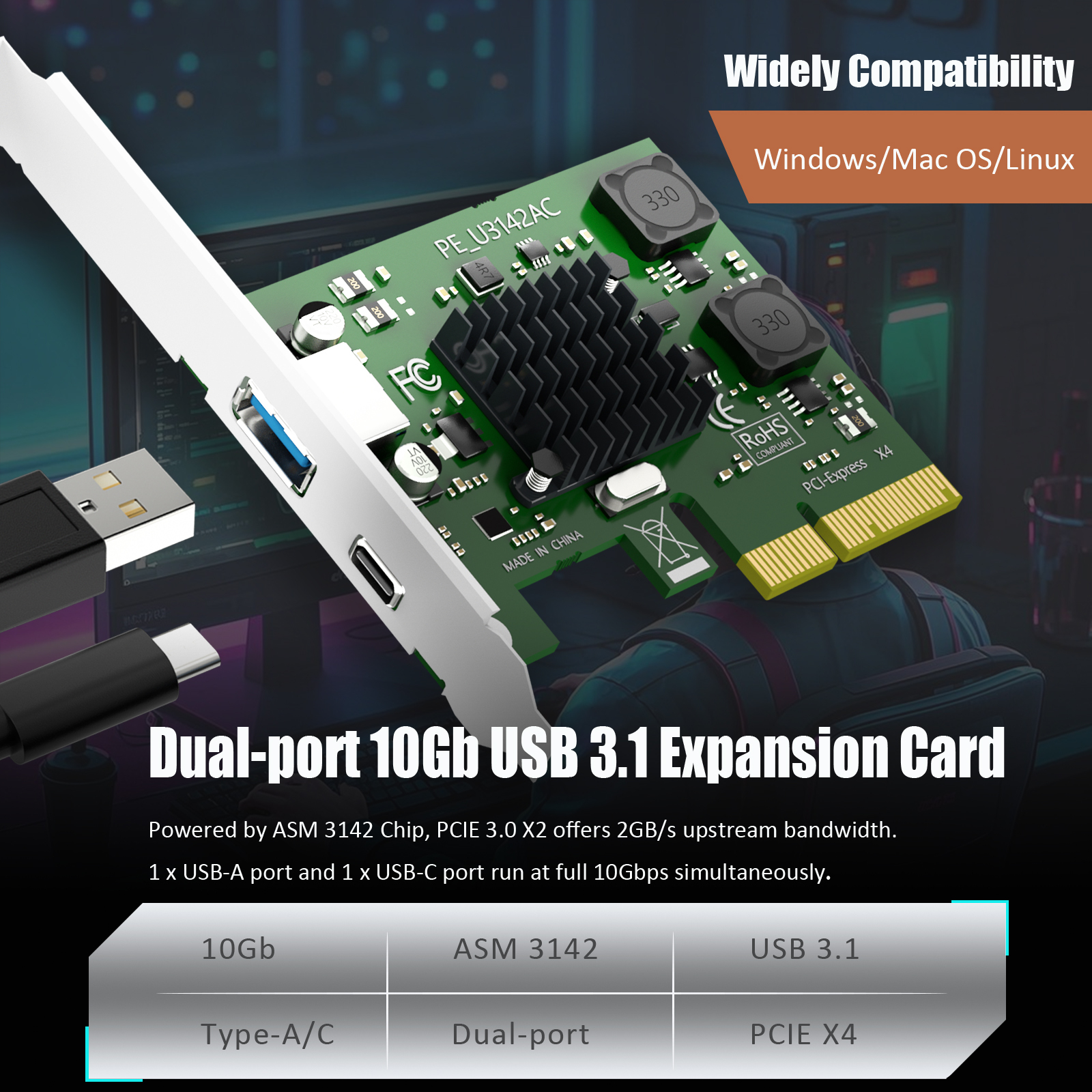

  • 2-port (1xUSB-C + 1xUSB-A) 10Gb PCIE X4 Expansion Card: Powered by ASM 3142 Chip, PCIE 3.0 X2 offers 2GB/s upstream bandwidth. 2xUSB ports run at full 10Gbps simultaneously.
  • High-Power Support: Separate power management allows each port to handle high-power devices (up to 5V2A), ideal for industrial cameras, VR systems, and USB 3.2 NVME enclosures.
  • Stable Transmission: High-frequency ceramic & solid-state capacitors ensure reliable high-speed data transfer. Self-powered, no extra supply needed.
  • Wide Compatibility: Works with Windows 11/10/8, Mac OS, and Linux. Note: Requires driver for Windows 7, not compatible with Windows XP.
  • Flexible Installation: Includes regular & low-profile brackets for all computer cases. Enjoy lifetime technical support for any issues.
