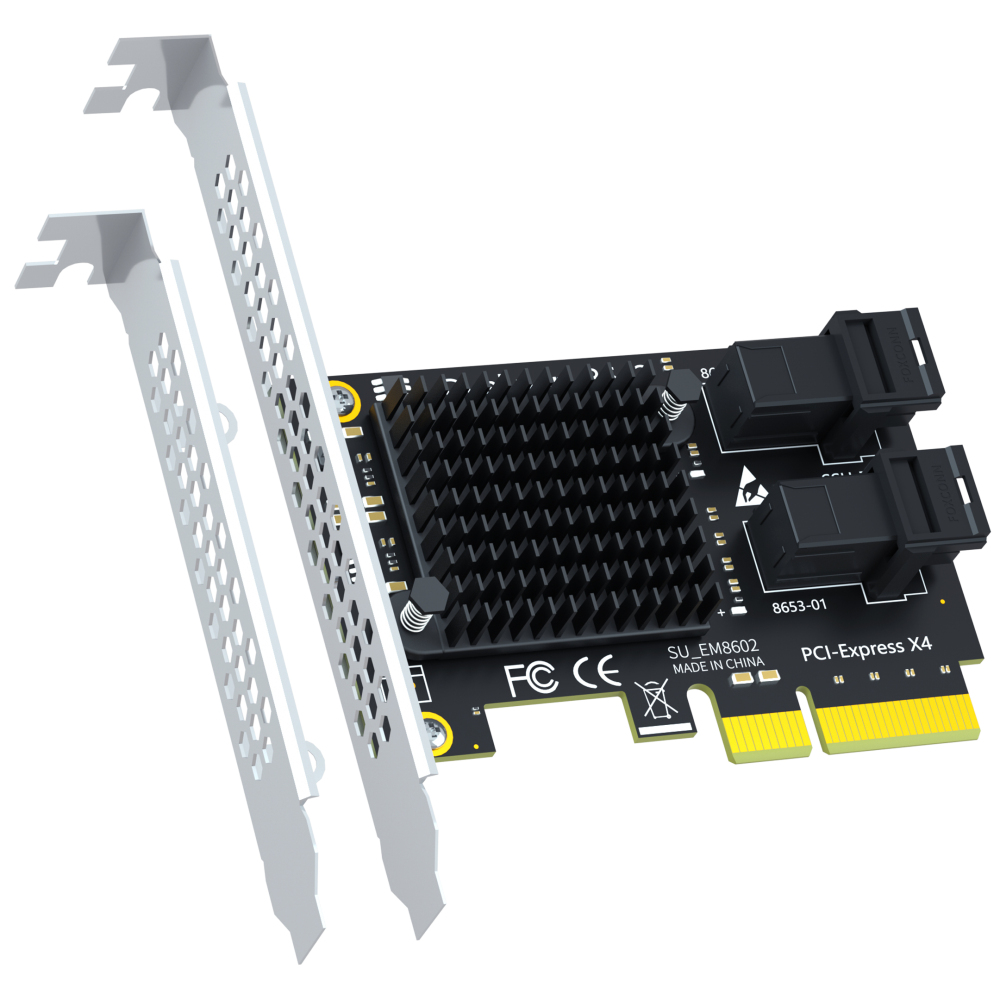

SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket

SKU:
  • 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter
  • Support PCIe Bifurcation
  • Regular and Low-profible Bracket
0.0 (0 Reviews)
0 Sold
$85.99 $79.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
1/1
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF22 2-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X4 Adapter Card with PCIe Bifurcation Function, Regular and Low-profible Bracket

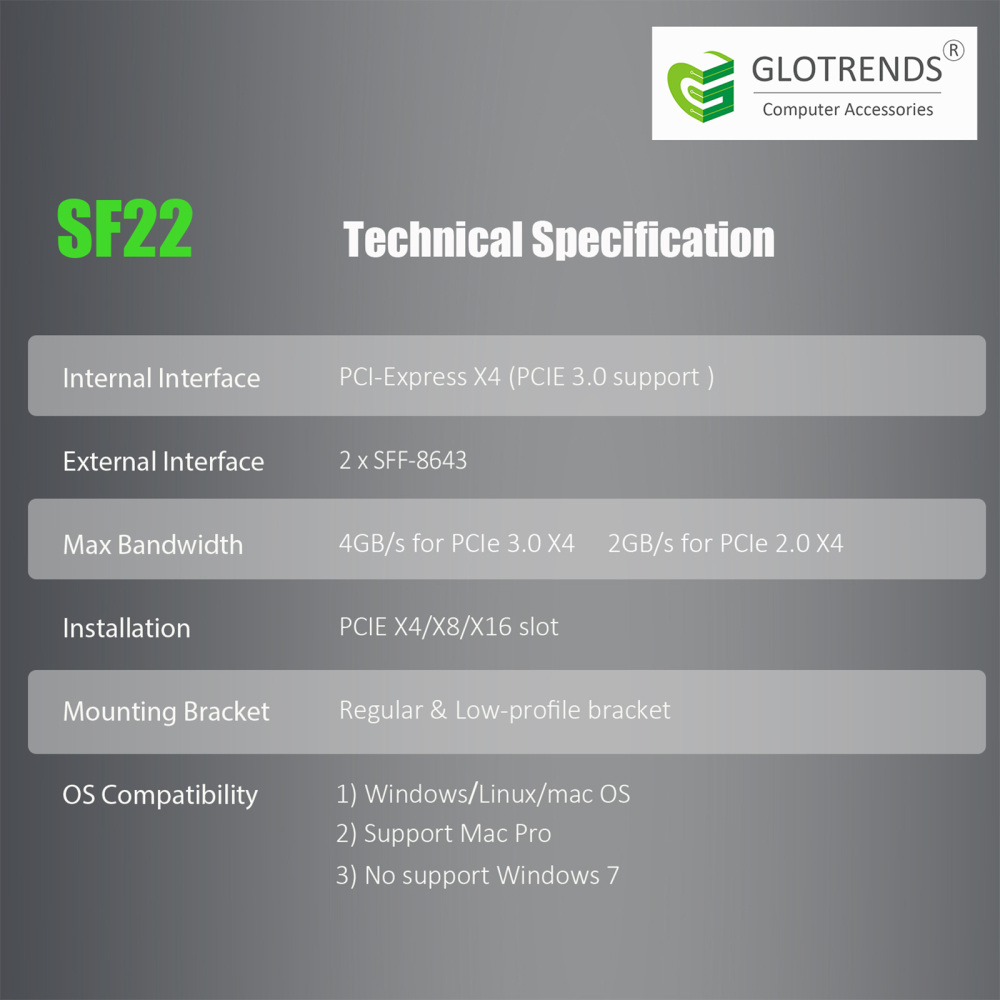

  • Description

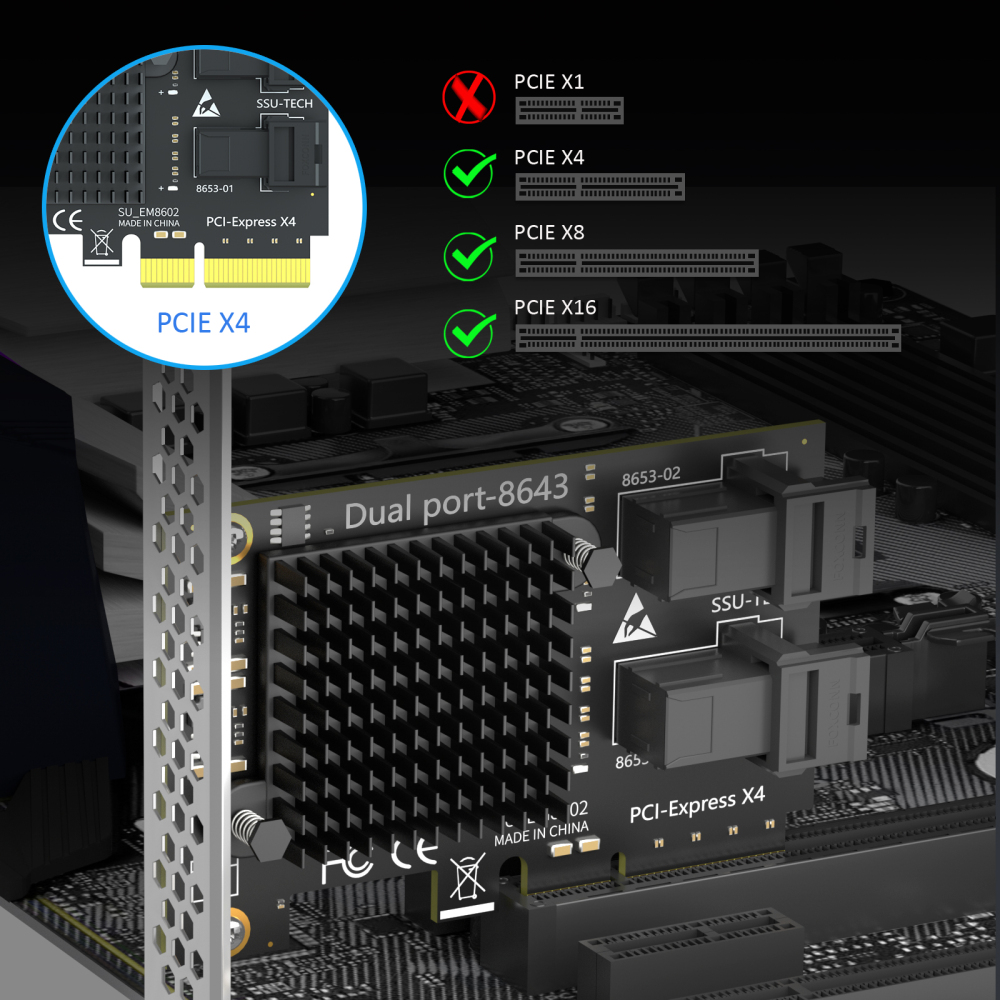

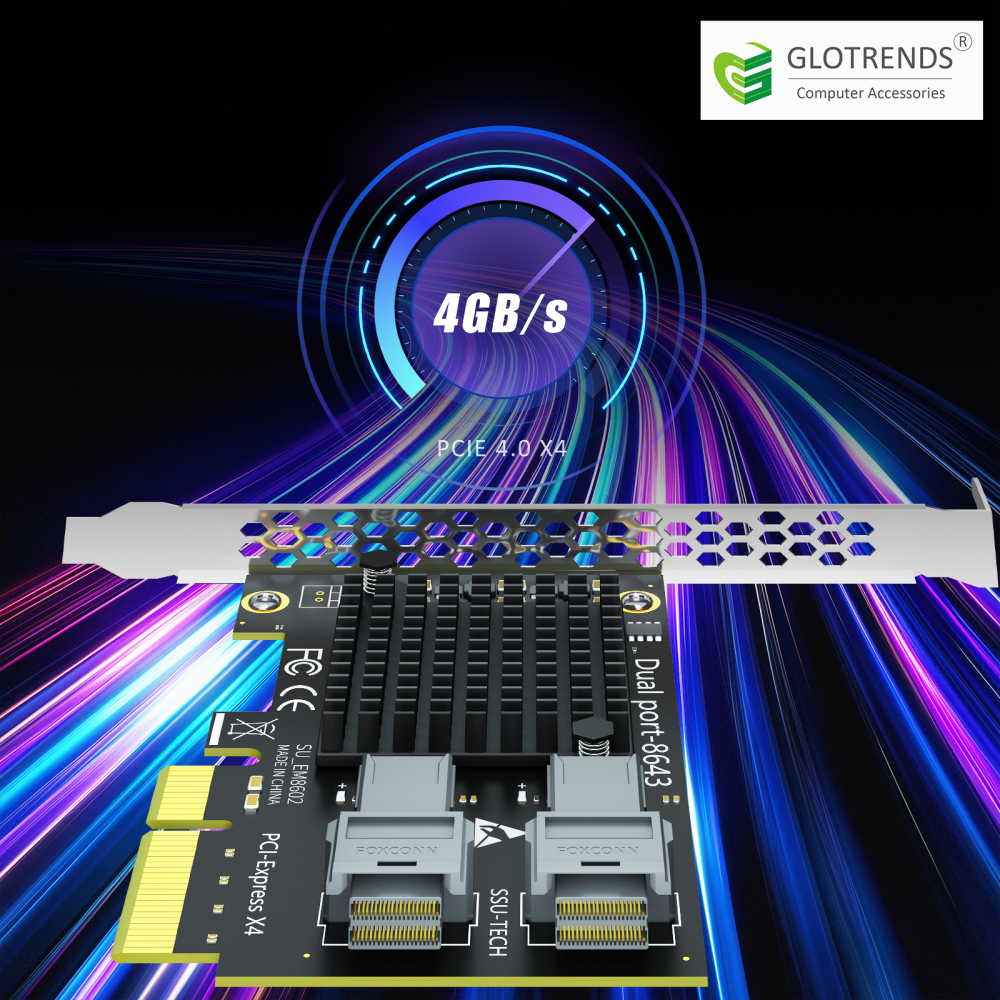

Internal Port PCI-Express 3.0 X4 (32Gbps speed at max), PCIE X4/X8/X16 Installation

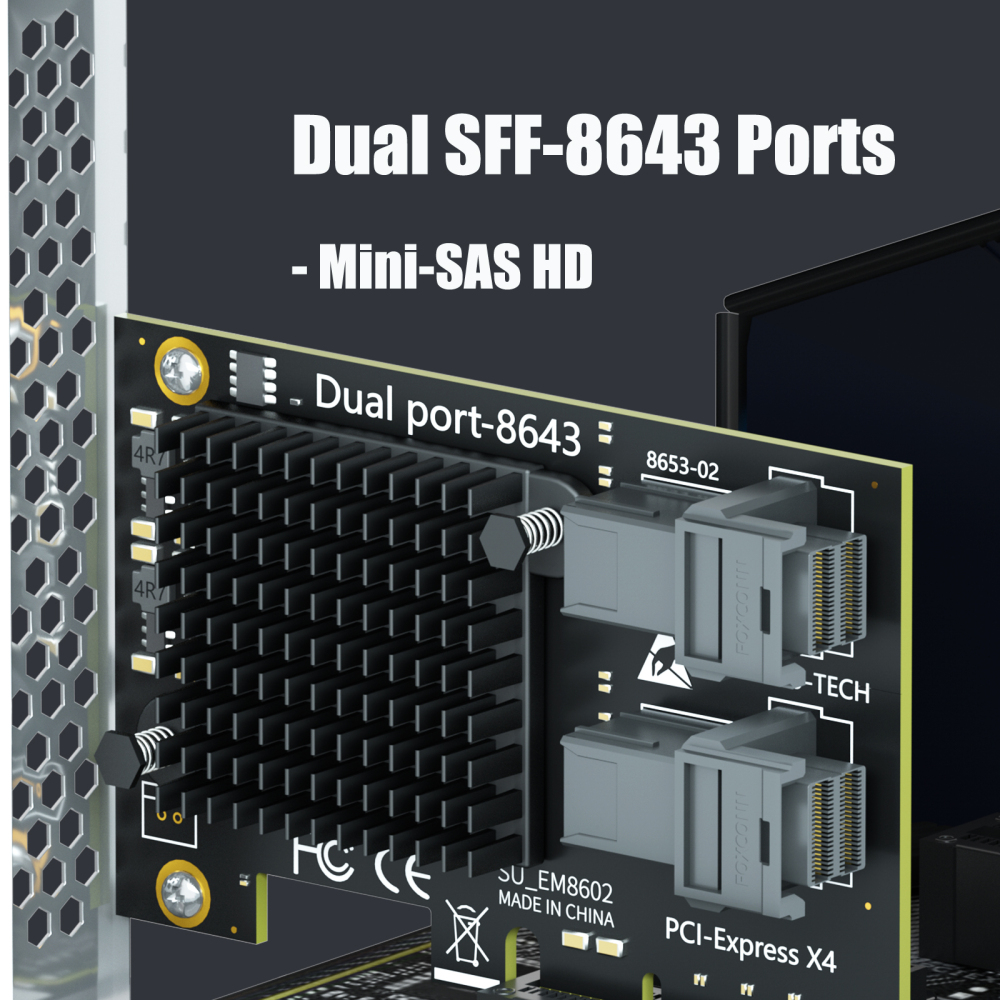

External Port 2 x SFF-8643
OS Compatibility Windows/Linux/mac OS (Note: not support windows 7)
PCIe Bifurcation Support,it powered by the ASM2812 controller with PCIe bifurcation technology
Hardware Platform Intel and AMD, and support Mac Pro
RAID Setup Software RAID setup via Windows Disk Management or Linux mdadm Utility

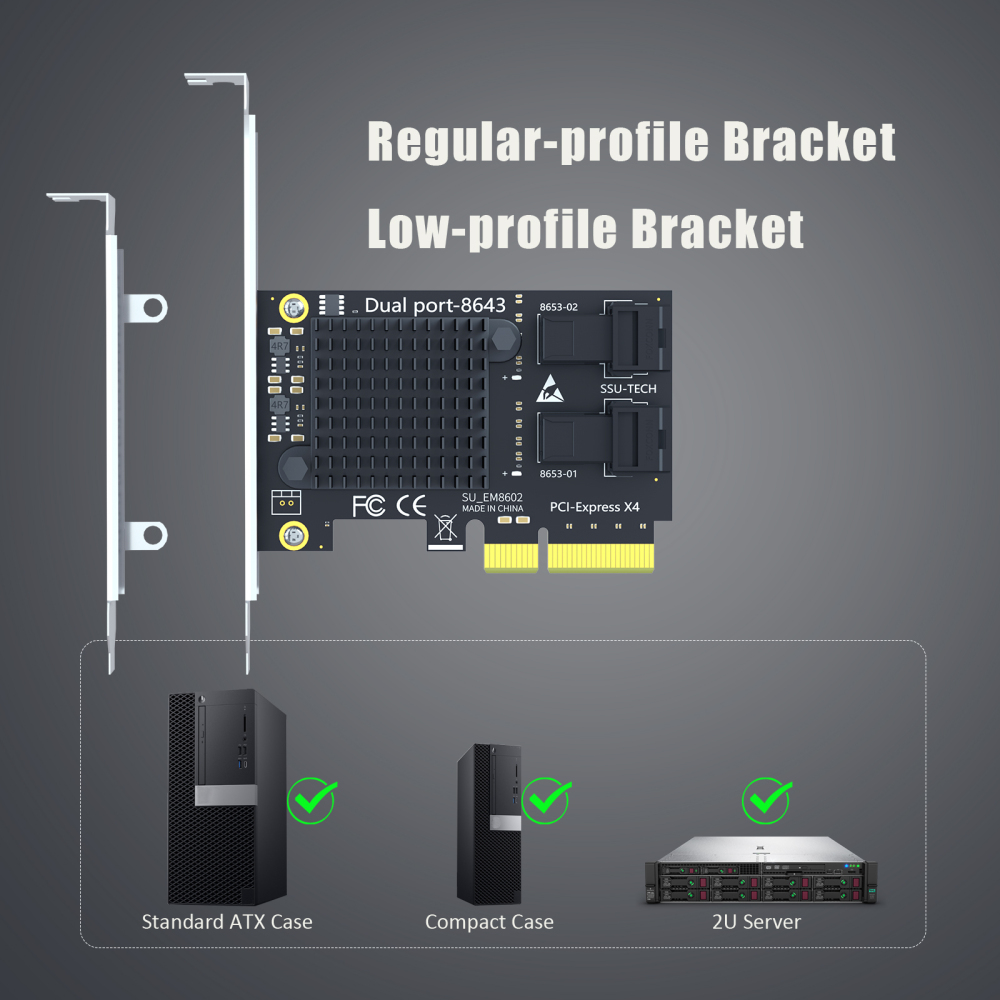

Installation Low-profile and Regular-profile bracket

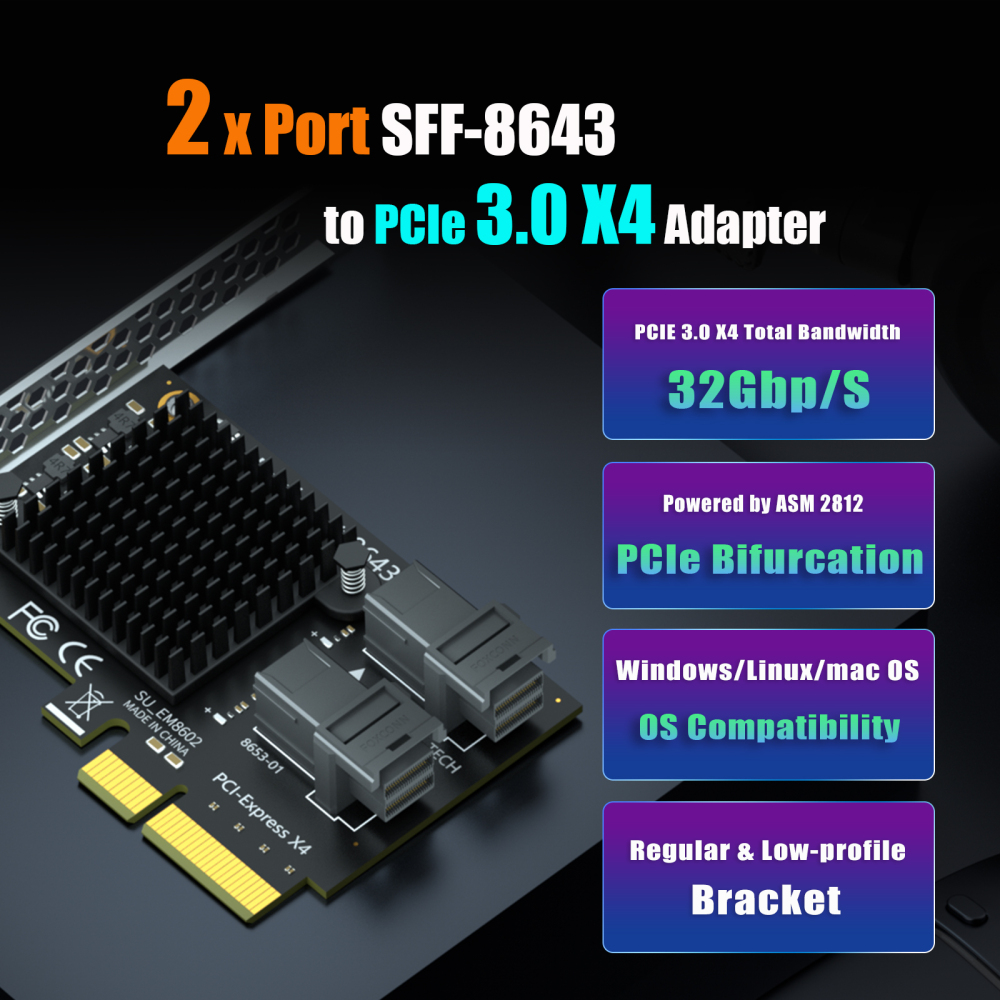

  • 2-port SFF-8643 to PCIe 3.0 x4 Adapter Card: Convert a single PCIe 3.0 X4 interface into 2 x SFF-8643 port, back compatible with PCIe 2.0/1.0.
  • With this PCIe Adapter, you can add 2 x U.2 SSD to PC/Server that doesn’t natively support U.2 SSD (Note: you need to purchase SFF-8643 to SFF-8639 cable separately)

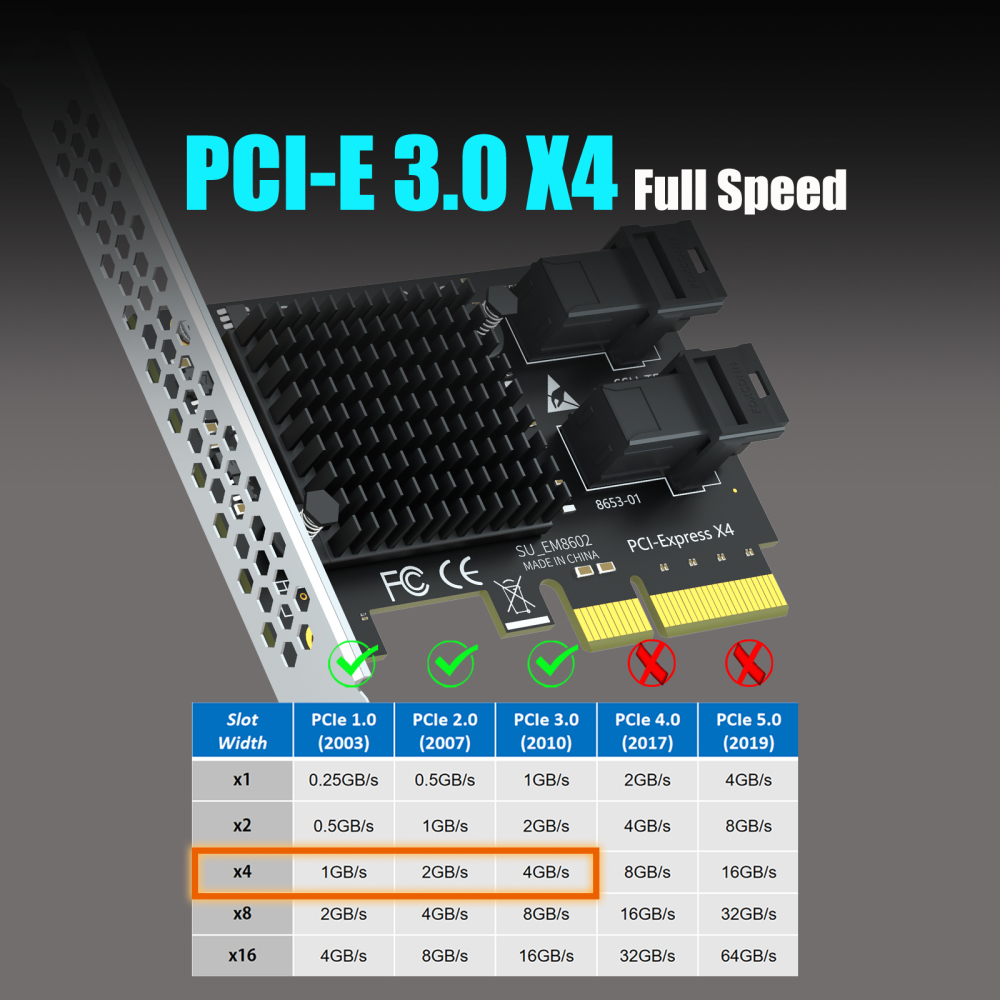

  • Bandwidth allocation: PCIe 3.0 x4 at max upstream bandwidth, and 2 x SFF-8643 port share PCIe 3.0 x4 bandwidth .
  • Based with ASM 2812 controller, it support PCIe Bifurcation. So, it does not require motherboard/CPU support for PCIe Bifurcation and is compatible with all motherboards.
  • Cross-Platform Plug-and-Play: Works seamlessly with Windows 11/10/8, Linux, and macOS (no driver installation required).
