SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket

SKU:
  • 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter
  • Without PCIe Bifurcation Function
  • Regular and Low-profible Bracket
0.0 (0 Reviews)
0 Sold
$39.99 $35.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
1/1
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket
  • SF04 4-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X16 Adapter Card Without PCIe Bifurcation Function, Regular and Low-profible Bracket

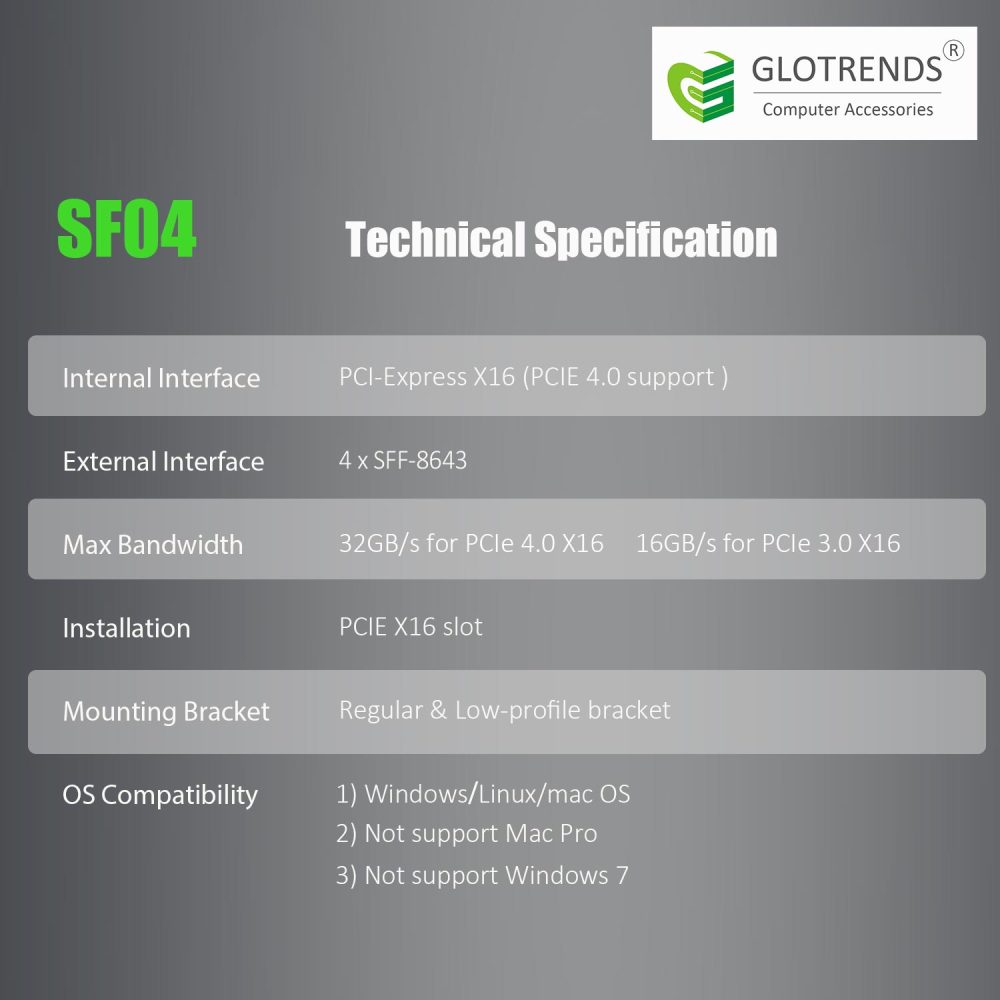

  • Description

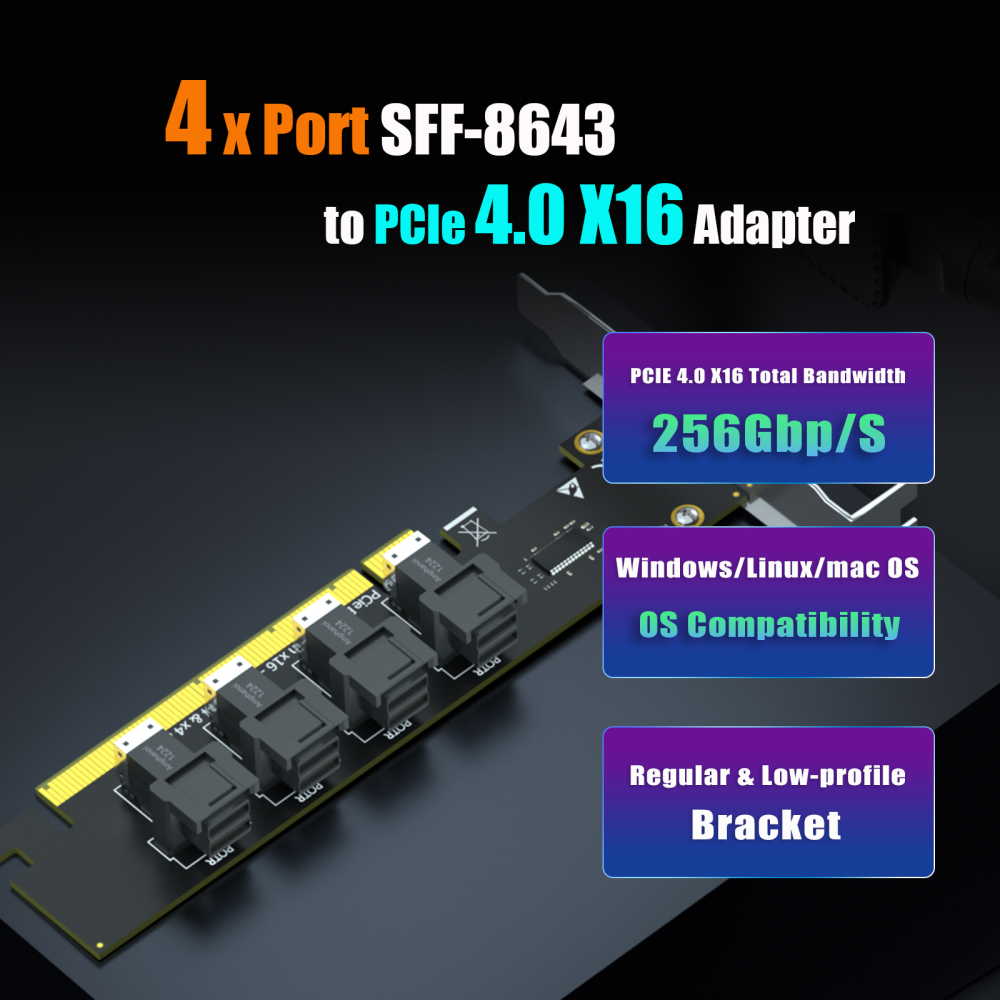

Internal Port PCI-Express 4.0 X16 (256GBbps at max)
External Port 4 x SFF-8643
OS Compatibility Windows and Linux (Note: not support windows 7)

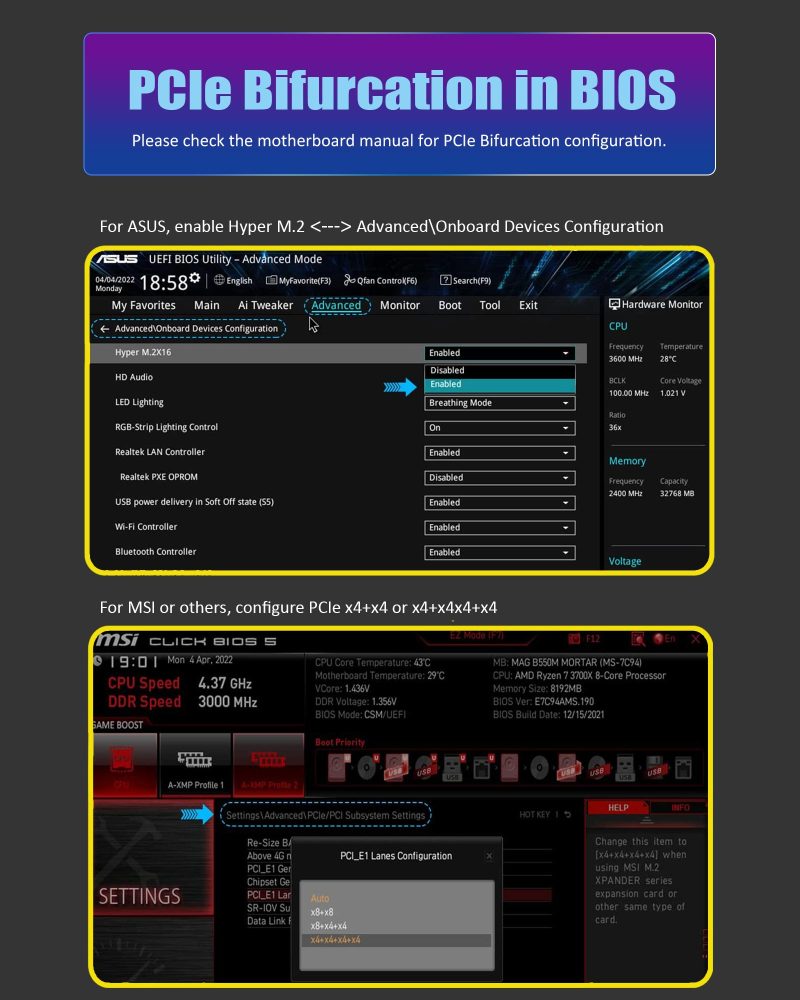

PCIe Bifurcation Not support, so it requires a motherboard that supports PCIe Bifurcation
Hardware Platform Intel and AMD motherboard with PCIe Bifurcation (Note: not support Mac Pro)
CPU Requirements Intel 11th Gen or Ryzen 5000 Series and above
RAID Setup Software RAID setup via Windows Disk Management or Linux mdadm Utility

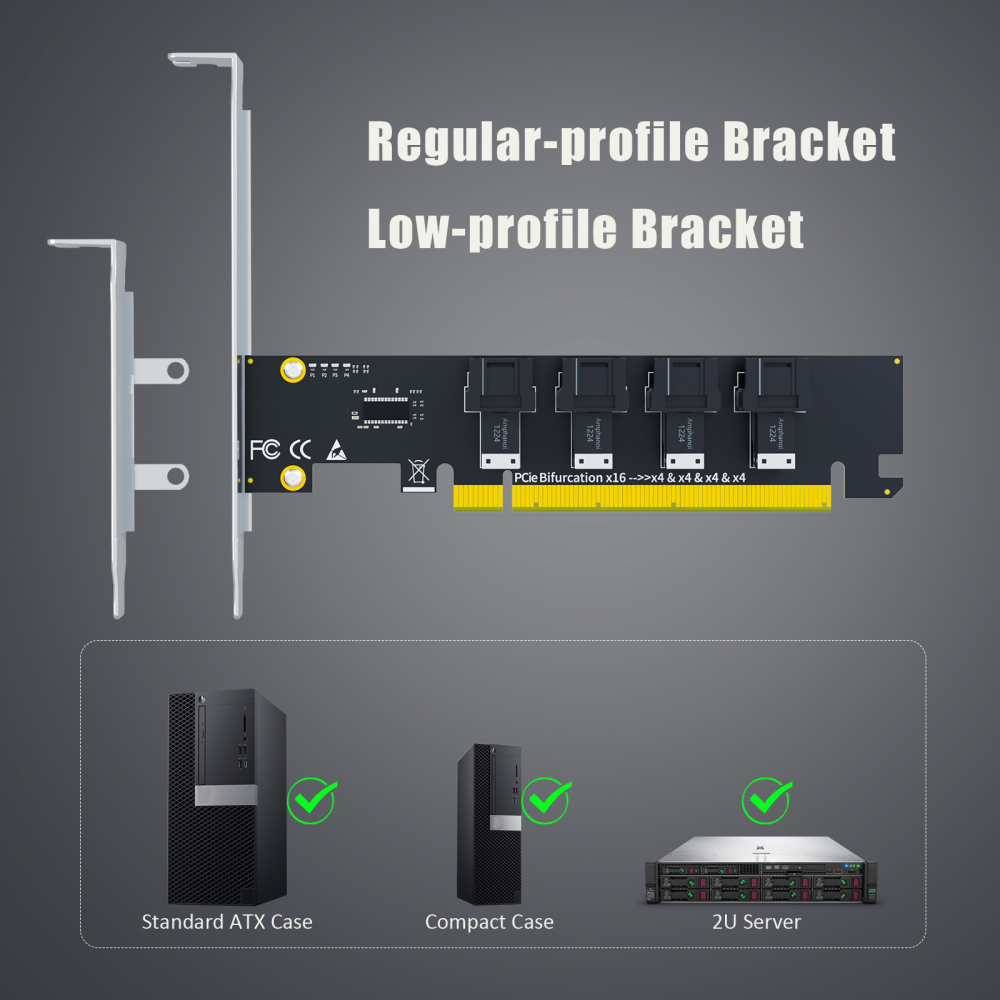

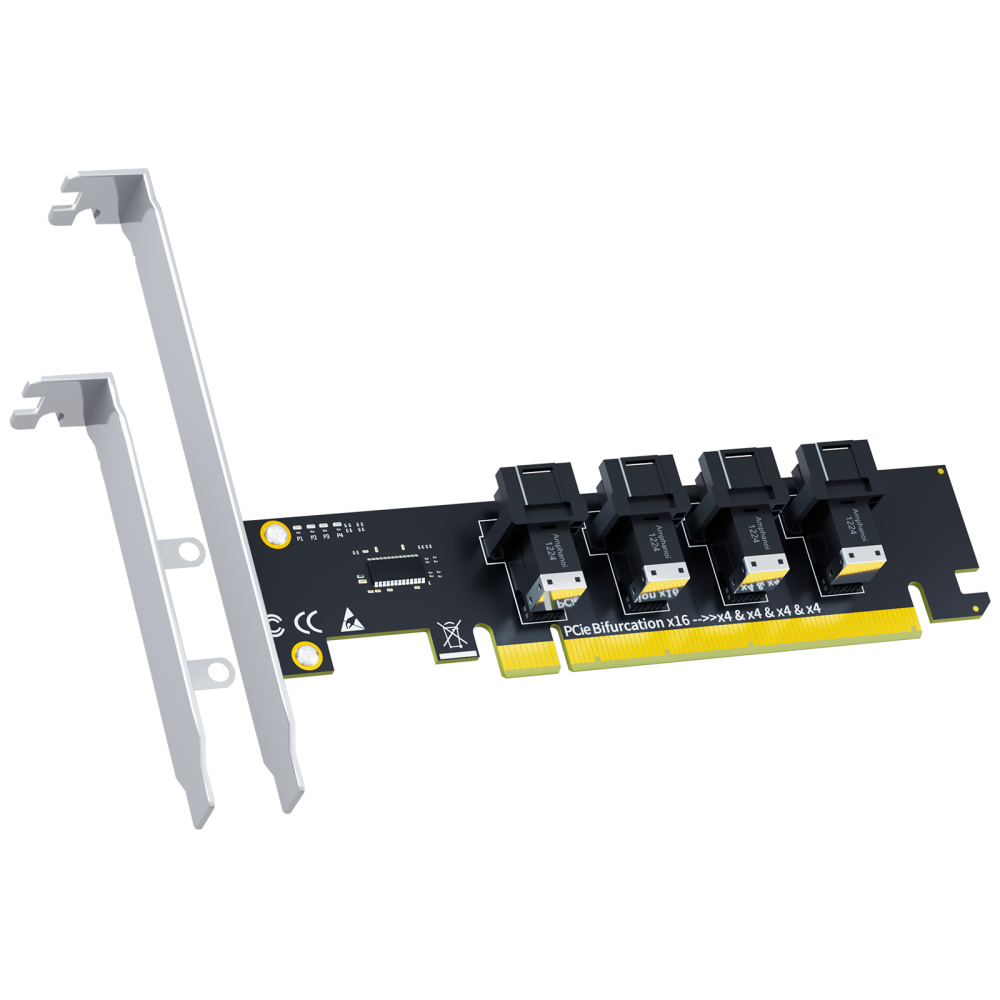

Installation Low-profile and Regular-profile bracket

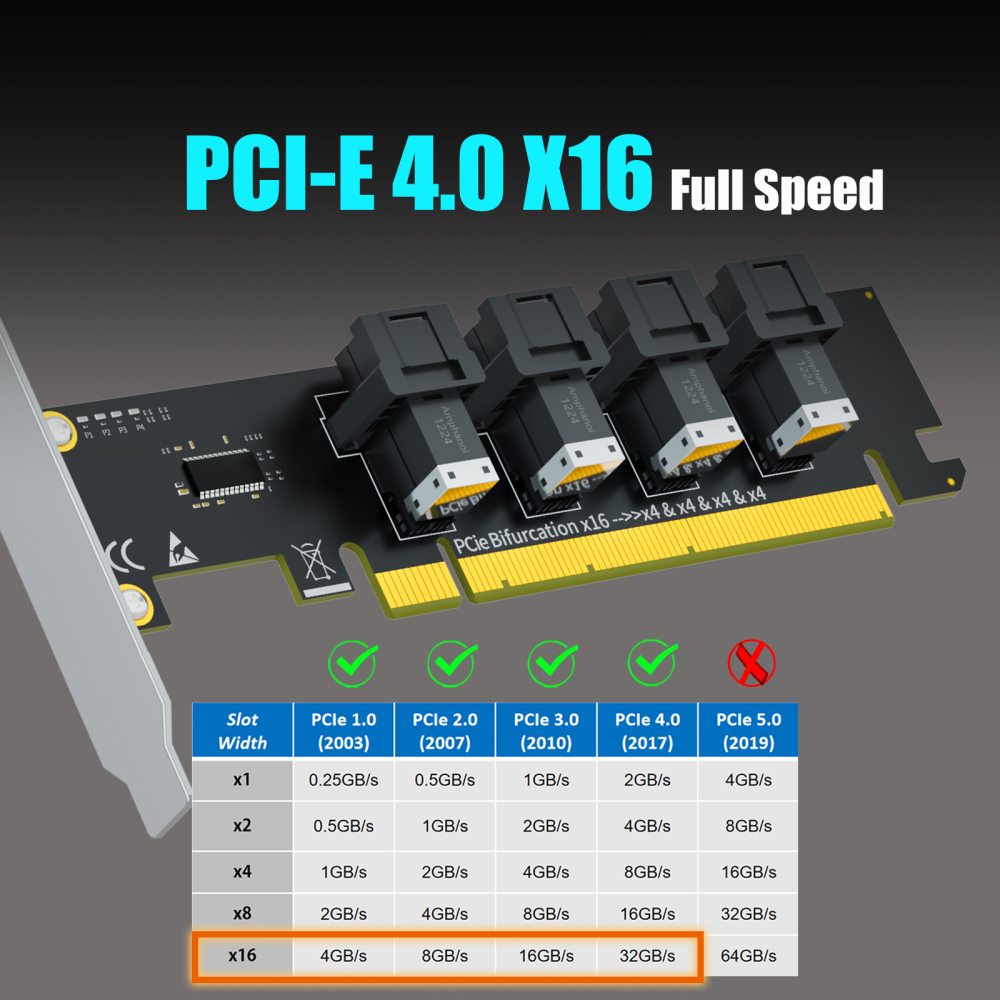

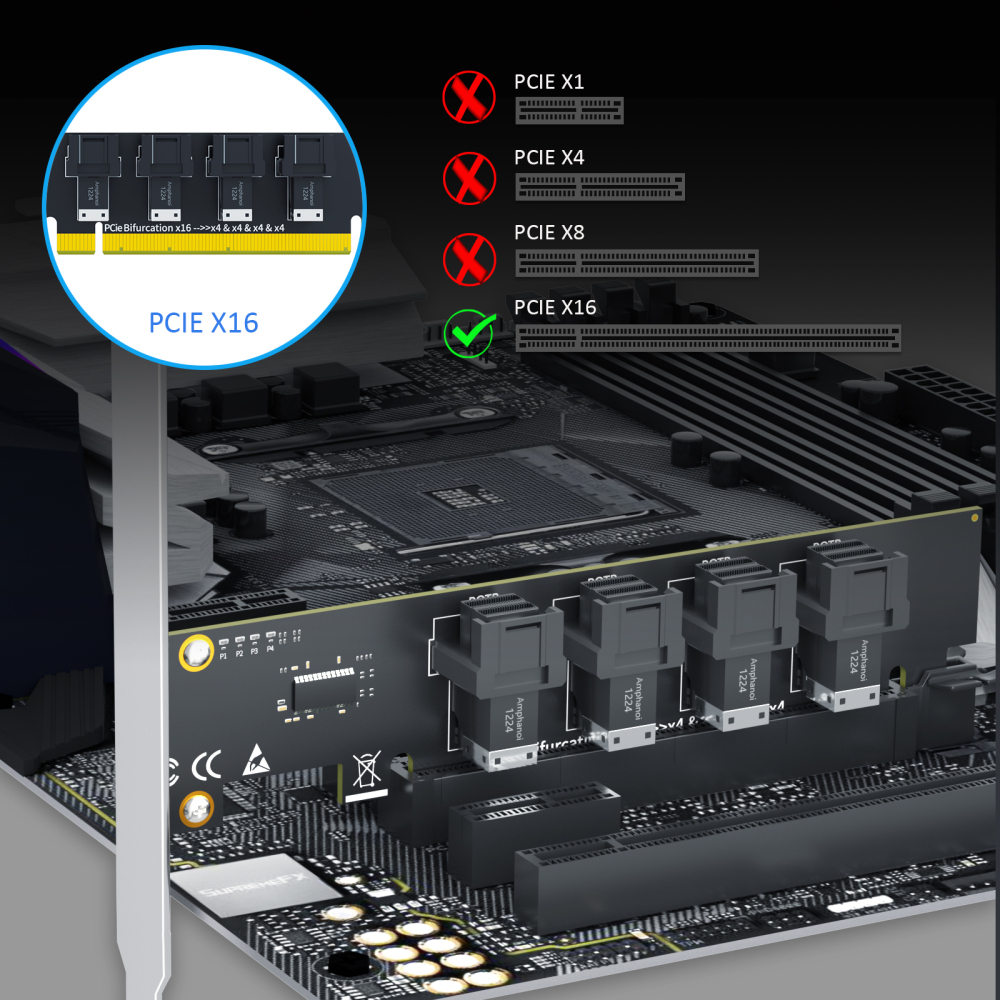

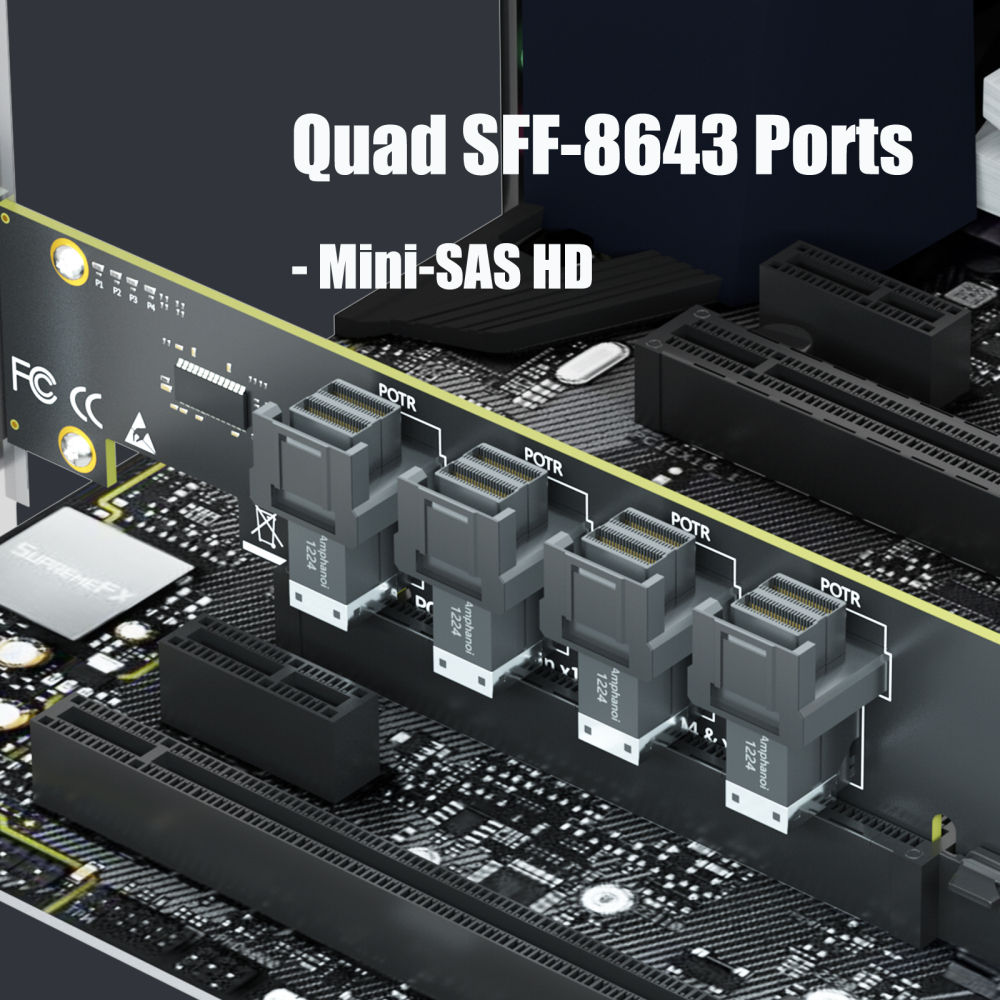

  • 4-port SFF-8643 to PCIe 4.0 x16 Adapter Card: Convert a single PCIe 4.0 X16 interface into 4 x SFF-8643 port, back compatible with PCIe 3.0/2.0/1.0.
  • With this PCIe Adapter, you can add 4 x U.2 SSD to PC/Server that doesn’t natively support U.2 SSD (Note: you need to purchase SFF-8643 to SFF-8639 cable separately)
  • Bandwidth allocation: PCIe 4.0 x16 at max upstream bandwidth, and PCIe 4.0 X4 for each SFF-8643 port.

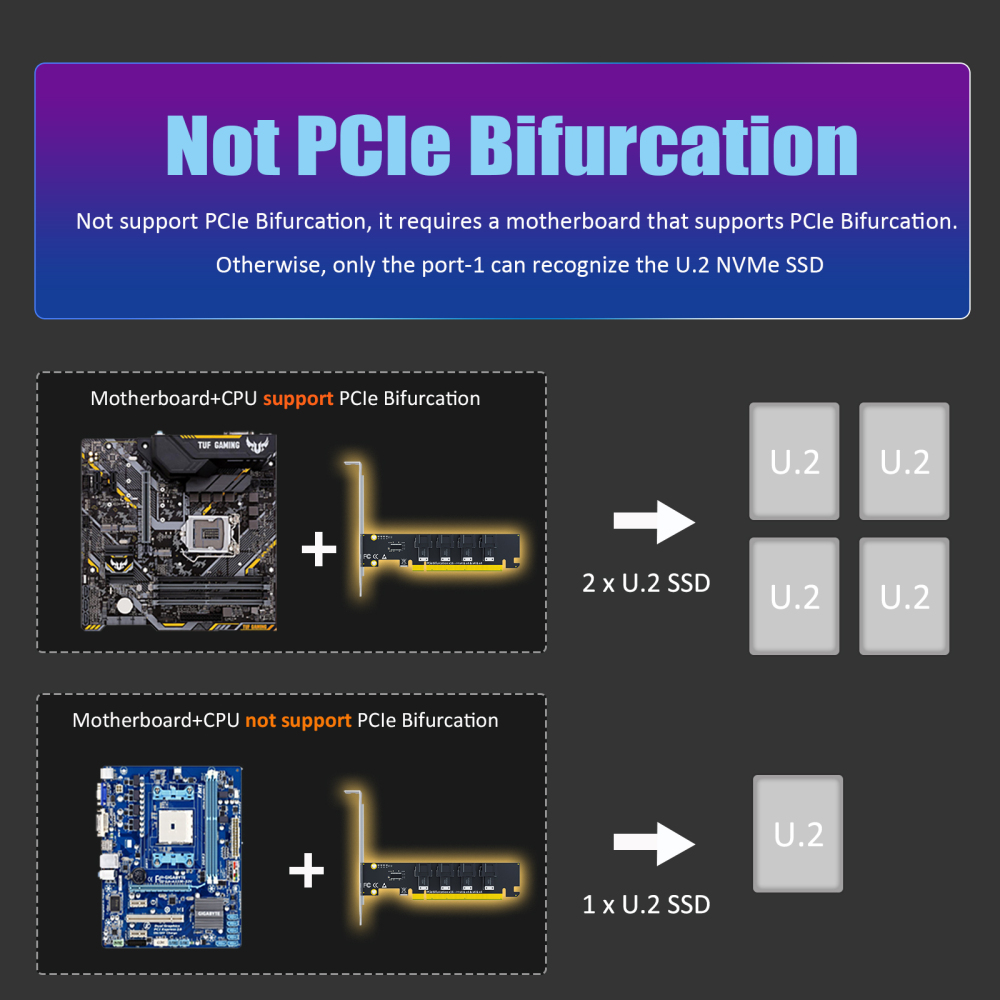

  • Not support PCIe Bifurcation, so it requires a motherboard that supports PCIe Bifurcation, otherwise only the port-1 can be recognized.
  • Cross-Platform Plug-and-Play & RAID Support: Works seamlessly with Windows 11/10/8, Linux, and macOS (no driver installation required). Configure SSD RAID setups via native OS disk management tools.
