ST5116 Dual M.2 PCIe Adapter with 2 x 10Gb RJ45 Port, PCIe 4.0 X8 Interface, Support PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool

SKU: ST5116

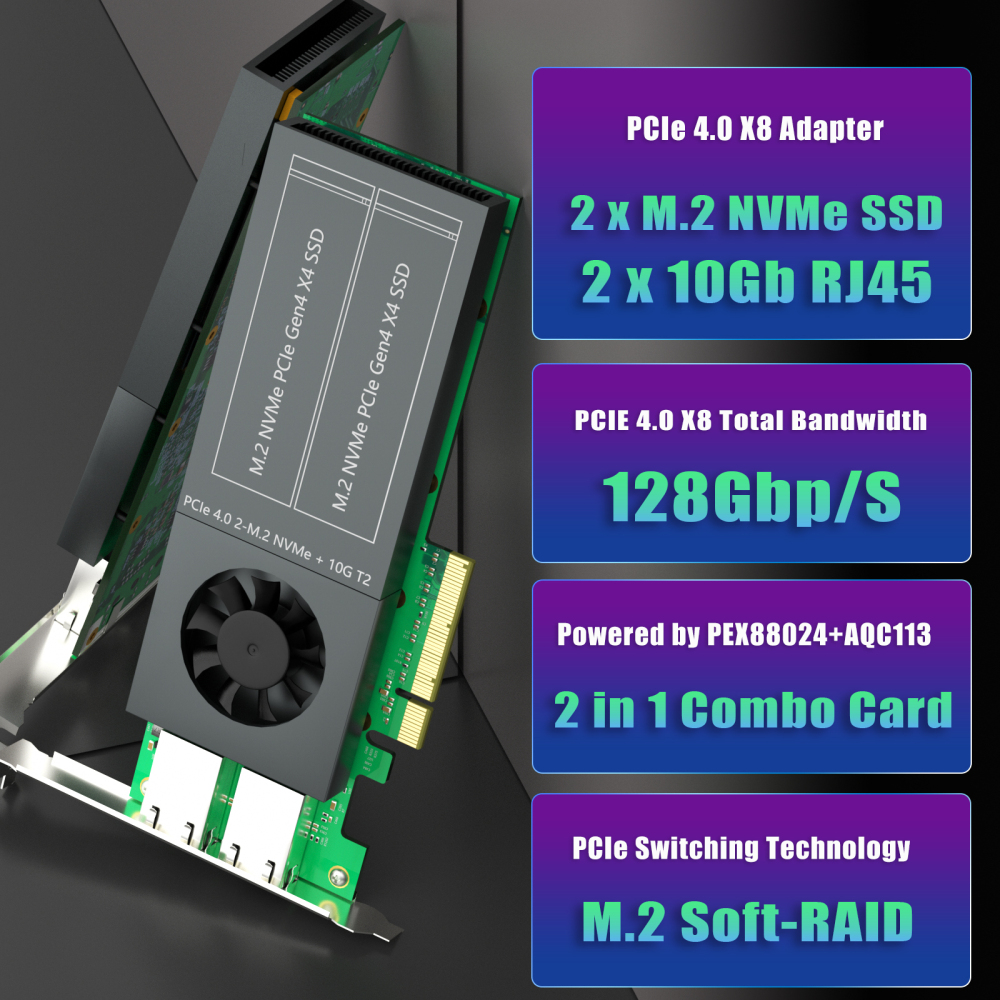

2 in 1 PCIE Combo Card – expands 2 x M.2 NVMe Key M ports and 2 x 10Gb Ethernet RJ45 ports via a PCIe 4.0 x8 interface.

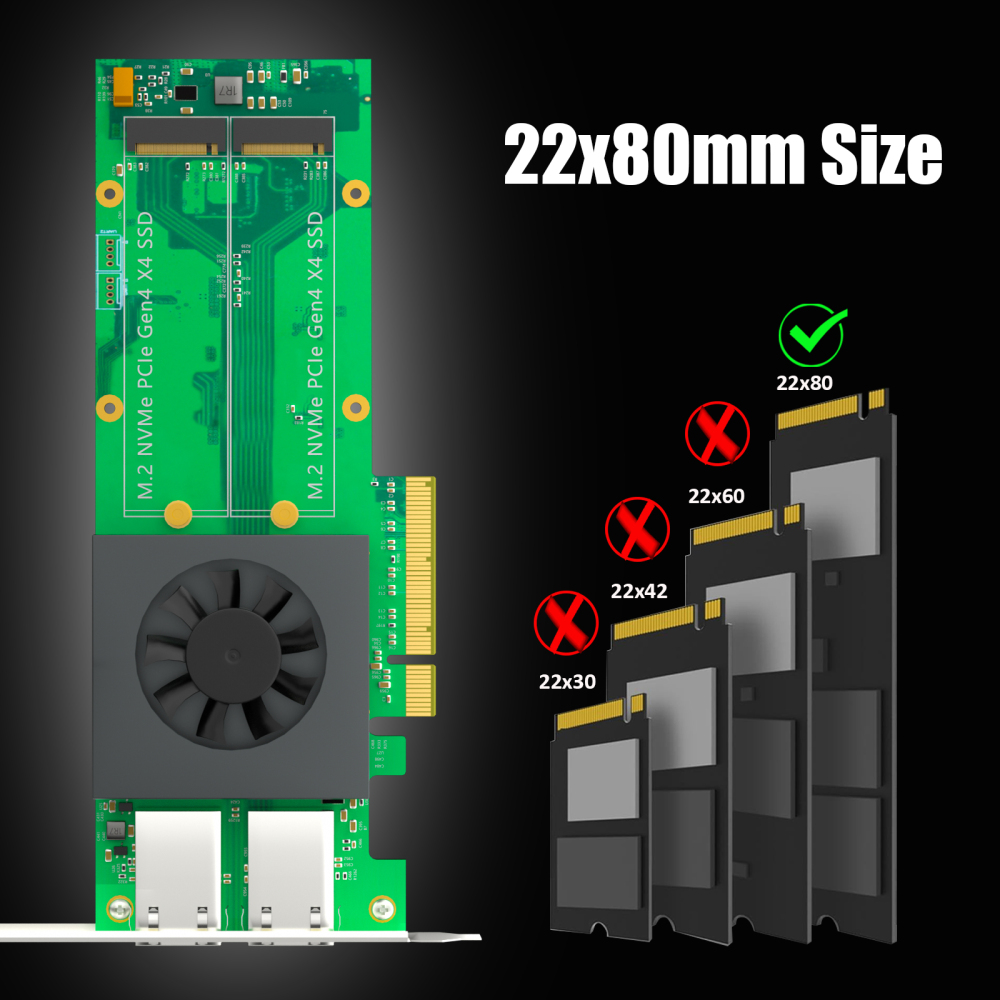

Powered by the PEX88024 controller with PCIe bifurcation technology – works with all motherboards, including macOS, no need for motherboard/CPU PCIe bifurcation support. Note: Exclusively supports 2280-form factor M.2 NVMe SSDs.
Supports software RAID configuration (no hardware RAID)

0.0 (0 Reviews)

0 Sold

~~$599.00~~ $559.00

Received successfully

Coupon Code

Description

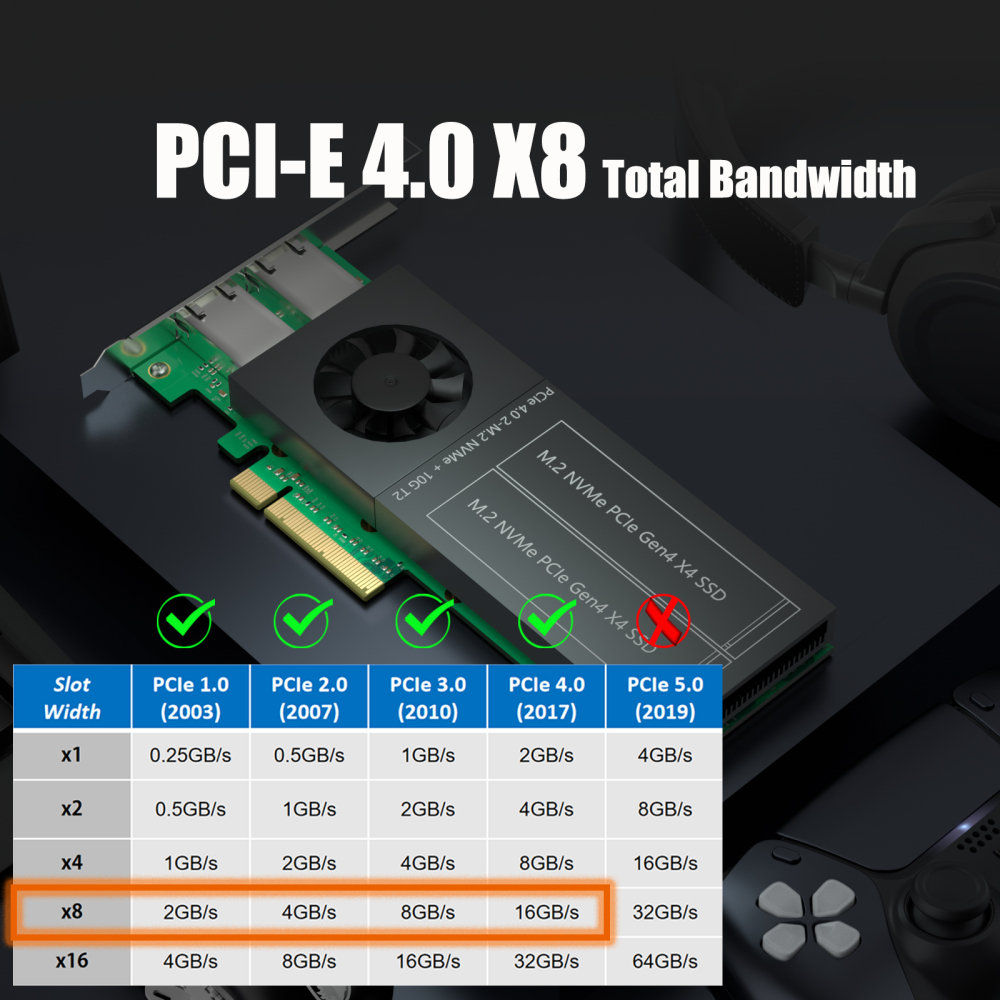

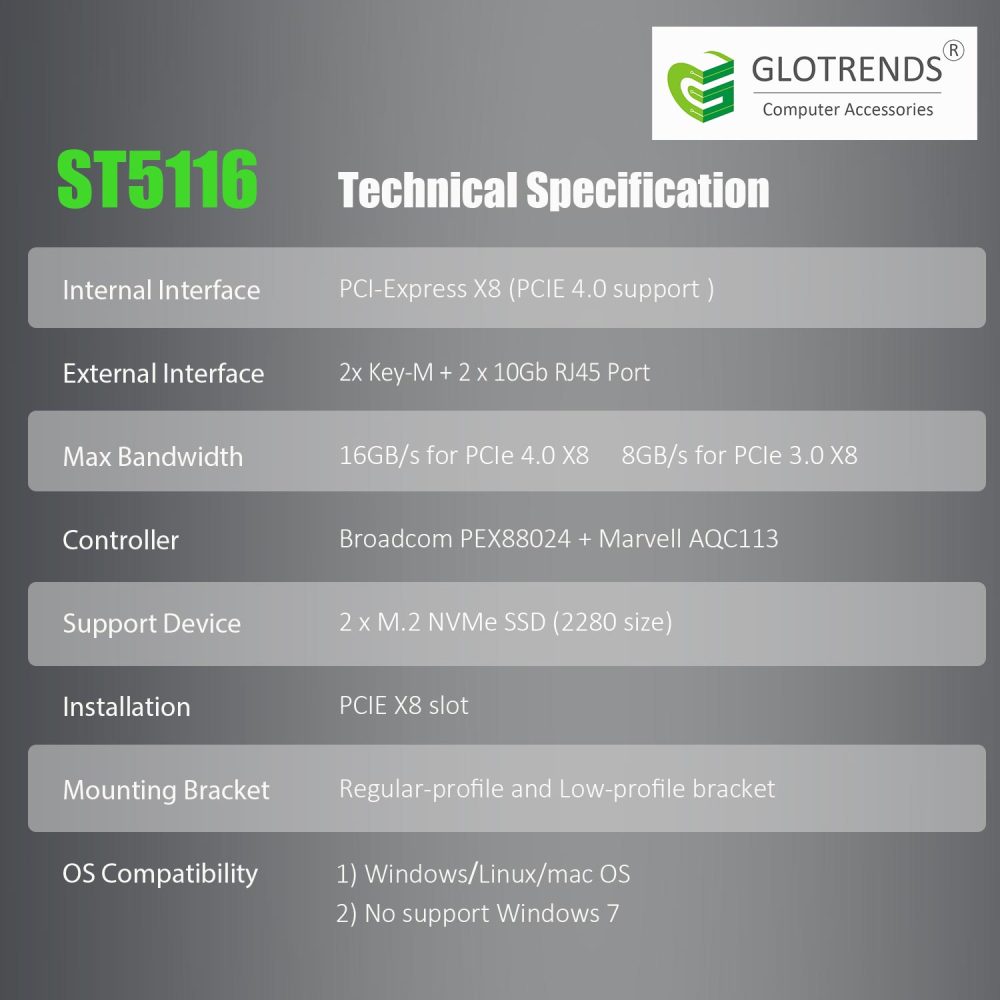

Interface to PC	PCI-Express 4.0 X8 (128Gbps speed at max), PCIE X8/X16 Installation
Interface to SSD	2 x Key M ( Support 2280 form factor)
Interface to Network	2 x 10Gb RJ45 Port
PCIe Bifurcation	Support,it powered by the PEX88024 controller with PCIe switching technology.
Hardware Platform	Intel and AMD (Note: not support Mac Pro)
RAID Setup	Software RAID setup via Windows Disk Management or Linux mdadm Utility
OS Compatibility	Windows and Linux (Note: not support windows 7)

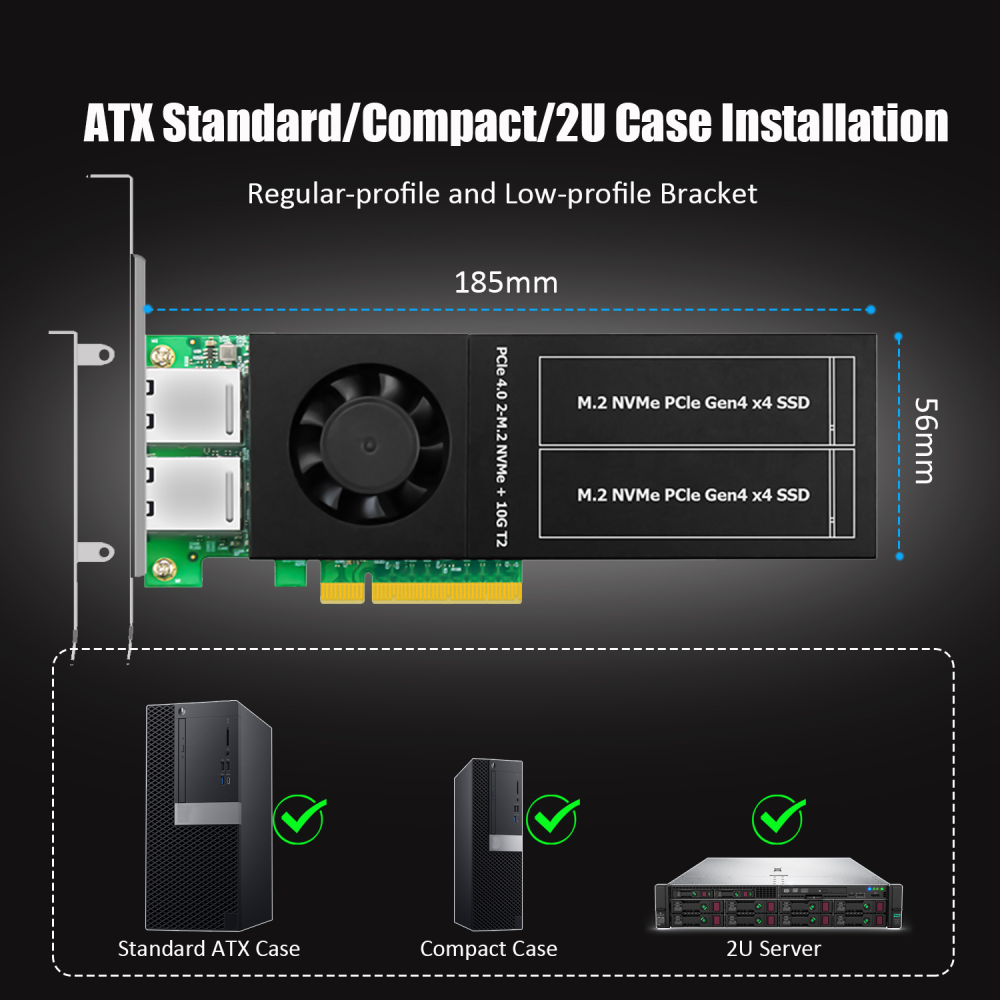

Installation	Low-profile and Regular-profile bracket

2 in 1 PCIE Combo Card – expands 2 x M.2 NVMe Key M ports and 2 x 10Gb Ethernet RJ45 ports via a PCIe 4.0 x8 interface. Compatible with PCIe x8/x16 slots (includes standard & low-profile brackets).
Powered by the PEX88024 controller with PCIe bifurcation technology – works with all motherboards, including macOS, no need for motherboard/CPU PCIe bifurcation support. Note: Exclusively supports 2280-form factor M.2 NVMe SSDs.
Supports software RAID configuration (no hardware RAID). Easily set up via Windows/Linux/macOS. Note: Intel’s RAID-on-CPU (VROC) requires a separate license purchase.
Enables OS booting from M.2 NVMe SSDs – requires OS reinstallation and BIOS/UEFI configuration. Note: Legacy motherboards may only support storage use (non-boot functionality). Note: New M.2 NVMe SSDs must be initialized and formatted before system recognition.

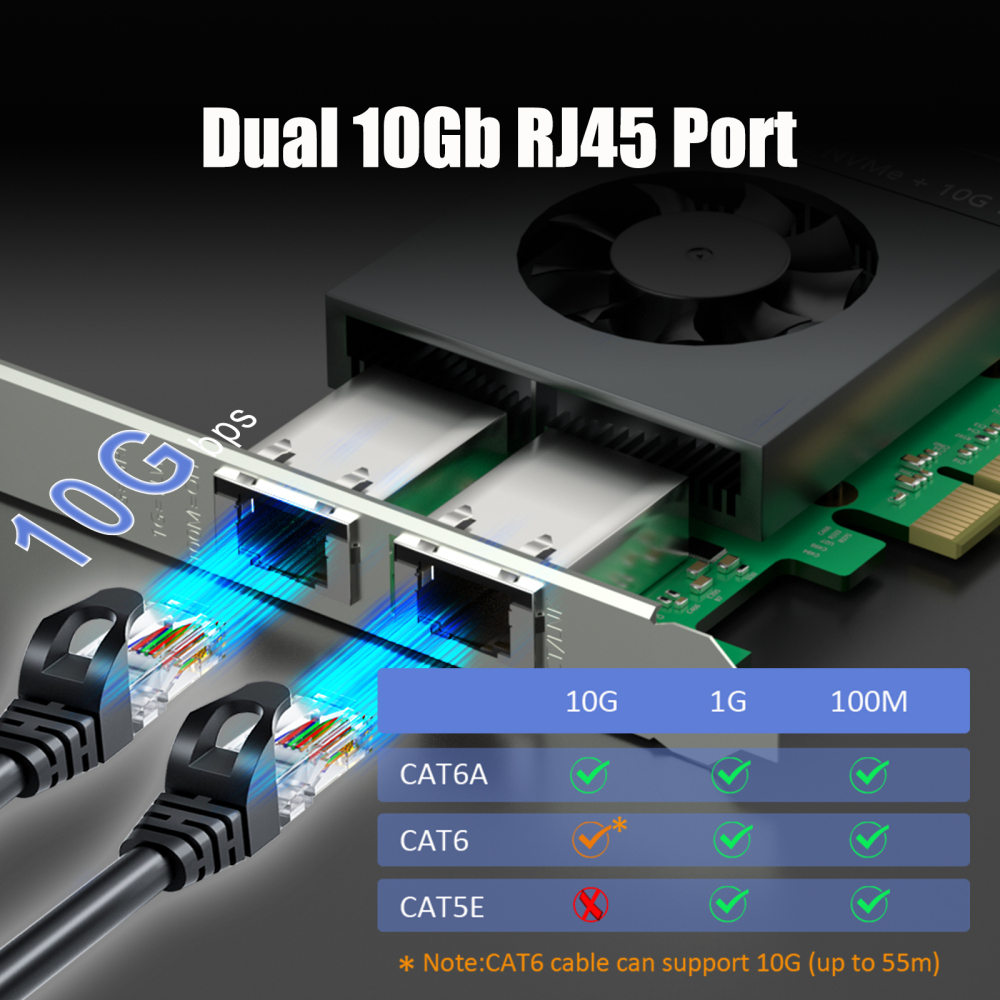

With Marvell AQC113, it provides 2 x Ethernet 10Gb RJ45 Port, 6-speed data rate (10Gb/5Gb/2.5Gb/1Gb/100Mb/10Mb).Cable requirement: 10GbE 100m through Cat 6a, 5GbE/2.5GbE 100m through Cat 5e.

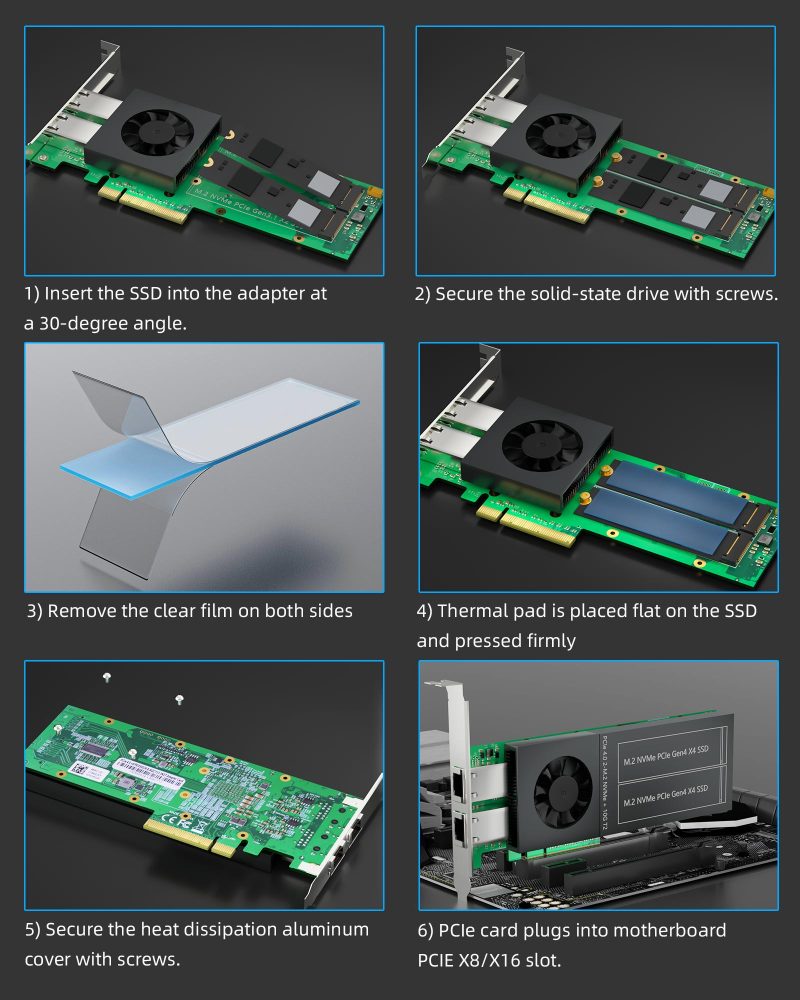

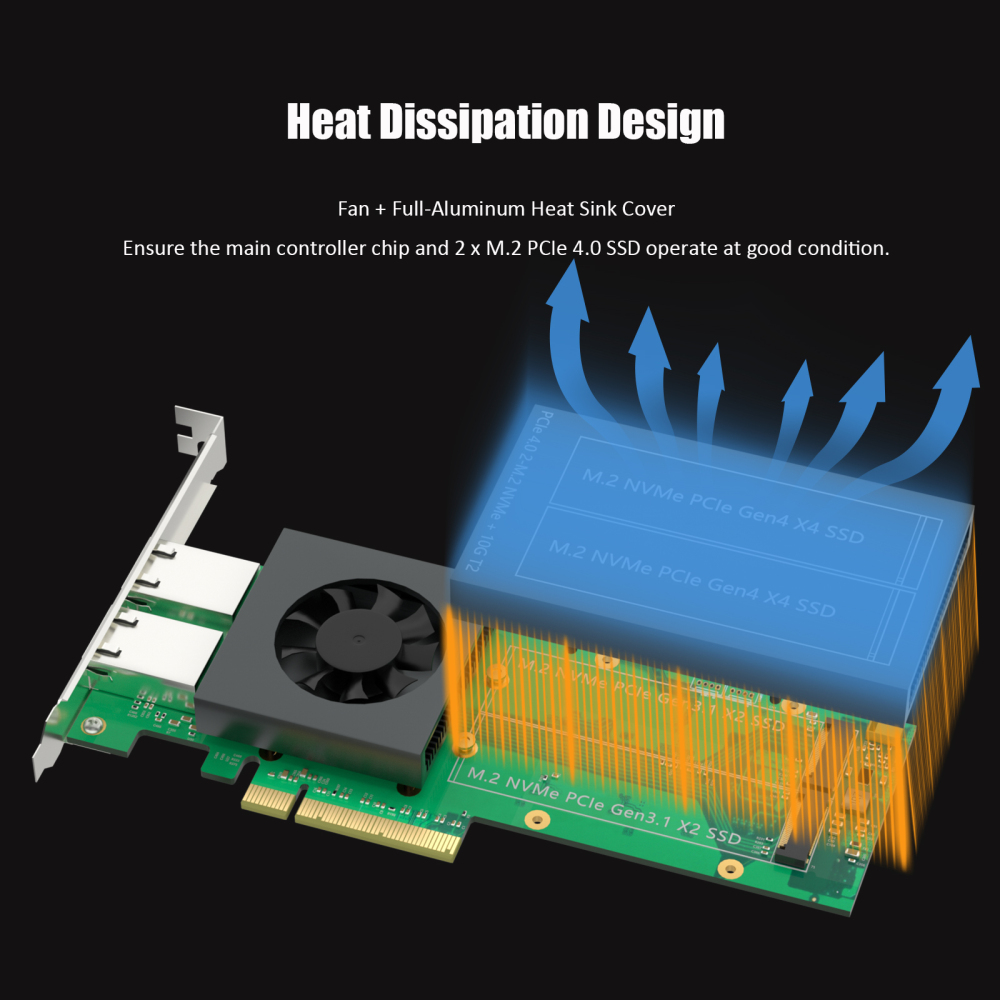

Oversized aluminum cooling cover covers the PEX88024 control chip and 2xM.2 NVMe SSDs to ensure that high-speed SSDs can run in good condition again. Built-in fan enhances air convection for better heat dissipation.
