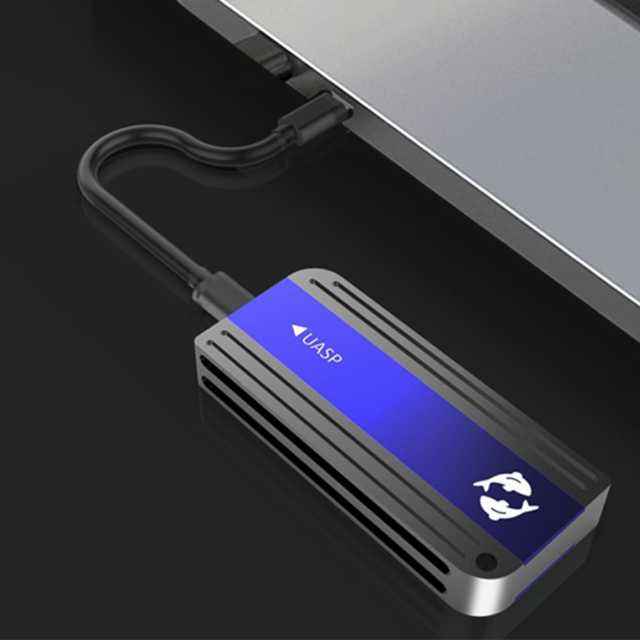

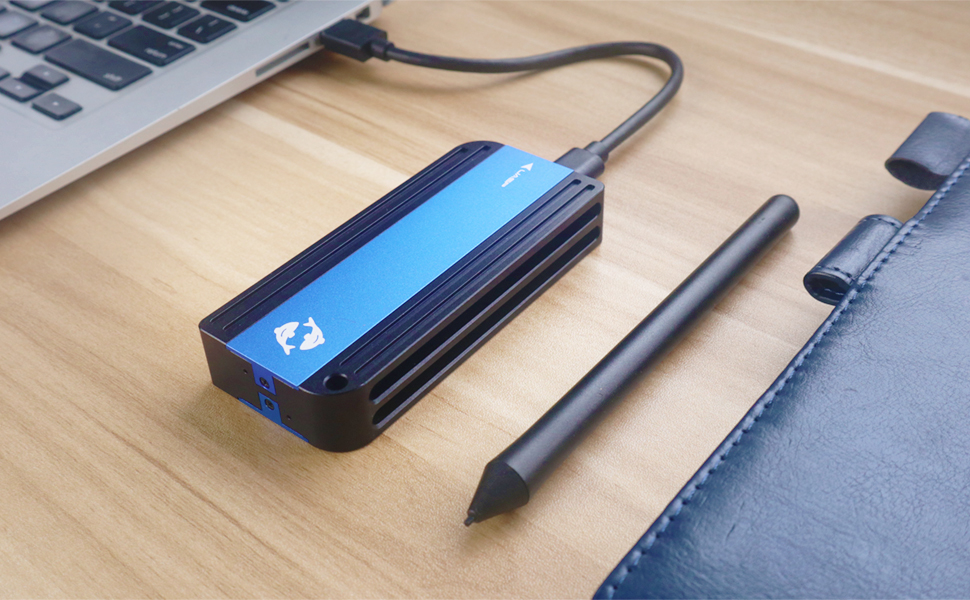

GLOTRENDS 2-Bay M.2 Enclosure for M.2 PCIE NVMe SSD (Key M)

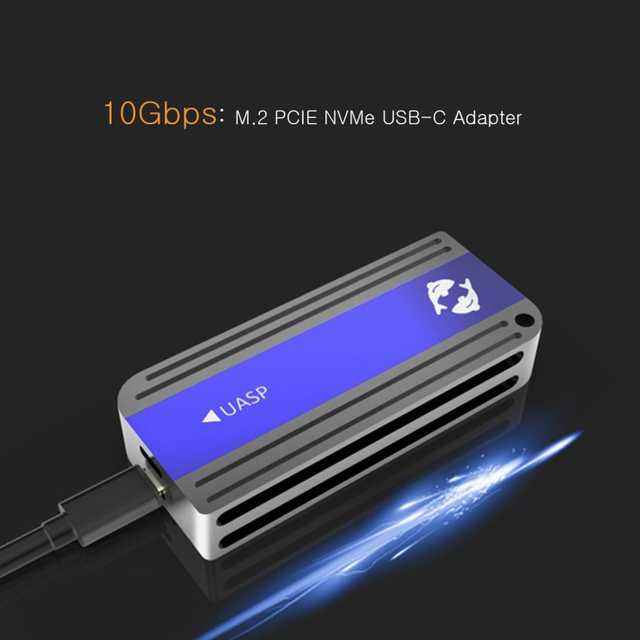

2-Bay M.2 PCIE NVME to USB-C 3.1 GEN2 10Gbps Enclosure

• Support M.2 PCIE NVME SSD(Key M)
• Support 4 Form Factor: 2230/2242/2260/2280mm
• USB-C 3.1 GEN 2 10Gbps interface, USB-C to C cable (10Gbps) and USB-C to A cable (10Gbps) included

Note: To reach 10Gbps speed, make sure your PC/laptop port is USB 3.1 GEN2 10Gbps. If USB 3.1 GEN1 or USB 3.0 (Blue color) port, it would be 5Gbps at max.

• Aluminum shell
• Screw installation
• LED indicates the status of the SSD
• Support UASP on Windows and Mac
• Support TRIM, S.M.A.R.T on Windows, but not Mac
• Compatible with Windows/Mac/Linux, Plug and Play, No Driver needed
• 2x10 pieces of Heat-conducting Silica Gel Pad for heat dissipation

Support M.2 NVMe SSD (Key-M):

• Support Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/970 EVO /970 PRO and other M.2 SSDs with PCI-E (M-KEY) Interface Type.
• Support Intel Optane SSD 800P SeriesS
• Support Intel SSD 760p SeriesS
• Support Intel SSD 660p SeriesS
• Support Intel SSD 600p Series

JMS 583 Chip for NVMe to USB Adapter:

• It is a USB 3.1 Gen 2 to PCIe Gen3 x 2 bridge controller between USB host and PCIe storage device. The USB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. Meanwhile, the downstream port of the JMS583 is compatible with storage device with PCIe interface, such as SSD. The PCIe port is compliant with PCIe Gen3 x 2 specifications.

Package:

1. Pisces 2-Bay M.2 Enclosure (SSD not included);
2. 2 x M.2 PCIE NVMe to USB-C Adapter;
3. USB C to C cable and USB C to A cable;
4. 2x10 pieces of Heat-conducting Silica Gel Pad for heat dissipation

To be noted:

1. Please remove the transparent protective films of Silica Gel Pad before using otherwise it will reduce the heat conduction effect;
2. Silica Gel Pad is Low Viscosity, will not cause damage to SSD.
