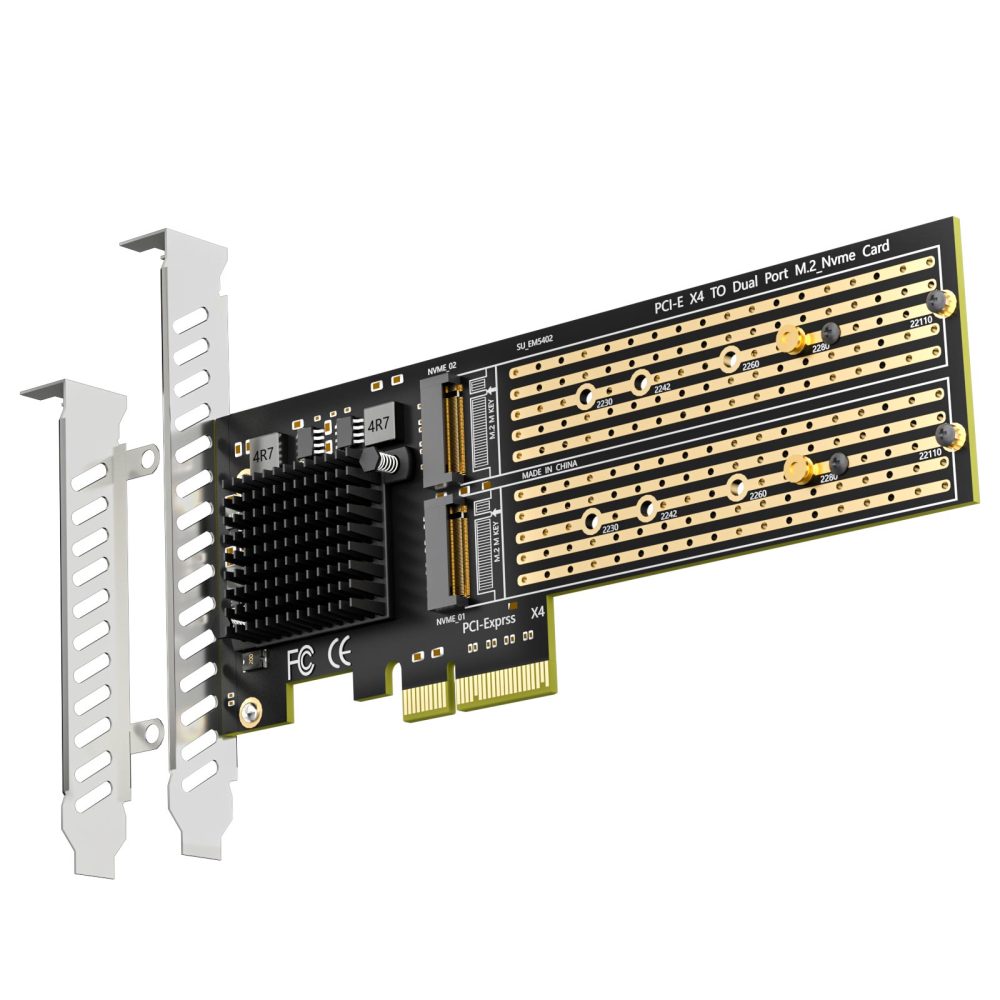

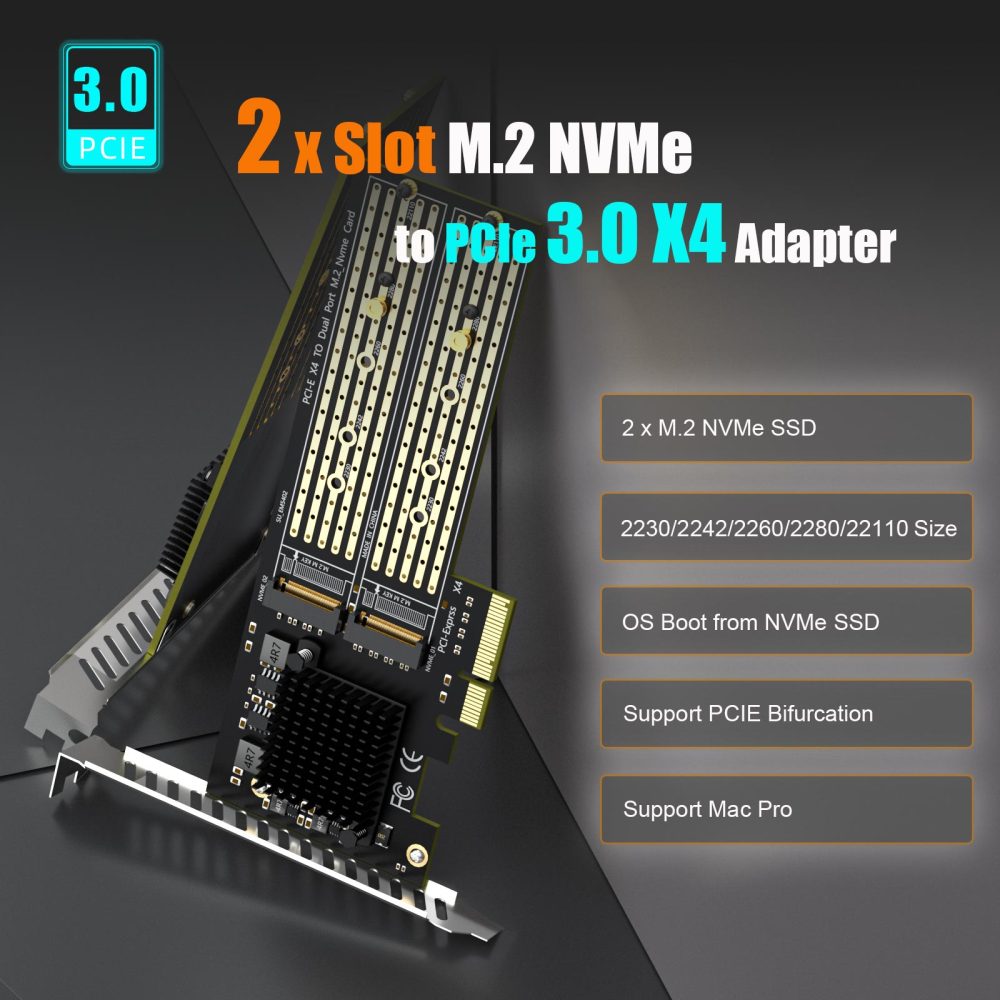

PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool

SKU: PA20
• Dual M.2 PCIe NVMe Adapter – Install two NVMe SSDs with PCIe splitter function for high-speed storage expansion.
• Soft RAID Support – Configure RAID 0/1/JBOD in Windows or Linux on Intel & AMD platforms.
• Mac Pro 5.1 Compatible – Works with legacy Mac Pro 5.1 systems for storage upgrade.
• ASM2812 Chipset – Ensures stable PCIe bifurcation and reliable performance.
• PCIe Bifurcation Function – Enables independent x4 lanes for each M.2 SSD.
• PCIe 3.0 x4 Bandwidth – Provides up to 32Gbps transfer speed, backward compatible with PCIe 2.0.
• Wide Motherboard Compatibility – Supports both PCIe 3.0 and PCIe 2.0 motherboards.
0.0 (0 Reviews)
29 Sold
$89.00 $79.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • Dual M.2 PCIe NVMe Adapter Card with PCIe Bifurcation Function, Compatible with None PCIe Splitter Function Motherboard
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • Dual M.2 PCIe NVMe Adapter Card with PCIe Bifurcation Function, Compatible with None PCIe Splitter Function Motherboard
1/1
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool
  • Dual M.2 PCIe NVMe Adapter Card with PCIe Bifurcation Function, Compatible with None PCIe Splitter Function Motherboard
  • Description

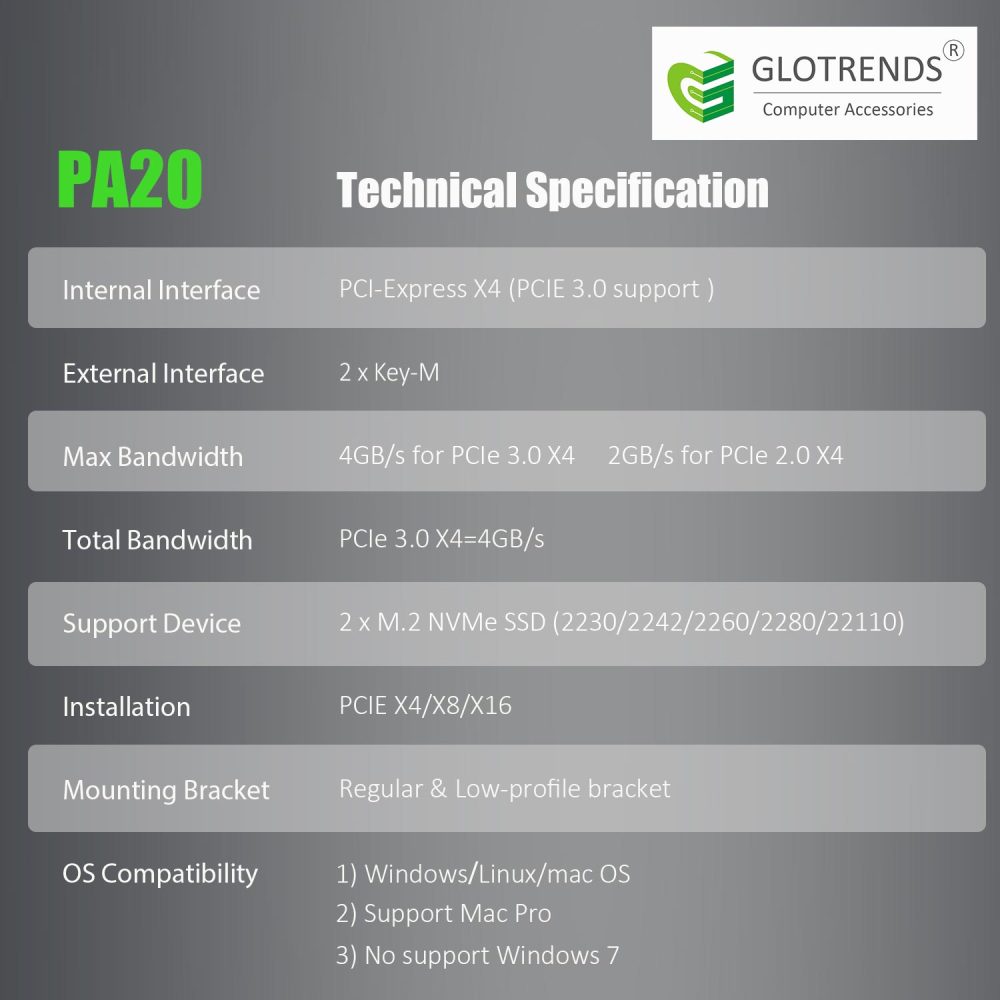

Interface to PC PCI-Express 3.0 X4 (32Gbps speed at max), PCIE X4/X8/X16 Installation

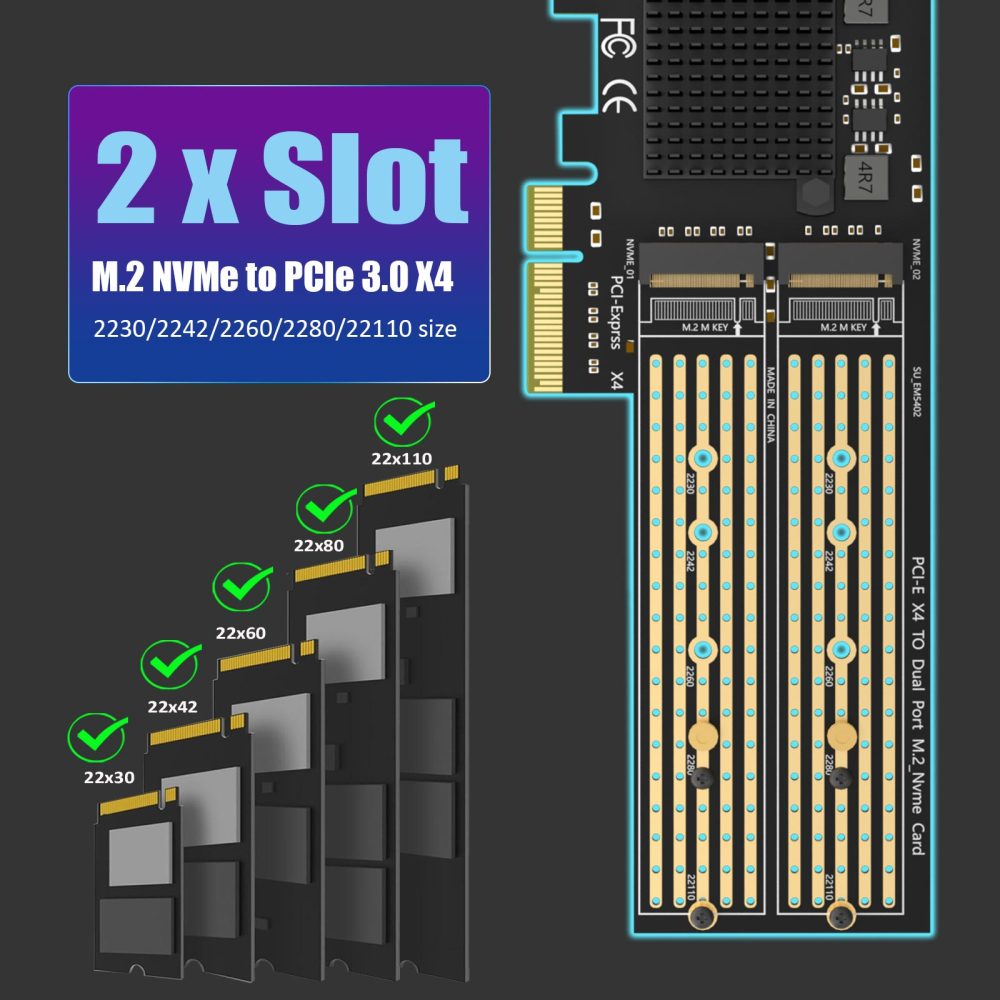

Interface to SSD 2 x Key M ( Support 2230/2242/2260/2280/22110 form factor)
OS Compatibility Windows/Linux/mac OS (Note: not support windows 7)
PCIe Bifurcation Support,it powered by the ASM2812 controller with PCIe bifurcation technology
Hardware Platform Intel and AMD, and support Mac Pro
RAID Setup Software RAID setup via Windows Disk Management or Linux mdadm Utility or macOS Disk Utility

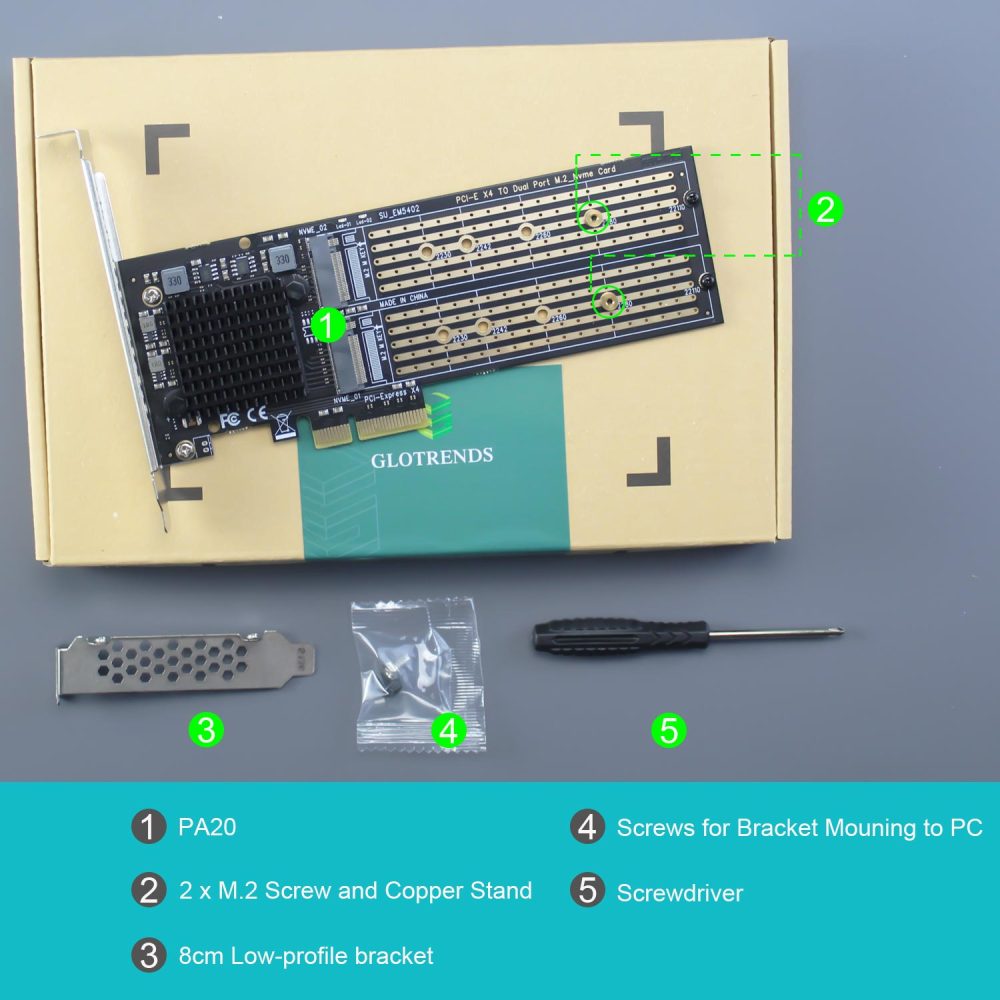

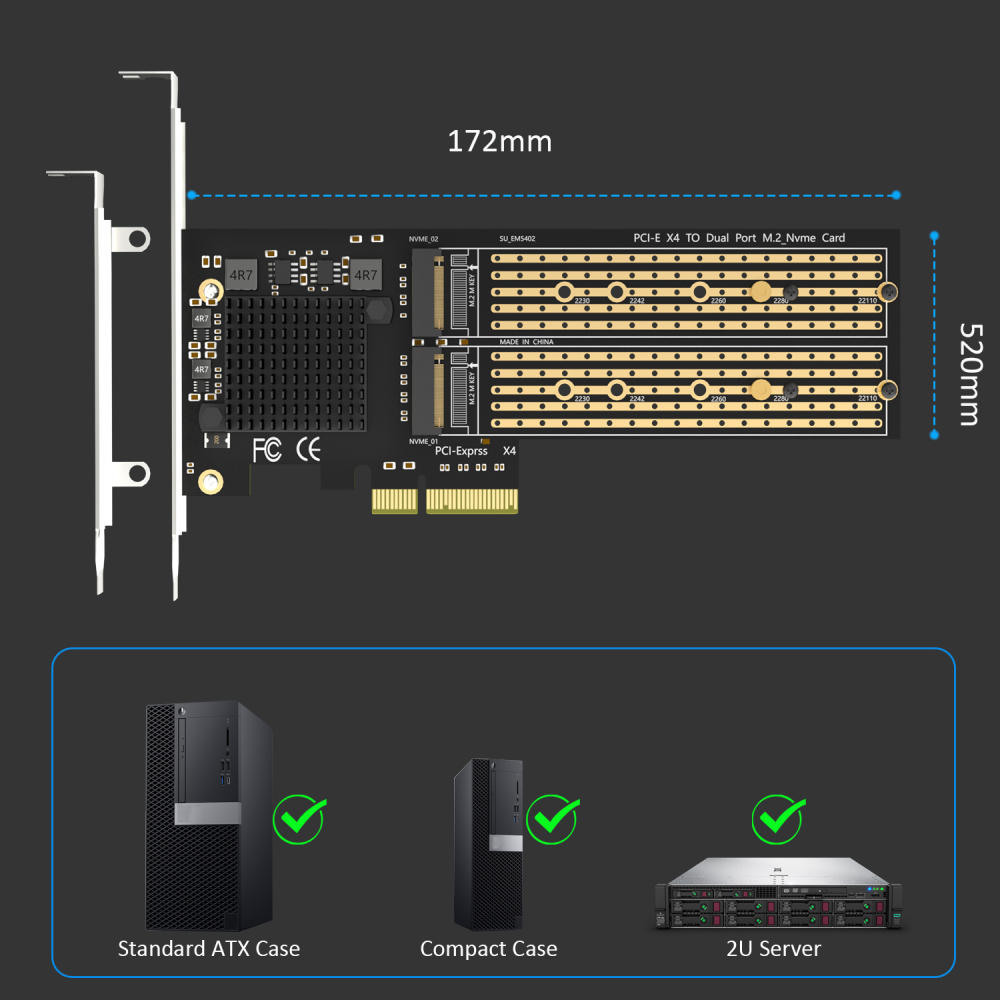

Installation Low-profile and Regular-profile bracket

  • Dual M.2 NVMe to PCIe 3.0 X4 Adapter: By installing 2 M.2 NVMe SSDs (Support 22110/2280/2260/2242/2230 M.2 NVMe SSD) on this PCIe 3.0 X4 adapter, your computer will be able to access 2 x M.2 NVMe SSDs at the same time (Note: Not support M.2 SATA SSD)
  • ASM2812 Chip Built-in PCIe Bifurcation: It can work with all kinds of motherboards (Note: The PCIe slot must be allocated with PCIe X4 lane bandwidth)

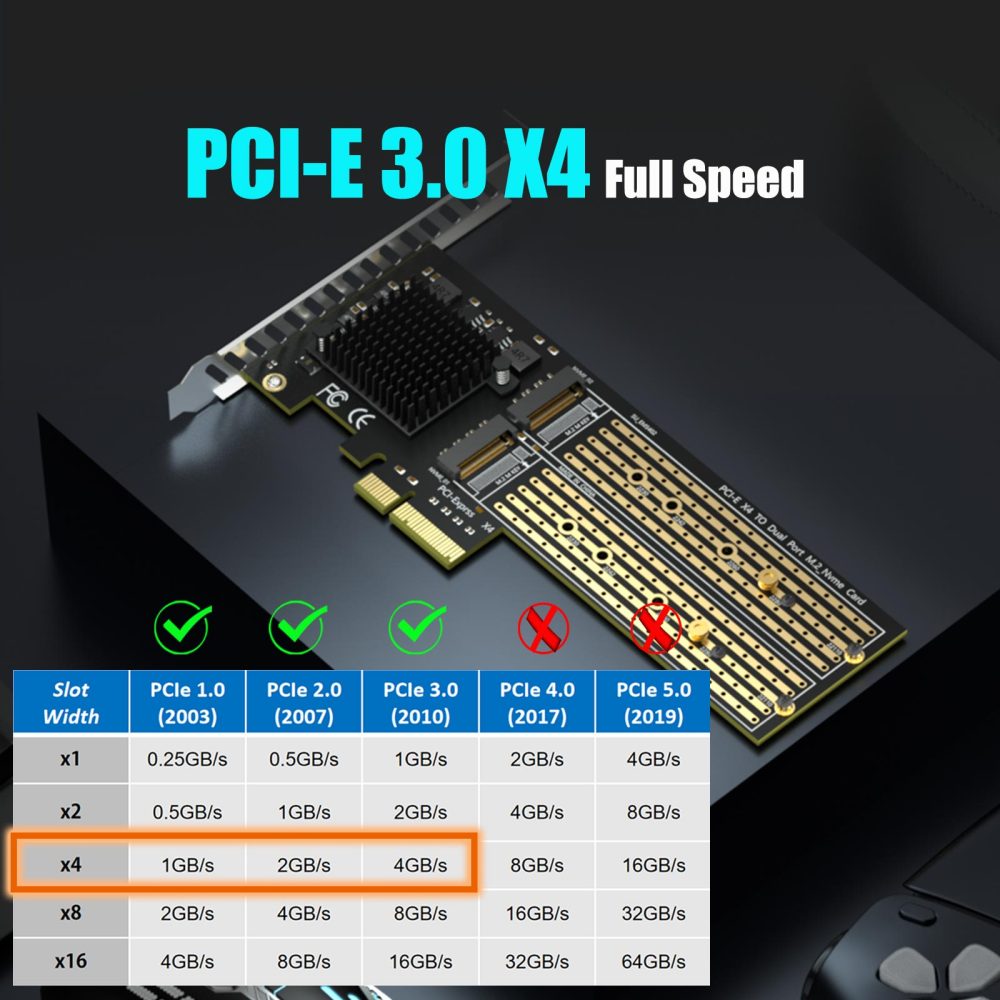

  • Upstream Bandwidth: 2 x M.2 NVMe SSDs sharing PCIE 3.0 X4 bandwidth (32Gbits/s = 4GB/s max), which means 2 x M.2 NVMe SSDs cannot operate at full speed at the same time.
  • Hardware Platform: Support Soft RAID in Intel/AMD platform, not support Mac Pro 5.1 (Note: To set up Intel's RAID-on-CPU (VROC), you need to purchase your license)

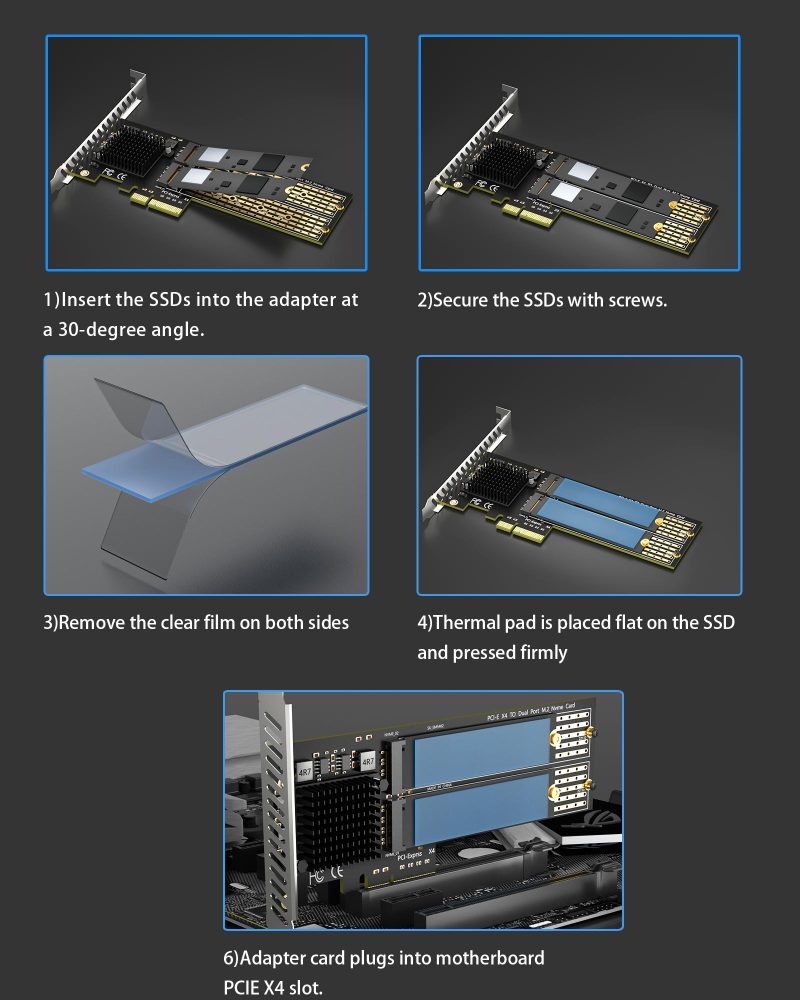

  • Support OS Booting: Reinstall the OS, and set up BIOS/UEFI boot from this M.2 NVMe SSD (Note: Some motherboards are too old to support OS booting. In this case, M.2 NVMe SSDs can be used as storage disks)
  • OS compatibility: Plug-and-play in Windows 11/10/8/Linux/Mac OS (Note: Not support Windows 7). The new M.2 NVMe SSD needs to be initialized and formatted before it can be recognized by the computer host.
  • Silent Heatsink ensures this adapter runs for a long time without losing performance.
