Features:

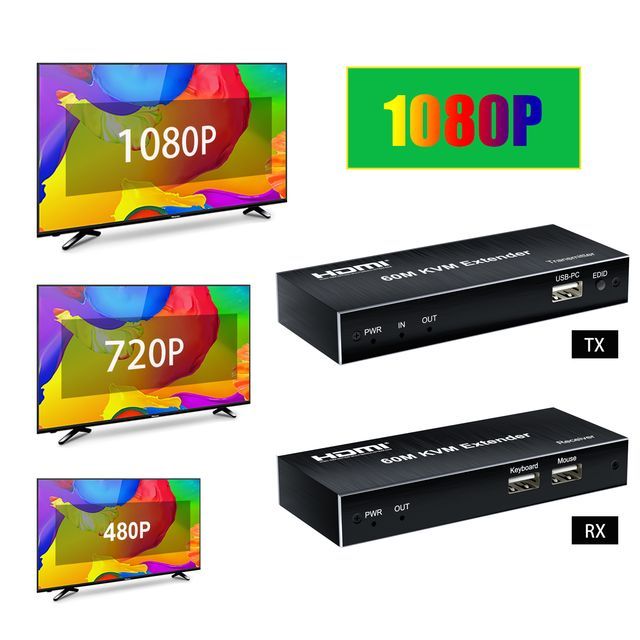

* Support 1080P/60Hz;
* Support local loop-out;

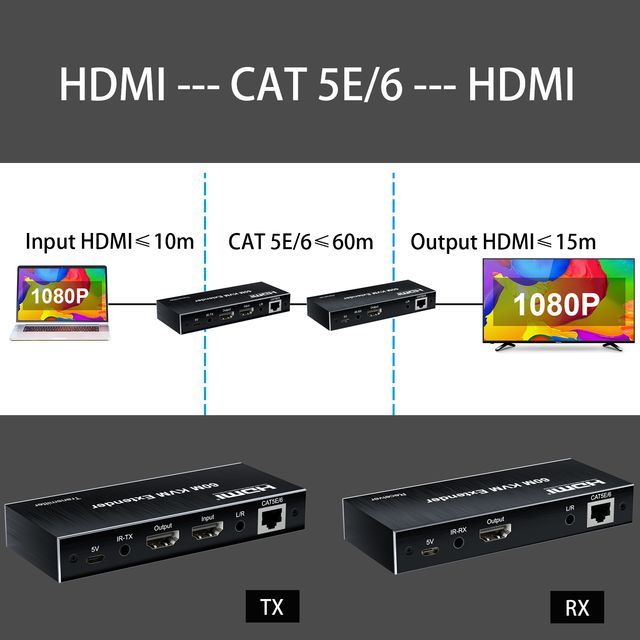

* Support 60m long distance transmission;
* Low power consumption, low temperature, and high safety;
* Both the TX and RX support 3.5MM left and right audio output;

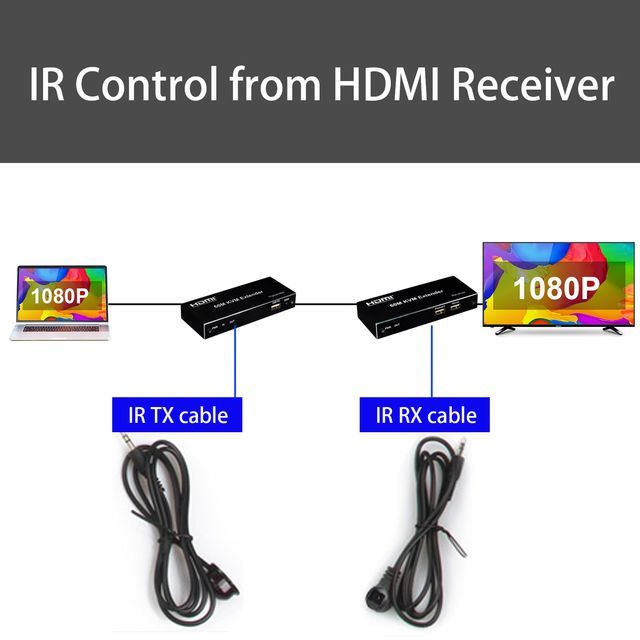

* Support IR control;
* Support mouse and keyboard extension;
Specifications:
Length of CAT-6/CAT-5E cable between Rx and TX ……………............… Up to 60 meters
HDMI Input …..…………………...………............... 1080p/1080i/720p/576p/576i/480p/480i
HDMI Output …..…………….…...………............... 1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth ……………………………………………………………………..…… 150MHz
Max baud rate ...…………….…….………………….………….……………………… 4.5Gbps
Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p
Output DDC signal ………………………………………………………..…… 5Volts p-p (TTL)
Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ....................................... ≤15m AWG26 HDMI standard cable
TX Max working current ………………………………………...………….……………. 450mA
RX Max working current …………………………………………...…………………..… 350mA
Power adapter format ...……...…… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..…………….………………….………...… (-15 to +45℃)
Operating Humidity range ………………………….….….… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………..… 122x50x19 (mm)
TX Weight …..……………………………………………..………………………........…… 108g
RX Weight .................................................................................................................... 108g
