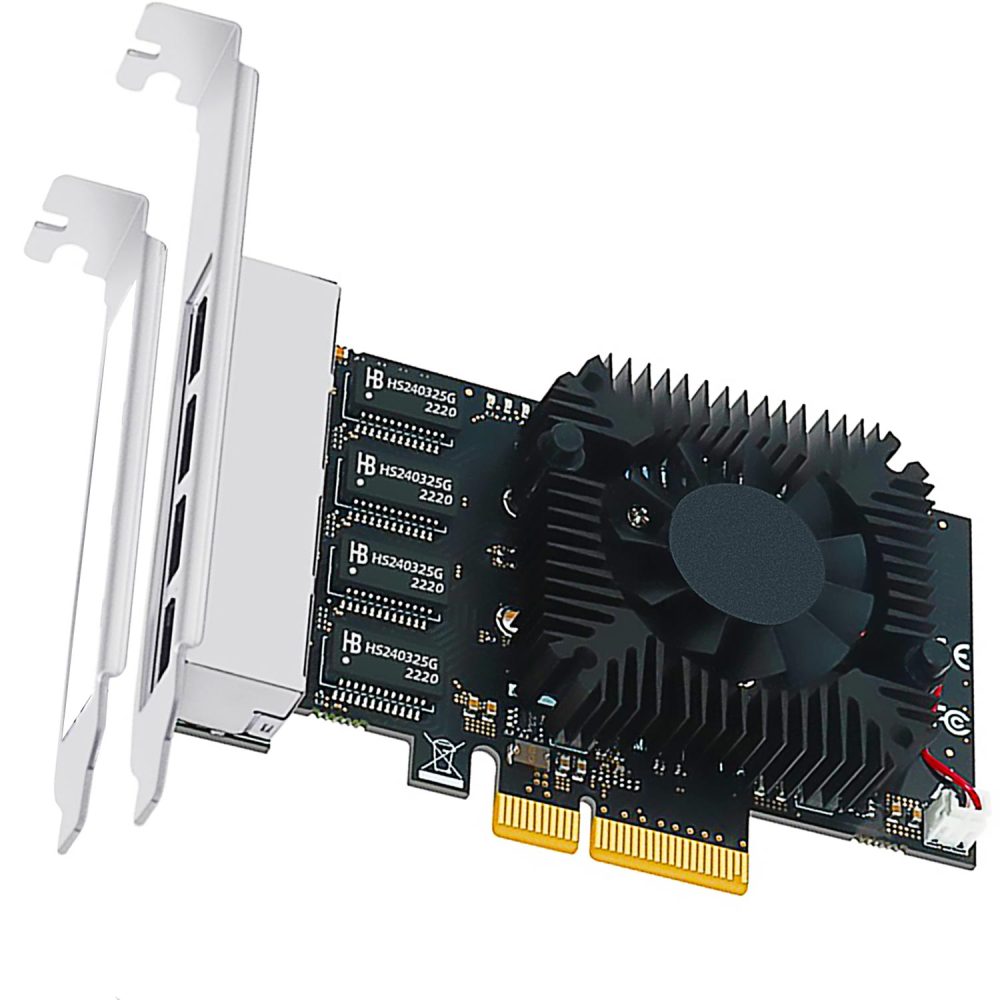

Quad Port 2.5Gbps PCI-E NIC Ethernet Network Card, PCIE 2.0 X2 (10Gbps ) Upstream and 6.4Gbps Downstream Bandwidth

Name: Quad Port 2.5Gbps PCI-E NIC Ethernet Network Card, PCIE 2.0 X2 (10Gbps ) Upstream and 6.4Gbps Downstream Bandwidth
Brand: GLOTRENDS
SKU: LE8245F
Price: 59 USD
Availability: InStock
Rating: 4.8 (39 reviews)

SKU: LE8245F

1) 4 port PCIe network card;
2) Support 100M/1000M/2.5Gbps per port;
3) PCIE 2.0 X2 (10Gbps ) upstream and 6.4Gbps downstream bandwidth;
4) 4 x RTL8125BG Chip

4.8 (39 Reviews)

0 Sold

~~$79.00~~ $59.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

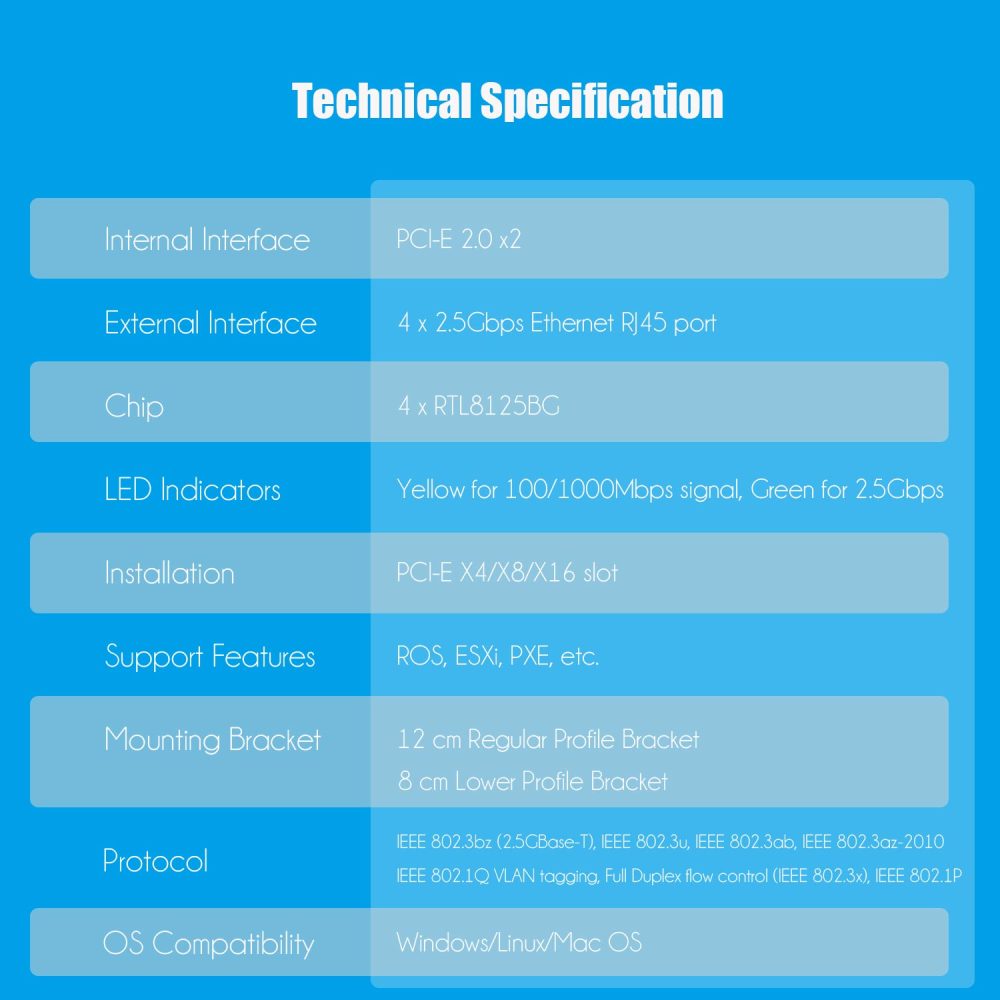

Description

Quad Port Gigabit Ethernet Network Card: 4 x 10/100/1000Mbps/2.5Gbps Ethernet RJ45 port to PC/Server PCI-Express X4/X8/X16 slot, can not install at PCIe X1 slot

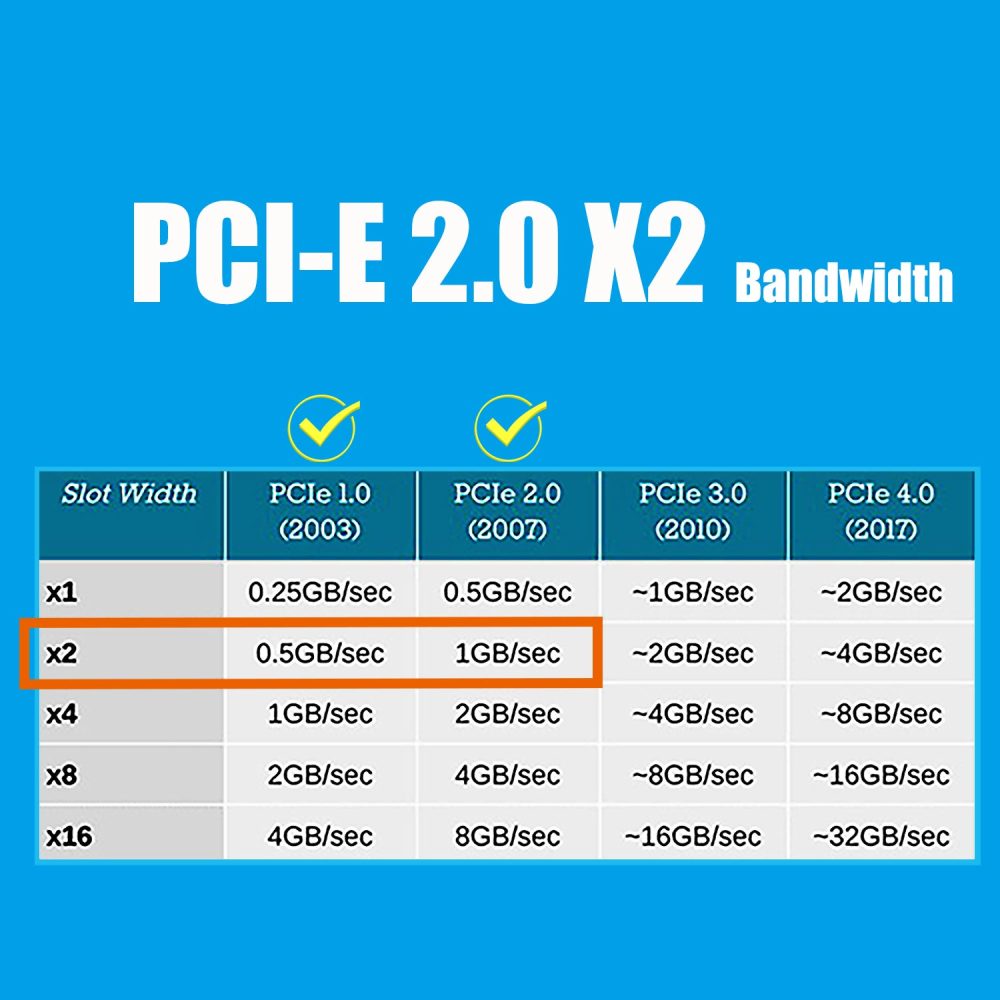

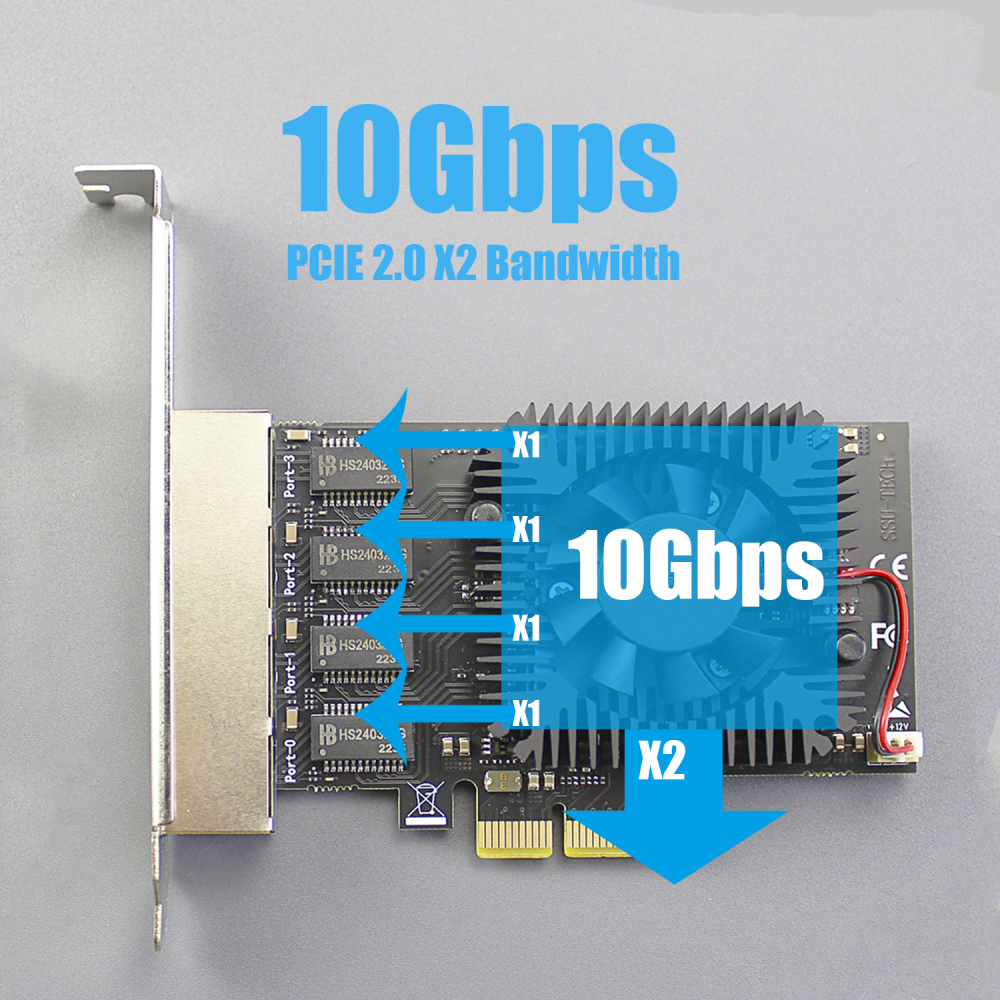

Speed capacity: PCIE 2.0 X2 (10Gbps ) upstream and 6.4Gbps downstream bandwidth. So 4 LAN ports share 6.4Gbps, only 2 ports can operate at full 2.5Gbps simultaniously, and the other two ports operate at 100/1000Mbps.
OS Compatibility: Windows/Linux/MAC OS/DOS; Centos/RHEL/Ubuntu/Debian/DSM/OpenWrt/PFSense/OPNSerse/IKUAI; VMWare ESXi 5.x and 6.x/Proxmox/unRaid. (Does not support VMware ESXi 7.0 or above)

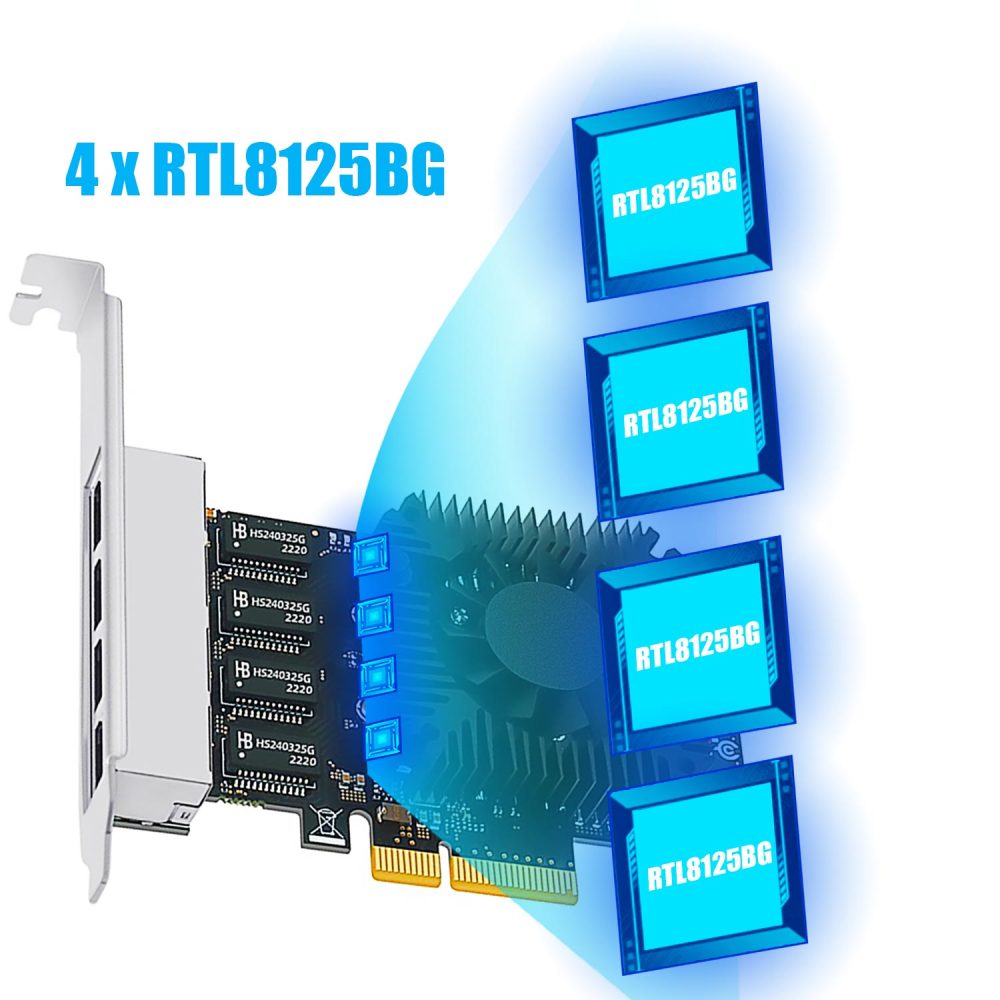

4 x RTL8125BG Chip: Compliant with IEEE 802.3bz (2.5GBase-T), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az-2010,IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.1Q VLAN tagging, Full Duplex flow control (IEEE 802.3x)
LED Indicators: Yellow for 100/1000Mbps signal, Green for 2.5Gbps

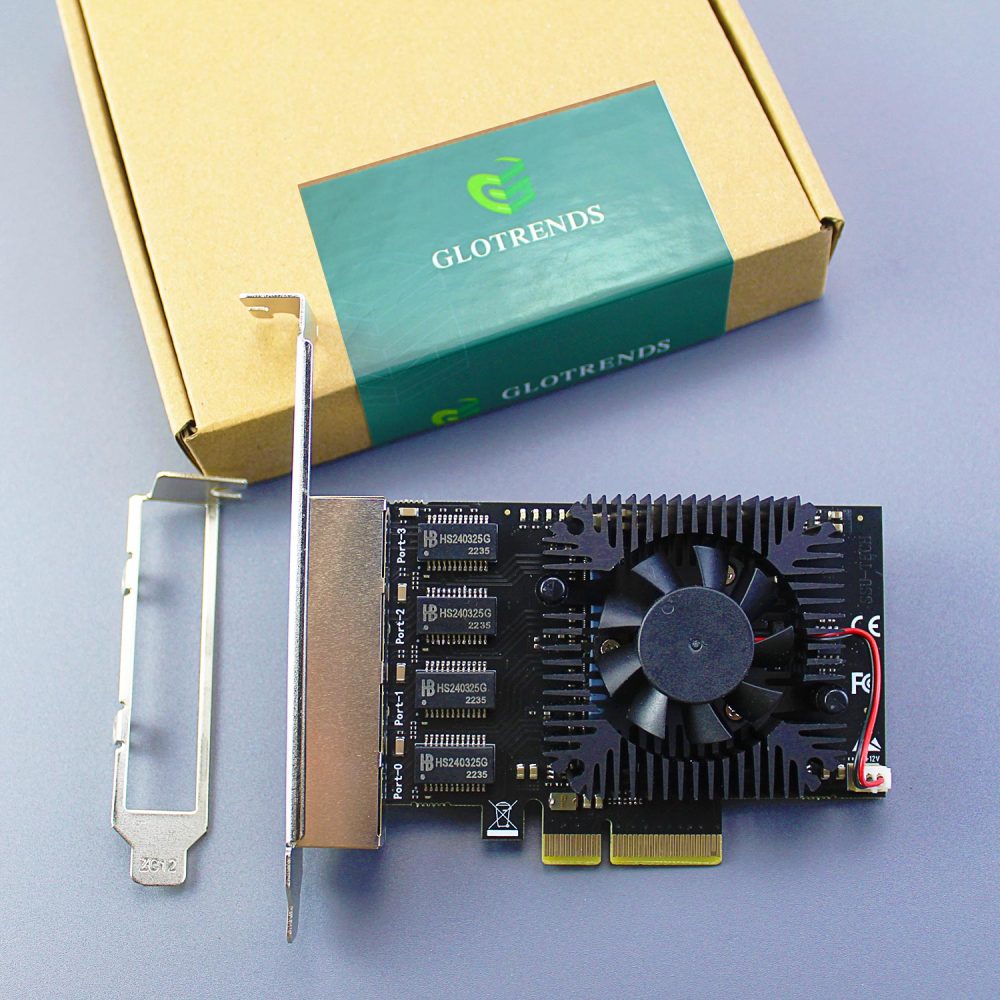

8cm Low-Profile Bracket for 2U case, and 12cm Full-Height Bracket for 4U case

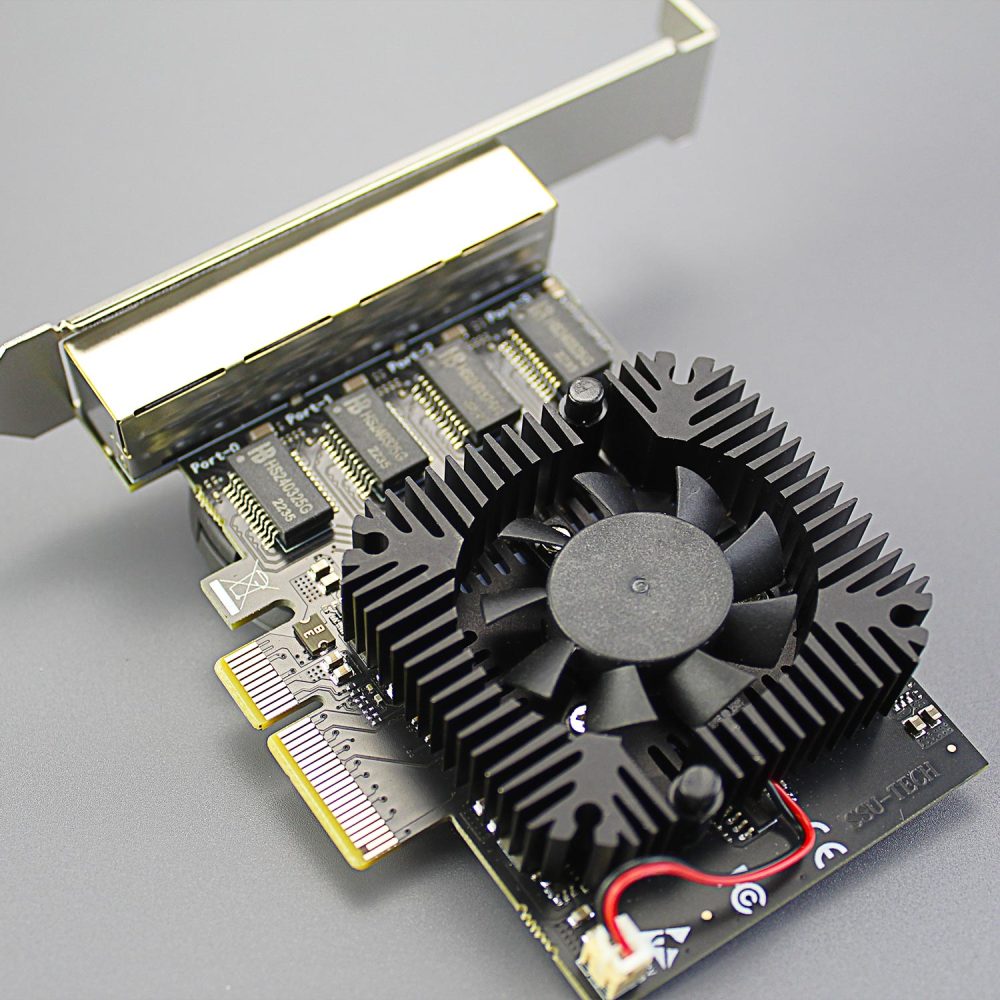

FAN Heatsink for heat dissipation: Reduce the temperature quickly and maintain the stability of network transmission.

Wake-On-LAN and RealWow Technology (remote wake-up): remotely power on/off your computer with WOL, good for centralized management
Driver Installation: No driver required in Windows; and you may need to download RTL8111H driver from Realtek website if OS can not recognize the NIC card.

Quad Ports PCI Express 10/100/1000/2500M Ethernet on Motherboard, Notebook, or Embedded systems

Integrated 10M BASE-Te and 100/1000M/2.5G BASE-T 802.3 compatible transceiver
Supports 2.5G Lite (1G data rate) mode
Auto-Negotiation with Extended Next Page capability (XNP)
Compatible with NBASE-TTM Alliance PHY Specification
Supports PCI Express 2.1
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Supports jumbo frame to 16K bytes
Supports quad core Receive-Side Scaling (RSS)
Supports Protocol Offload (ARP & NS)
