Features:
* Support HDCP1.4 ;
* Support Full 3D ;

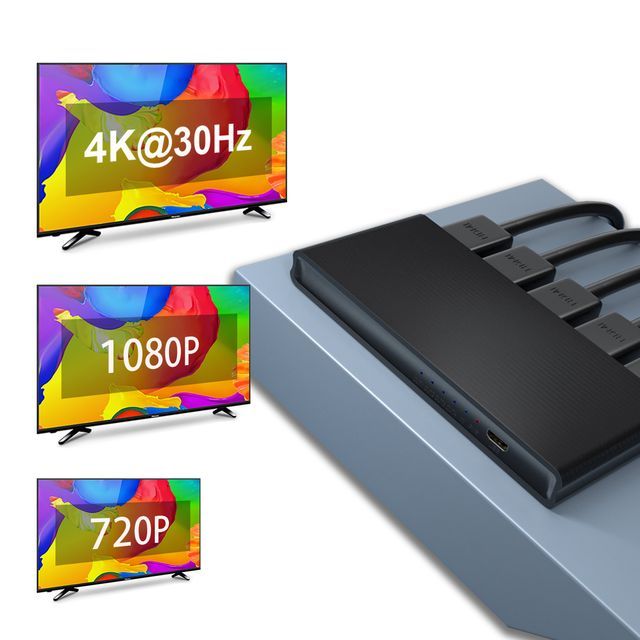

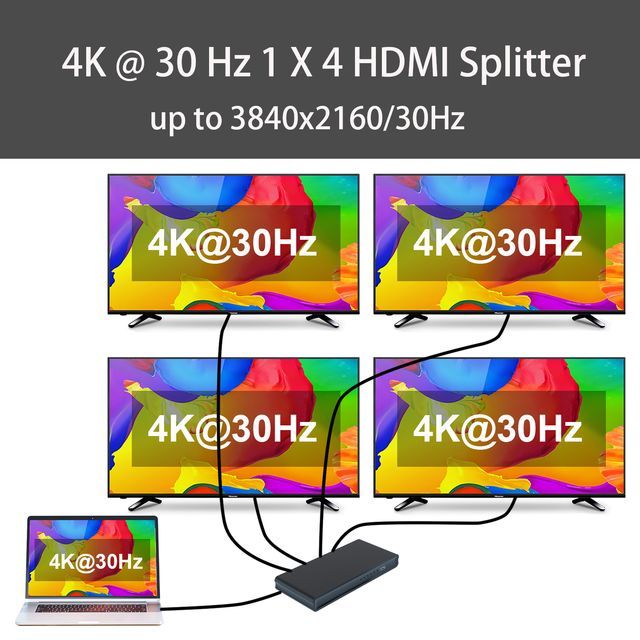

* Support HDMI resolution up to 3840x2160/30Hz ;
* Support deep color 8/10/12bit ;

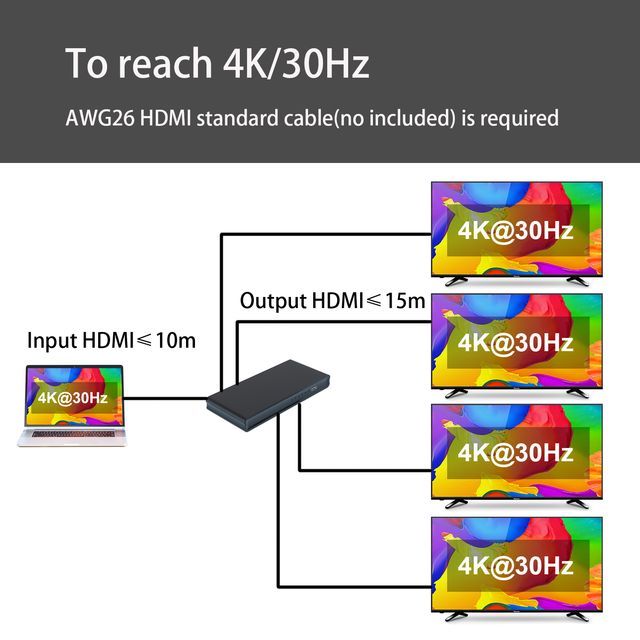

* Support input up to 10 meters AWG26 HDMI standard cable length,
output up to 15 meters AWG26 HDMI standard cable length(4K/30Hz resolution)

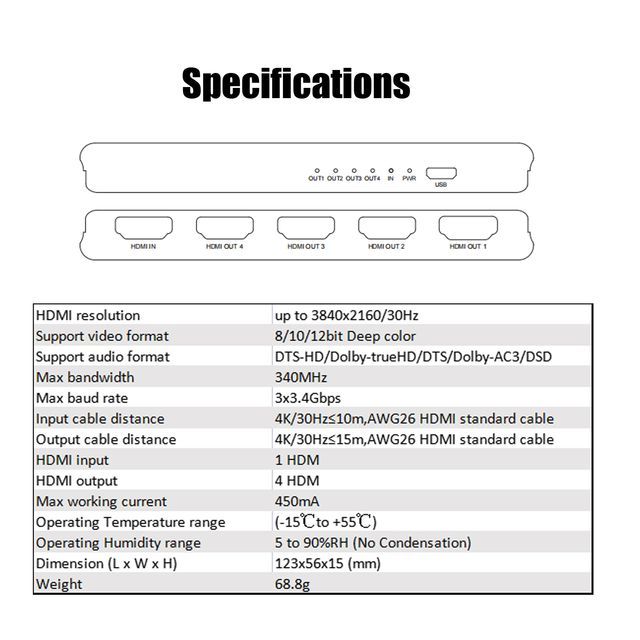

Specifications:
HDMI resolution ………………………………..………….……….……up to 3840x2160/30Hz
Support video format ……………………………………...……..………8/10/12bit Deep color
Support audio format…………………....…….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………...…………………………………………...……. 340MHz
Max baud rate……………….…….…………....………………….……………….... 3x3.4Gbps
Input cable distance.…..….…………….......…4K/30Hz≤10m,AWG26 HDMI standard cable
Output cable distance .…..….…….…....…..…4K/30Hz≤15m,AWG26 HDMI standard cable
HDMI input……………………………………....…………………………………………1 HDMI
HDMI output…………………………………..……………………………………………4 HDMI
Max working current……………………………………..………………………………....450mA
Operating Temperature range………………………………….….……………(-15℃to +55℃)
Operating Humidity range ..…………………………...…… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………….............………….....………………. 123x56x15 (mm)
Weight …….…..…………………………………..………………..…….……………...… 68.8g
