Features:
* Support HDMI 1.4/HDCP1.4;
* Support local loop-out ;
* Support 120m long distance transmission;
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;

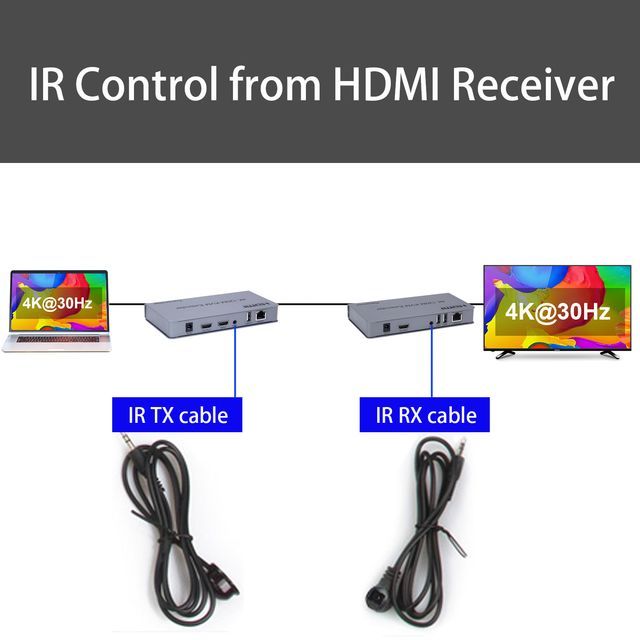

* Support IR control;
* Support USB mouse and keyboard extension;

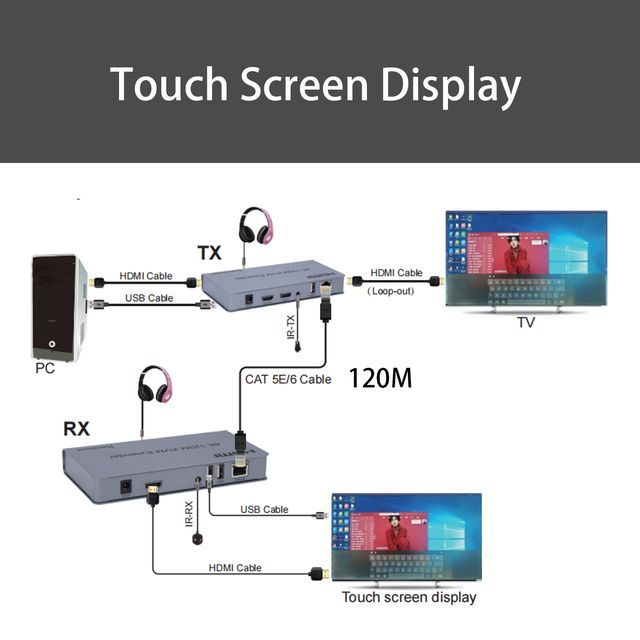

* Support USB port touch screen function
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX …………….......................... 120 meters
HDMI Input …..…………………...……….................... 4k/1080p/720p/576p/576i/480p/480i
HDMI Output …..…………….….................................. 4k/1080p/720p/576p/576i/480p/480i
Max bandwidth ………………………………………………………………………….. 340MHz
Max baud rate ……………….…….………………….………….…………………... 3x3.4Gbps
Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p
Output DDC signal …………………………………………………................. 5Volts p-p (TTL)
Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable
TX Max working current ………………………………………...………….……………. 350mA
RX Max working current …………………………………………...…………………….. 200mA
Power adapter format ………...…... Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..…………….………………………....…… (-15 to +55℃)
Operating Humidity range ………………………….….…… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………….…...… 107x105x27.3 (mm)
TX Weight …..……………………………………………..………………………........…… 499g
RX Weight .................................................................................................................... 494g
