Features:
1:120M long distance transmission

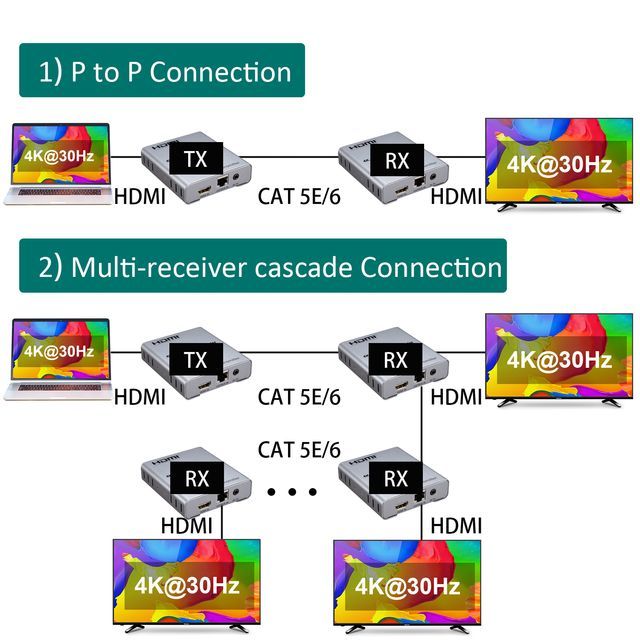

2:Multi-receiver cascade transmission
3:Low power consumption, low temperature and high safety
Specifications:

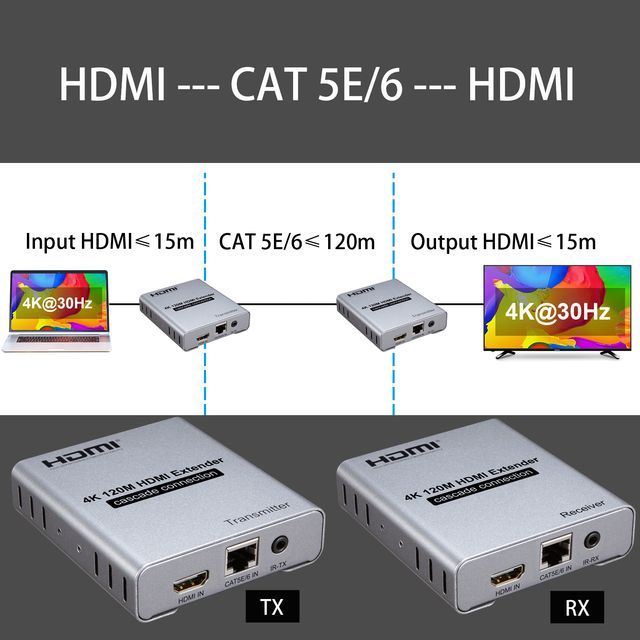

Length of CAT-5E/CAT-6 cable between Rx and TX …..….…................... up to 120 meters

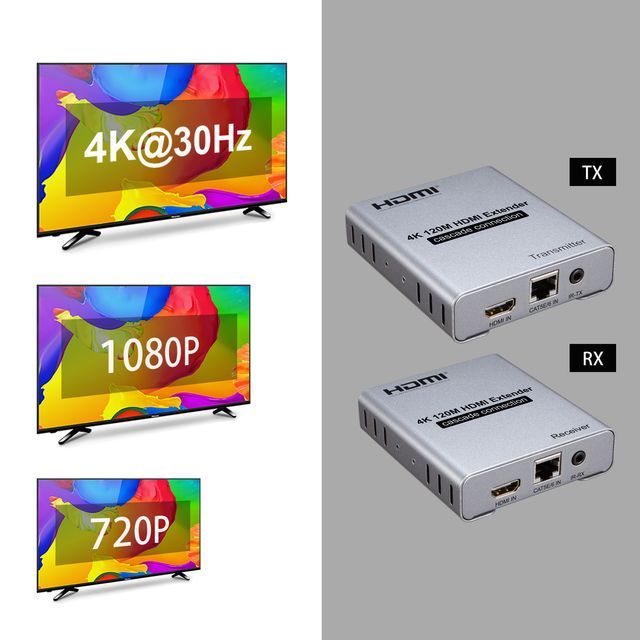

HDMI input …..………...............….........…................. 4K/1080p/720p/576p/576i/480p/480i
Support audio format .……………......………………………….................. DTS/Dolby/LPCM
HDMI output …..…………….…...….....………............ 4K/1080p/720p/576p/576i/480p/480i
Max bandwidth ……………………......…………………………………….................. 340MHz
Max baud rate ……………….………….……….....…………………….................. 3.4Gbpsx3
Input video signal ………....................….………..………..…………….…… 0.5~1.5Volts p-p
Output DDC signal ……………………...……..……………...................…… 5Volts p-p (TTL)
Input HDMI cable distance ………….…...................... ≤15m AWG26 HDMI standard cable
Output HDMI cable distance ………….….................... ≤15m AWG26 HDMI standard cable
TX Max working current ………………………...………………………….................... 350mA
RX Max working current ……………...………...………………………….................... 200mA
Power adapter format …................. Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..………...……….…………...................… (-15 to +55℃)
Operating Humidity range ….………..….….................… 5% to 90%RH (No Condensation)

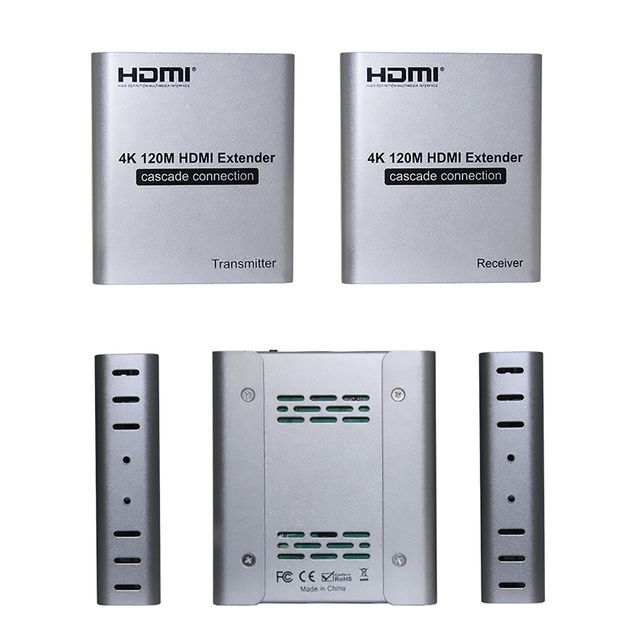

Dimension (L x W x H) …………….......…………………....................……… 94x84x24(mm)
TX Weight …………………………….........…..………………………………................... 223g
RX Weight ....................………………………...........……..……………………………… 223g
