3x1 HDMI Switch 1080P

No. # 3x1 HDMI Switch 1080P
SKU:

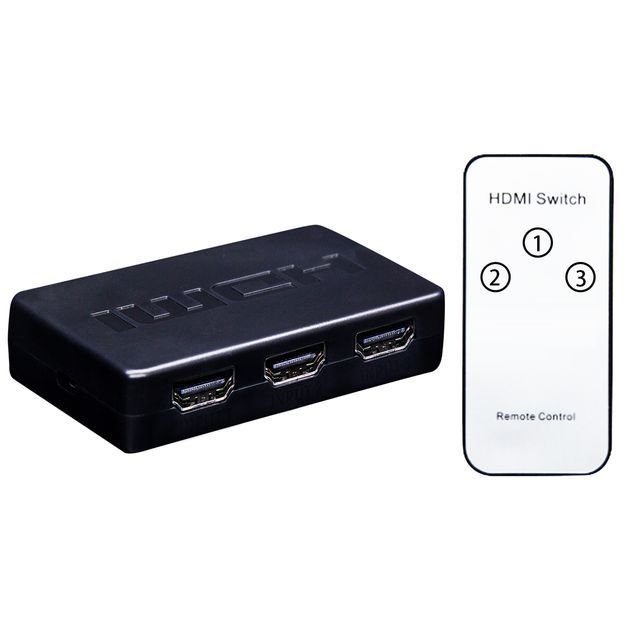

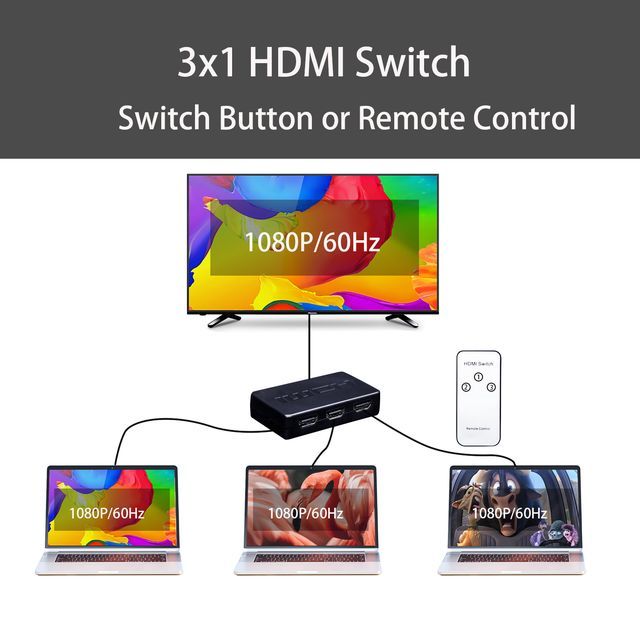

The 3- Port HDMI switch allows 3 HDMI ports to be switched to a single display terminal via remote control or buttons on unit. The switcher can be also placed at the end of a long HDMI cable to regenerate the HDMI signal.
This HDMI Switch supports video
0.0 (0 Reviews)
0 Sold
$19.00 $15.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • 3x1 HDMI Switch 1080P
  • 3x1 HDMI Switch 1080P
  • 3x1 HDMI Switch 1080P
  • 3x1 HDMI Switch 1080P
  • 3x1 HDMI Switch 1080P
  • 3x1 HDMI Switch 1080P
  • 3x1 HDMI Switch 1080P
  • 3x1 HDMI Switch 1080P
  • Description
Features
* Support 2.25 Gbps data rate for tmds clock up to 225MHz
* Support HDMI1.4a
* Support 3D
* Support highest video resolution 1080p/60Hz
* Support 8/10/12 bit deep color

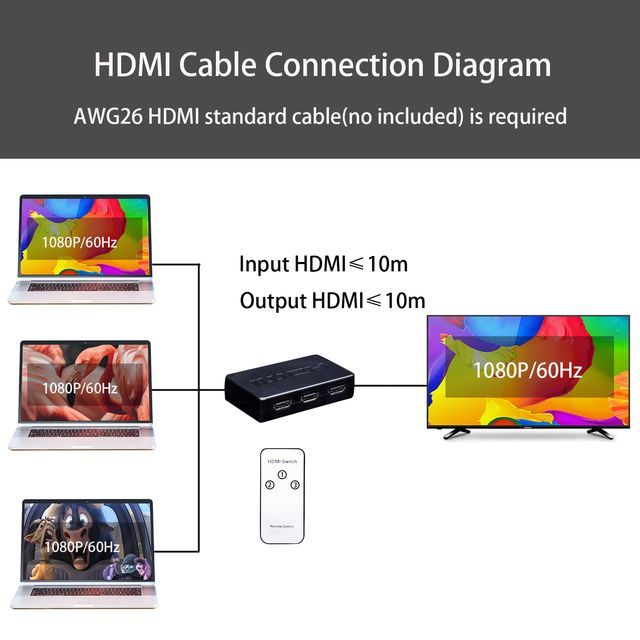

* Support AWG26 HDMI standard cable, Input up to 10 meters,output up to 10 meters

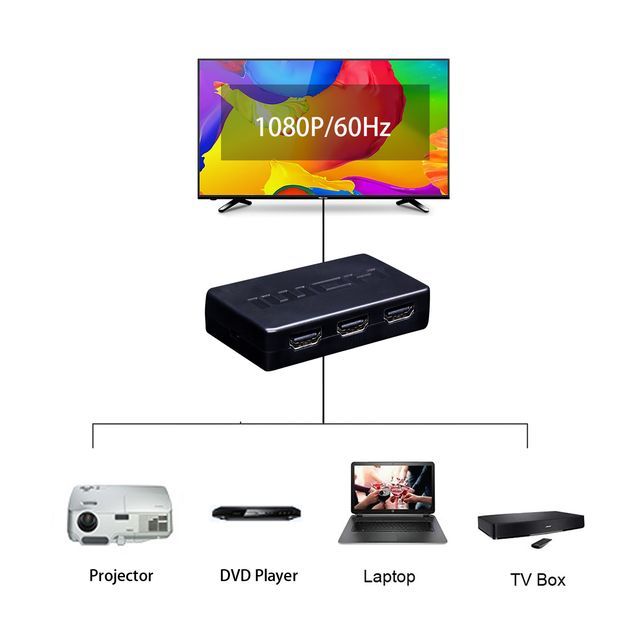

* Support single high definition display for multiple sources, such as DVD Players and Satellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes

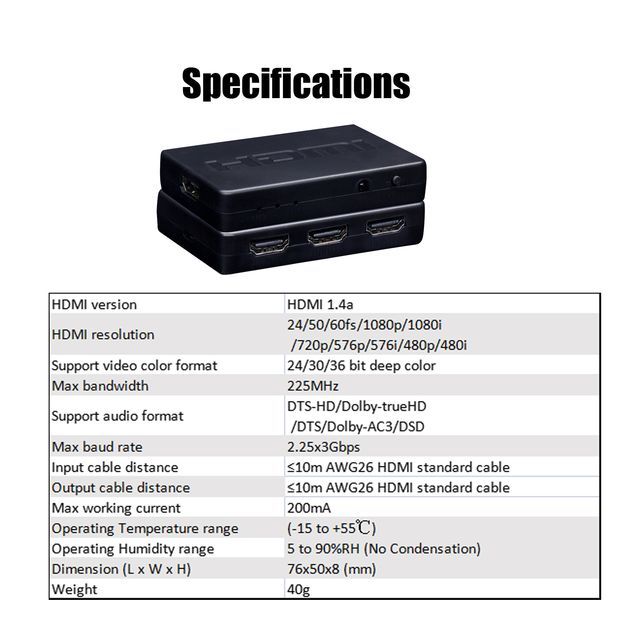

Specifications:
HDMI version …….………...............HDMI 1.4a
HDMI resolution ……...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format .……....24/30/36 bit deep color
Max bandwidth…………………........….225MHz
Support audio format…..DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max baud rate……………....….......2.25x3Gbps
Input cable distance..…... ….......≤10m AWG26 HDMI standard cable
Output cable distance…………...≤10m AWG26 HDMI standard cable
Max working current…………….…….....200mA
Operating Temperature range…. (-15 to +55℃)
Operating Humidity range………....5 to 90%RH (No Condensation)
Dimension (L x W x H).....…........76x50x8 (mm)
Weight…..…………...…….…............………40g
