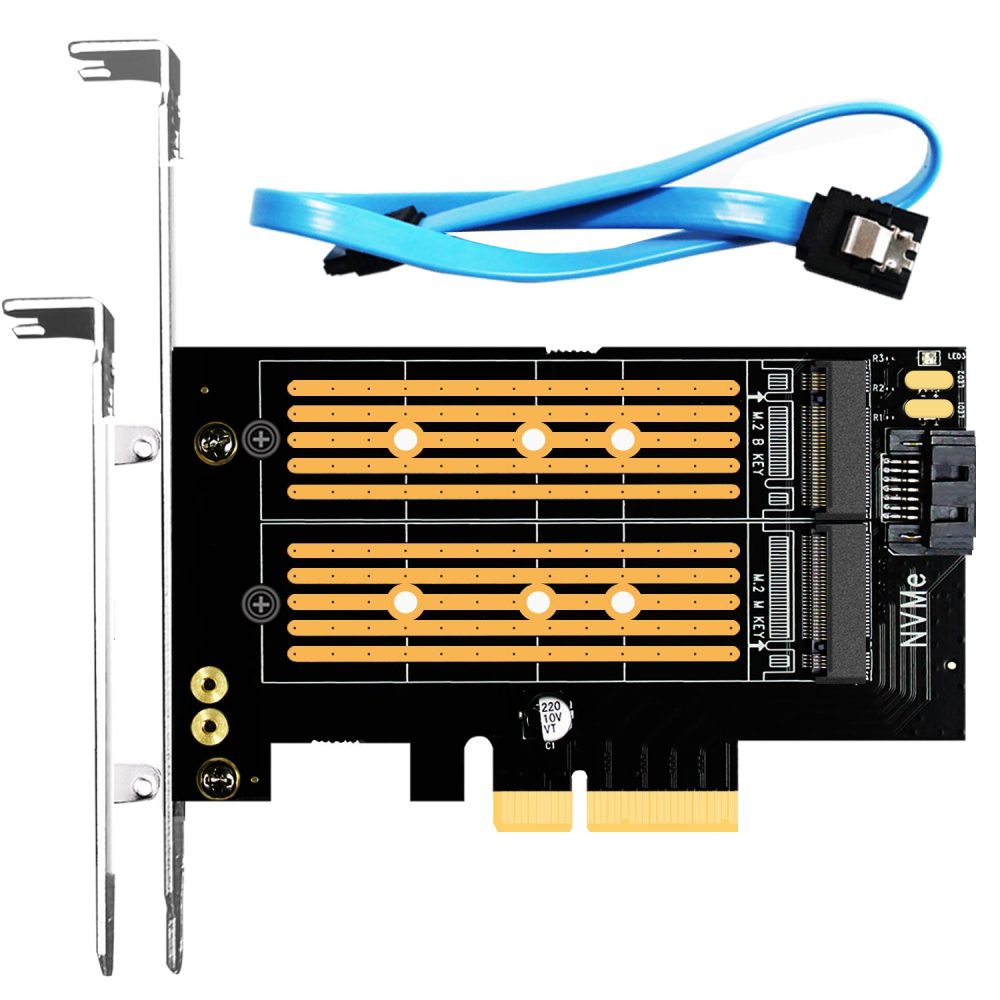

2 in 1 M.2 PCIE 4.0 Adapter Add-on Card for M.2 PCIE (NVME/AHCI) SSD and M.2 NGFF SATA SSD

2 in 1 M.2 Adapter Card

1. Supports M.2 PCIE NVME/AHCI SSD (Key-M), PCIE 3.0 X4 full speed support.
2. Supports M.2 SATA M.2 SSD (Key-B / B+M), SATA III 6 Gbps bandwidth

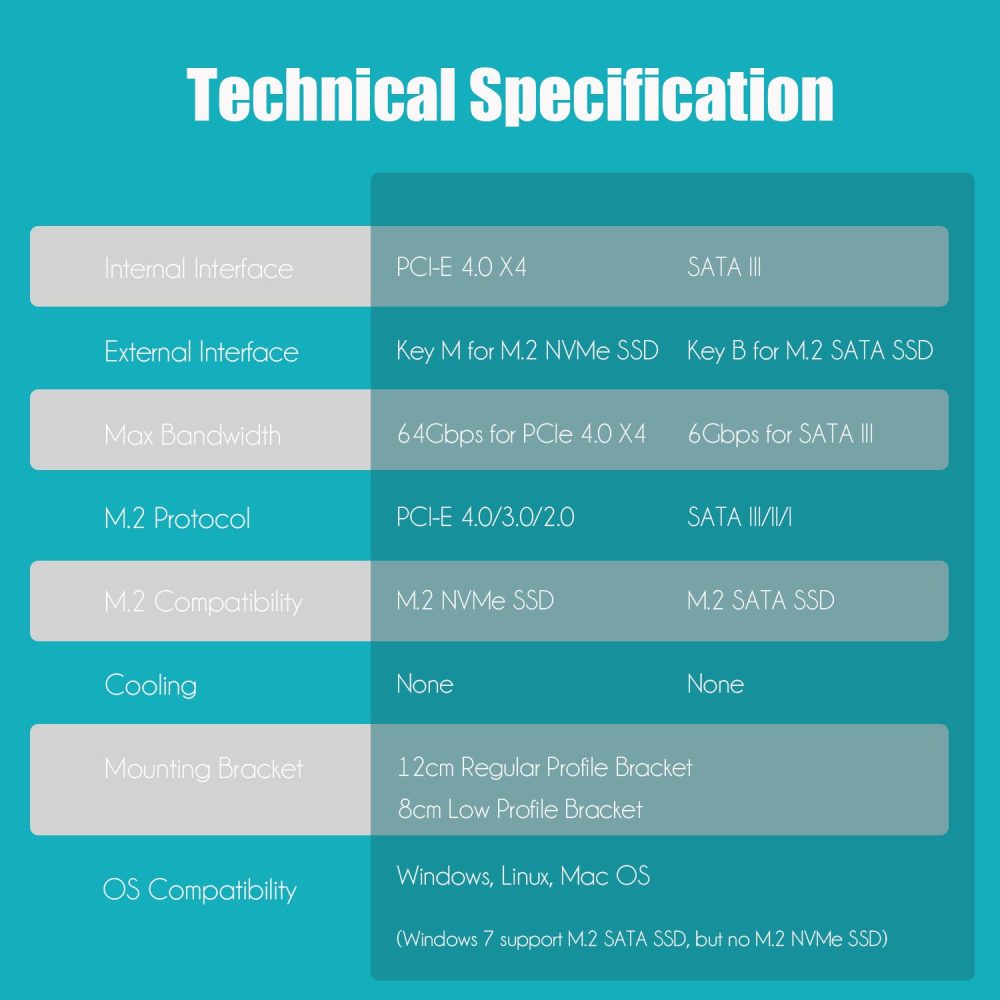

Features:

• Apply to 2280/2260/2242/2230mm M.2 SSD
• LED Indicator for SSD states
• PCIE 3.0 X4/X8/X16 lane installation
• Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard
• Supports any OS like Windows, Mac and Linux.
• Operating temperature range: -40 - 85 oC.
• PCIE power supply: 3.3V
• Full profile bracket
• Low-profile bracket

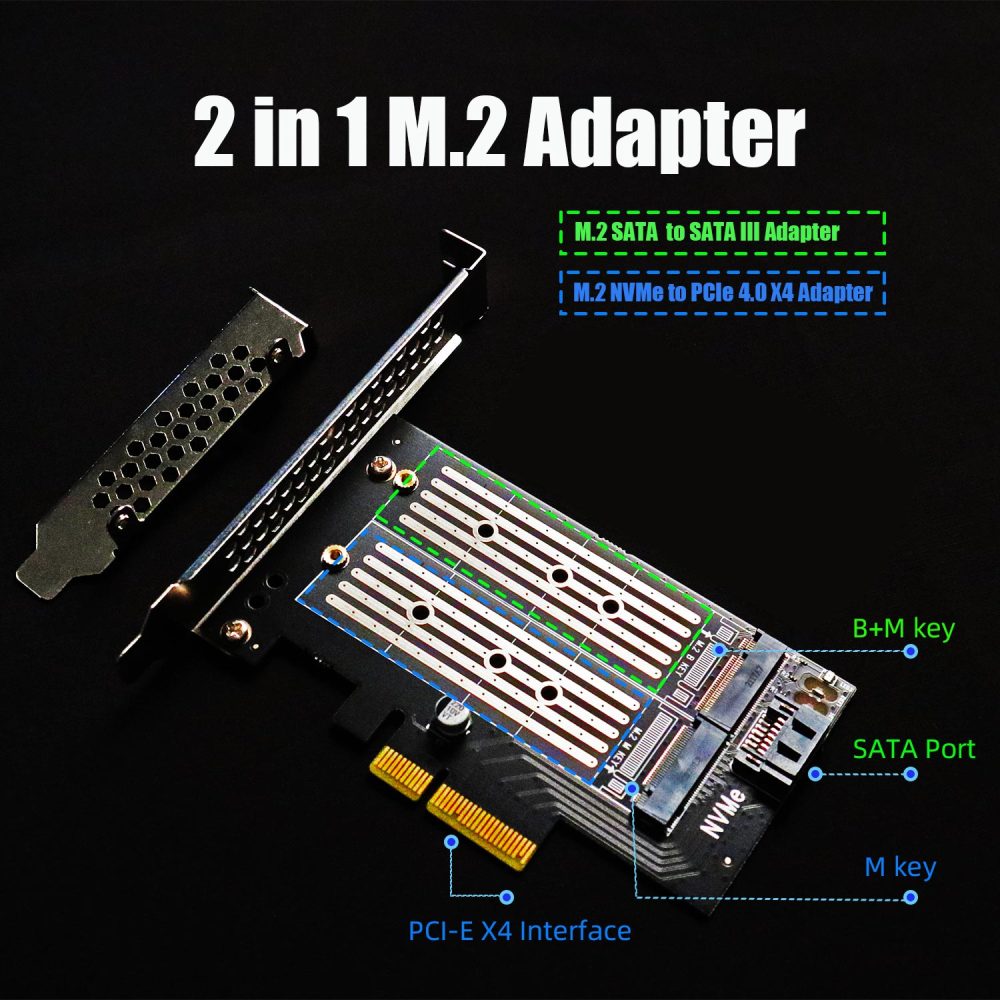

SATA Channel and PCIE Channel

1) (Blue Color) Upper slot for SATA M.2 to SATA III (6Gbps), need to connect with PC via SATA cable

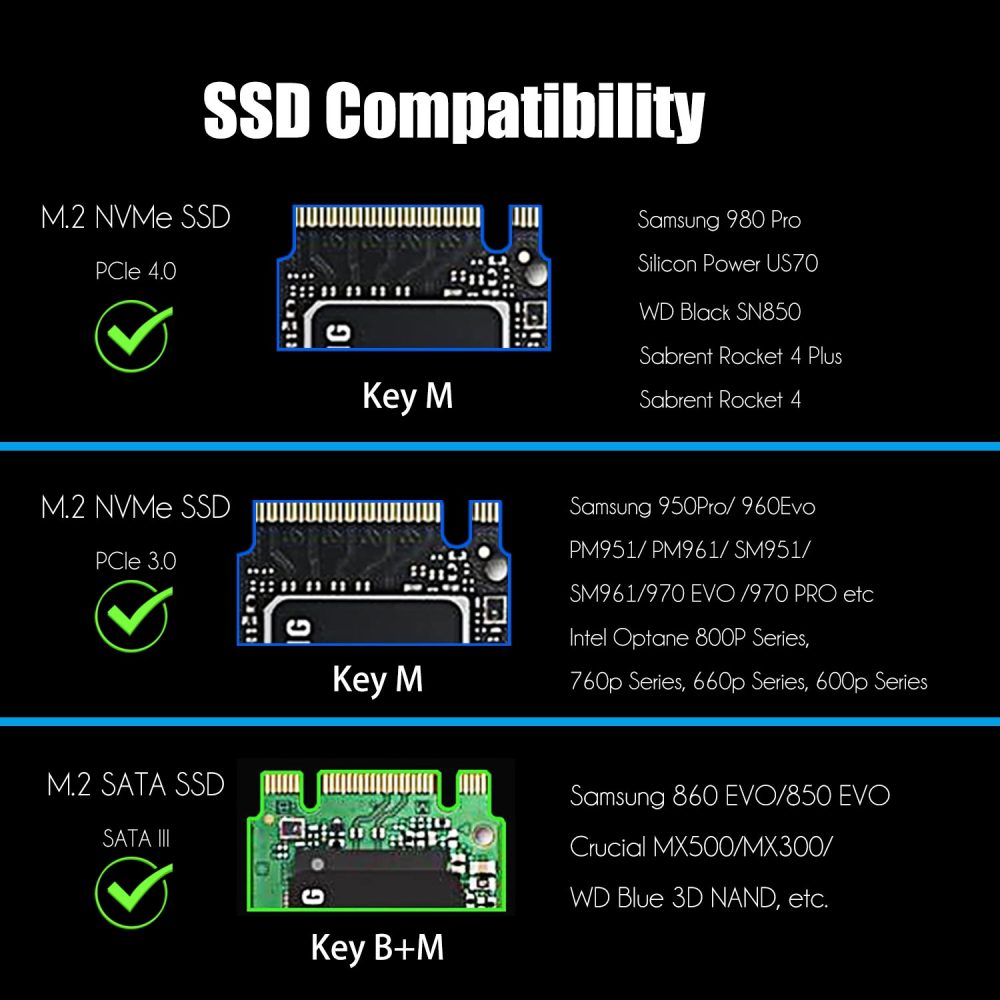

• Support M.2 SATA SSD (Incomplete List) :
• Samsung 860 EVO/850 EVO/Crucial MX500/Crucial MX300/WD Blue 3D NAND, etc.

2) (Green Color) Bottom slot for NVME M.2 to PCIE 3.0x4 (32Gbps), no need SATA cable

• Support 22x80 size PCIe NVMe/AHCI SSD (Incomplete List) :
• Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/970 EVO /970 PRO and other M.2 SSDs with PCI-E (M-KEY) Interface Type.
• Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series

Compatibility and Technical Support

• GLOTRENDS NVMe adapter card is apply to all kinds of M.2 NVMe/AHCI SSD, and transparent to the operating system and no driver required.
• Supports any OS like Windows, Mac and Linux.
• Go to NVMe SSD manufacture website for driver installation if your PC can not recognize M.2 NVMe SSD.
• Attention should be paid to win7 and Windows Server 2008 R2, which need addtional driver installation for NVMe SSD.
• OS booting from NVMe SSD is a little complicated, Win10 is recommend.

Prerequisites include:

1. OS support NVMe (Native or additional driver);
2. 64-bit OS for UEFI support. Consult motherboard manufacture for installation steps.
