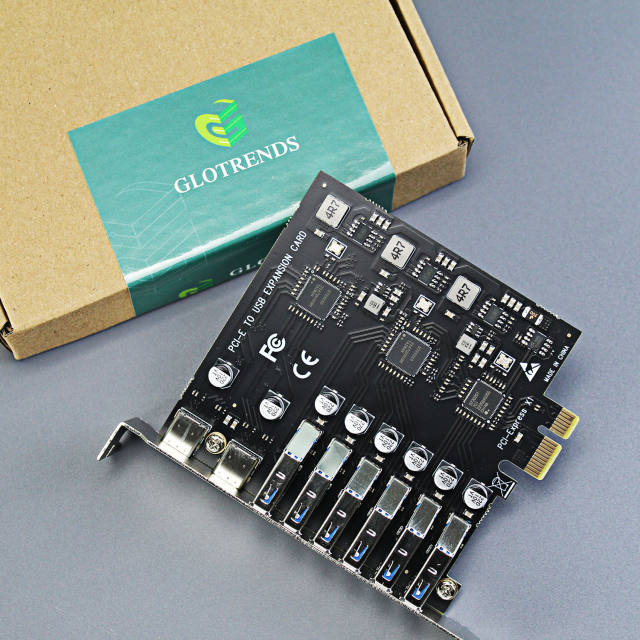

6 x USB-A + 2 x USB-C PCI-Express X1 Adapter Card
Accessing 6 x USB-A and 2 x USB-C devices at the same time, such as Keyboard, Mice, Speakers, KVM switch, USB HUB, USB flash drive, Printers, and other High Power Consumption USB 3.0 devices, etc.
Work with High Power Consumption USB 3.0 devices
Accessing 8 x USB 3.0 devices (Work at 5V/1A at max) at the same time, or 2 x USB 3.0 devices (Work at 5V/2A at max) at the same time, such as indusrial cameras, VR-Systems, USB 3.0 NVME enclosures, USB SATA HDD/SSD enclosures, live broadcast devices, USB 3.0 video adapters and USB 3.0 docking stations.
(Note: Not support fast charging, only support 5V/0.5A charging at max per port)
6 x USB-A Ports+ 2 x USB-C Ports share PCIe X1 Bandwidth
For PCIe 3.0 X1 slot, 8 x ports share 8Gbps bandwidth; for PCIe 2.0 X1 slot, 8 x ports share 4Gbps bandwidth. Noted: to reach USB 3.0 5Gbps speed, make sure the USB device is USB 3.0 feature
Built in Self-Powered Technology
Powerd by PCI-Express 12V power supply, no need extra power supply
Based on VL805+NEC720210 chip solution
1) Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2
2) Need to install driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit)
3) Plug and Play on most Linux kernels
4) Not support Mac OS
Installation
PCI-Express X1 slot installation
Mounting Bracket
12cm Regular profile bracket for ATX case.
Noted: not include 8cm Low profile bracket.
Driver Download
